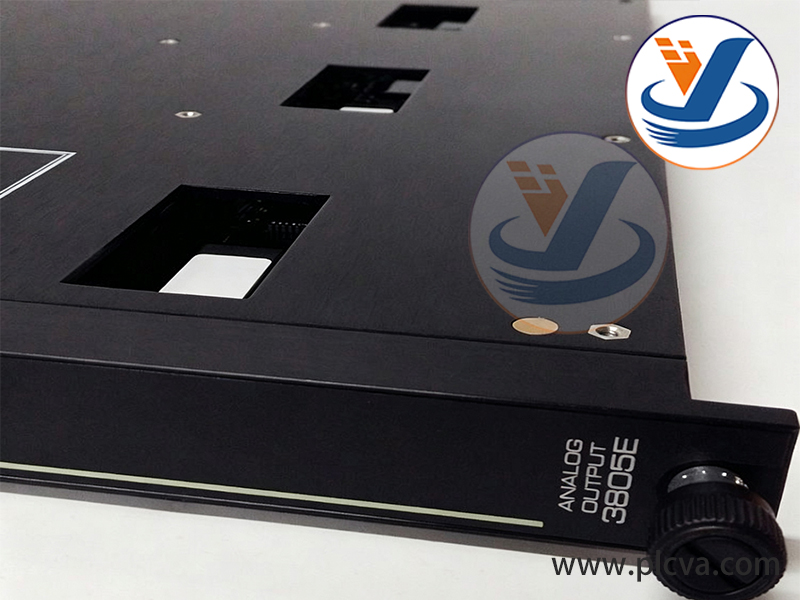

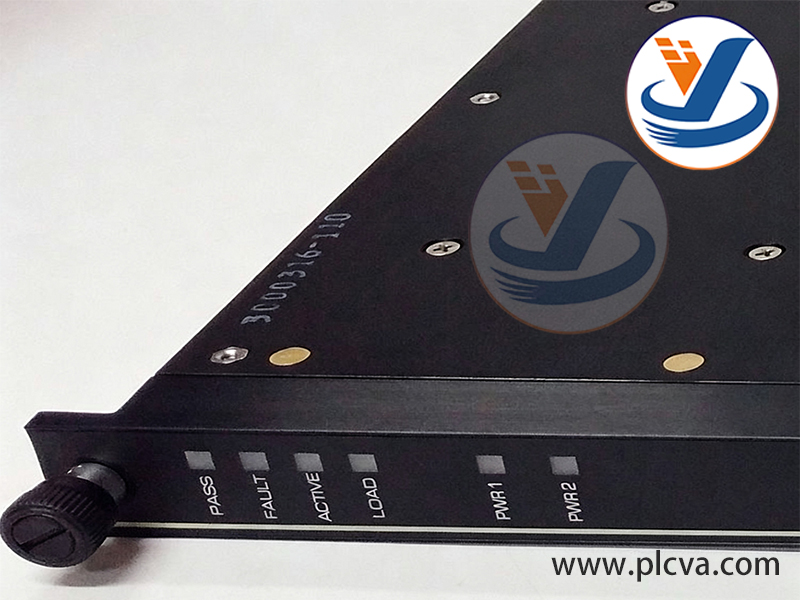

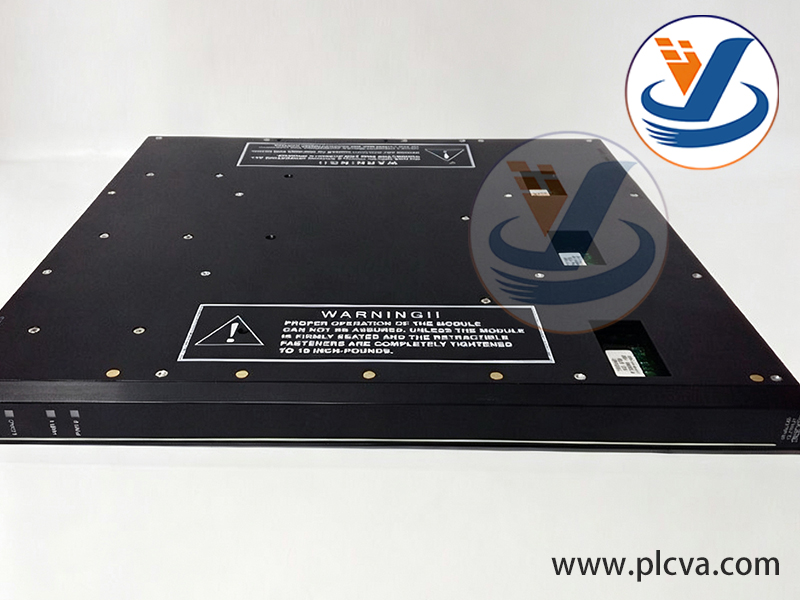

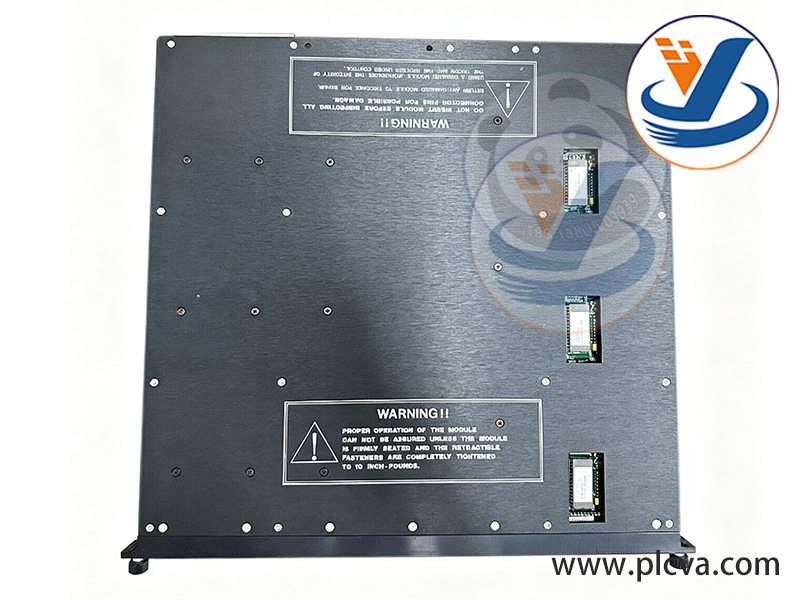

Functions of TRICONEX 3805E Analog Output Module

1. Output standard analog regulating signals to drive field modulating instruments As an analog output card for Tricon TMR triple modular redundant SIS safety instrumented systems, it receives calculated control commands from the MP3009X main processor and outputs industry-standard 4–20mA analog current signals to regulate continuous field equipment such as control valves, pneumatic actuators, variable frequency drives and valve positioners, realizing safe regulation of process pressure, temperature, liquid level and flow rate.
2. Triple Modular Redundant (TMR) fault-tolerant hardware architecture The module integrates three independent signal conversion and output circuits. The three channels generate identical analog output values synchronously and compare output signals via hardware in real time. If one channel fails or the circuit has open/short faults, the other two channels maintain stable output without signal jump or runaway, complying with SIL3 fault tolerance standards.
3. Full-range online fault diagnosis for output loops It monitors every 4–20mA output load loop in real time, automatically detecting open circuits, short circuits, load failures, abnormal loop impedance, signal over-range and other faults. It generates fault alarms and Sequence of Events (SOE) logs uploaded to HMIs and engineering workstations for rapid troubleshooting of loops and field instruments.
4. Electrical isolation and anti-interference protection Built-in isolation circuits isolate ground loops and electromagnetic interference between the main control rack and field instruments, suppress surges and harmonic noise from the field side, and protect the CPU host and internal module circuits, suitable for high-interference industrial environments including chemical and oil & gas facilities.
5. Fail-Safe de-energized protection logic Designed with fail-safe principles, all outputs will automatically switch to a pre-defined safe value (typically 0mA for full valve closure) in case of module failure, severe signal mismatch among three channels or communication loss, preventing hazardous process conditions such as over-temperature and over-pressure and meeting process safety specifications.
6. Support online hot-swap maintenance The module can be replaced individually without system shutdown. Other analog output channels remain unaffected during replacement, and the whole SIS system operates continuously without full plant shutdown for maintenance.
7. High-precision stable analog signal output Equipped with high-precision D/A conversion circuits, the module delivers signals with excellent linearity and low temperature drift. It provides accurate continuous regulating signals to guarantee control precision of safety regulating loops and meet the requirements of precise process interlock regulation.
