TRICONEX

1.Term-by-Term Explanation

1. TRICONEX: Brand name, commonly translated as Kangjisen, a high-end triple modular redundant SIS Safety Instrumented System brand originally under Invensys, now owned by Schneider Electric, dedicated to safety control for high-risk processes.
2. Emp II: Abbreviation of Enhanced Multi-processor Generation II, the 2nd generation upgraded multi-processor series of Tricon, featuring improved computing performance, memory capacity, bus bandwidth and fault diagnosis functions compared with Gen I.

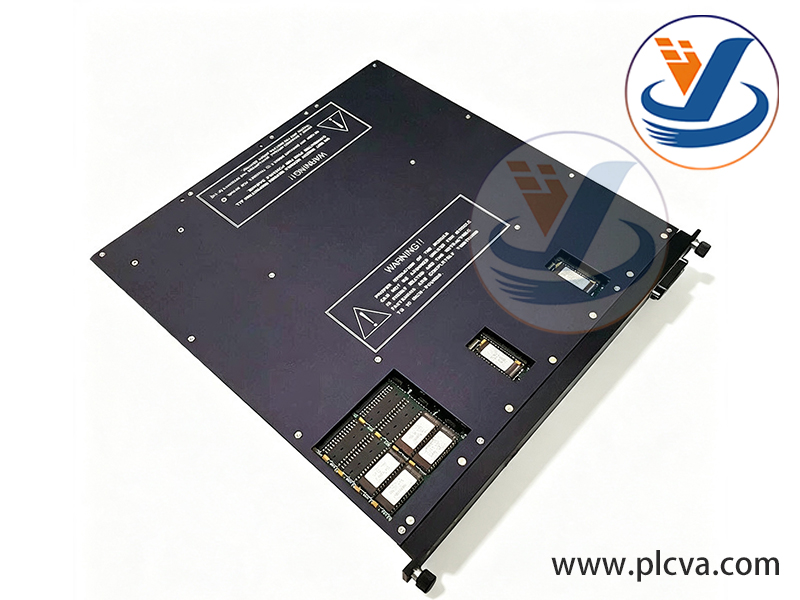

3. 3005: Original factory hardware model code, dedicated main processor part number for Tricon v9.6 and later systems, matching part No.7400120-500.
4. Processor Module: Standard industrial automation term, meaning main CPU module, the core computing unit of the entire Tricon safety system.

Supplementary Architecture Note: Every Tricon system requires 3 pieces of 3005 Emp II processor modules installed in the main chassis, adopting TMR Triple Modular Redundant 2-out-of-3 voting architecture. Three CPUs perform synchronous independent calculation; single-point hardware faults will not interrupt system operation.

2. Core Main Purposes (The “Brain” of Safety Control System)

1. High-speed operation of safety control logic (core function) Equipped with 32-bit Motorola MPC860 microprocessors, it parallel-executes user-programmed safety logic including ESD Emergency Shutdown, Fire & Gas (F&G) monitoring, HIPPS high-integrity pressure protection, boiler furnace interlock control. It conducts real-time logic calculation on DI digital input and AI analog acquisition signals, then sends interlock trip and alarm output commands to DO digital output modules.
2. Triple redundant data synchronization & 2oo3 hardware voting Built-in 25Mbps TriBus triple proprietary synchronous bus enables real-time data exchange among three 3005 processors, with automatic hardware 2-out-of-3 voting mechanism. If one CPU, memory or bus channel fails, the remaining two intact modules fully take over all control tasks to eliminate spurious trips or fail-to-trip risks, fully compliant with IEC 61508 SIL3 top-tier process safety standards.
3. Global system bus scheduling & IO management It uniformly controls all rack-mounted IO modules (DI/DO/AI/AO), CIM communication modules and backplanes. It cyclically collects field process data, distributes output control commands, manages all IO channel diagnosis circuits, and real-time detects wire breakage, short circuit and offline module faults.
4. Global fault diagnosis & SOE event storage Onboard large-capacity flash memory and battery-backed SRAM completely record system faults, interlock actions, channel abnormalities and module hot-swap events, generating millisecond-level Sequence of Events (SOE) logs. It supports local RS232 diagnostic port and Ethernet port to upload fault logs to upper DCS/SCADA platforms.
5. Core scheduling gateway for cross-system communication It coordinates all external protocol interactions of CIM communication modules (Modbus TCP/RTU, Industrial Ethernet, OPC), handles bidirectional data exchange between SIS system and DCS, PLC, local operator stations and MES platforms, and electrically isolates safety zones from non-safety plant monitoring zones.
6. Hot-swap redundant maintenance without process shutdown Single faulty 3005 processor can be replaced online without system power-off; the other two CPUs maintain bumpless interlock operation during replacement, avoiding costly production shutdowns for high-risk plants.
7. Program storage, download and system configuration 6MB Flash memory permanently stores safety control programs, while 16MB DRAM runs active logic. It supports logic download, online modification and program verification via TriStation configuration software, with built-in anti-tampering program validation functions.

3. Applicable Application Scenarios

Scenario 1: Petrochemical Refineries (Core Application)

ESD Emergency Shutdown Systems for oil refineries, ethylene plants, hydrogenation and catalytic reforming units. As the SIS main controller, the 3005 Emp II monitors over-temperature and over-pressure interlocks of towers, heating furnaces and reactors, instantly triggering feed cut-off and fuel gas shutoff upon abnormal conditions to prevent explosion and fire hazards.

Scenario 2: Oil & Gas Stations, LNG Liquefaction Plants & Long-distance Pipelines

Fire & Gas (F&G) safety systems for offshore oil platforms, onshore gathering stations, pipeline compressor stations and LNG tank yards. Adapted to explosion-proof, high-vibration and wide-temperature outdoor environments, it controls wellhead block valves, interlock shutdown for combustible gas leakage and HIPPS overpressure protection for high-pressure pipelines.

Scenario 3: Coal Chemical, Ammonia & Methanol High-temperature High-pressure Units

Core safety controller for gasifiers, synthesis towers and ammonia synthesis sections. It executes emergency cut-off logic for oxygen and gasification agents to suppress deflagration and high-pressure leakage catastrophic safety risks.

Scenario 4: Furnace Safety Supervision System (FSSS) for Thermal Power & Waste Incineration Plants

Core computing unit for boiler ignition, furnace purge and gas/oil fuel cut-off interlocks, preventing furnace flashback and deflagration, complying with mandatory SIL3 safety codes for power industries.

Scenario 5: Explosion-proof Reaction Workshops in Fine & Pharmaceutical Chemical Industry

Safety interlock systems for high-risk reactors involving nitration, chlorination and oxidation processes. It real-time monitors temperature, pressure and liquid level, automatically cutting raw material feed, stopping stirring and activating pressure relief protection under abnormal working conditions.

Scenario 6: High-pressure Production Lines for Fertilizer, Rubber & Chemical Fiber

Safety protection for high-pressure reactors and steam pipe networks, calculating linkage logic for unit shutdown and pressure relief valve opening.

Scenario 7: Overseas Complete Oil & Gas / Chemical Equipment Export Projects

Standard processor for global Tricon v9/v10 systems with universal spare part numbers, compatible with explosion-proof and safety certification standards worldwide, facilitating spare part maintenance for overseas factories.

Scenario 8: Anti-surge & Large Compressor Unit Protection Systems

Main controller for TS3000 large compressors in refineries and chemical plants. It real-time calculates anti-surge control lines and dynamically adjusts anti-surge valve opening to guarantee stable and safe unit operation.

4. Supplementary Key Hardware & Safety Features

1. Safety Certifications: Compliant with IEC 61508 SIL3, IEC 61511 process safety standards, TUV and UL industrial explosion-proof certifications;
2. Hardware Specs: 32-bit MPC860 50MHz microprocessor, 16MB DRAM, 32KB battery-backed SRAM, 6MB program flash memory;
3. Bus Performance: TriBus triple redundant synchronous bus with 25Mbps transmission rate and 32-bit CRC data check to eliminate transmission errors;
4. Interfaces: Optically isolated RS232 diagnostic serial port and RJ45 Ethernet port, galvanic isolation prevents surge damage to core computing units from external circuits;
5. Environmental Adaptability: Industrial wide-temperature design, stable operation in control rooms and explosion-proof cabinets with extreme temperature and strong electromagnetic interference;
6. Architecture Compatibility: Only compatible with Tricon v9.6 and newer main chassis; three identical 3005 processors must be installed and operated simultaneously for a complete system.
