Functions of TRICONEX 9566-8* (7400150-370 / 3000540-380) Terminal Block Module

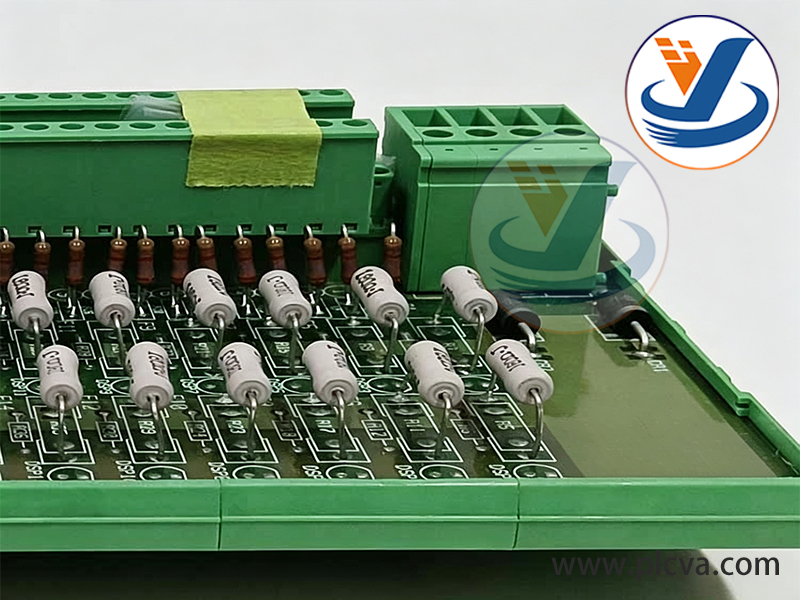

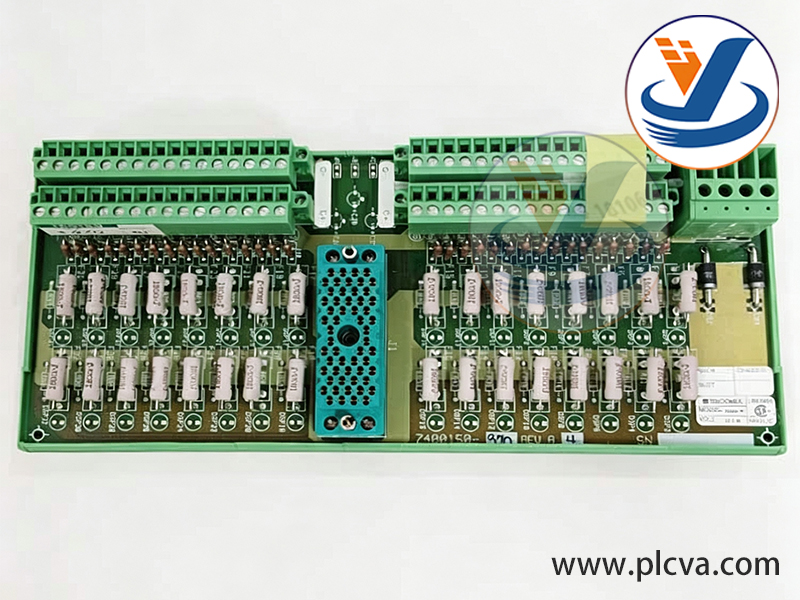

This assembly is a matching remote termination base board for Tricon TMR triple modular redundant SIS safety instrumented systems. 3000540-380 refers to the Phoenix terminal housing base, 7400150-370 is the PCB signal conditioning mainboard, and 9566-8* stands for the complete terminal panel model, exclusively matched with digital I/O modules.

1. Signal transfer wiring interface between rack I/O cards and field devices As an intermediate transition backplane, one side connects digital I/O cards (3503, 3604, etc.) inside the Tricon main chassis via dedicated D-type cables, while the other side connects field instruments including 24VDC switches, solenoid valves, limit switches and E-stop contacts through green Phoenix terminal blocks. It separates internal system wiring and long field cables to simplify field wiring construction.

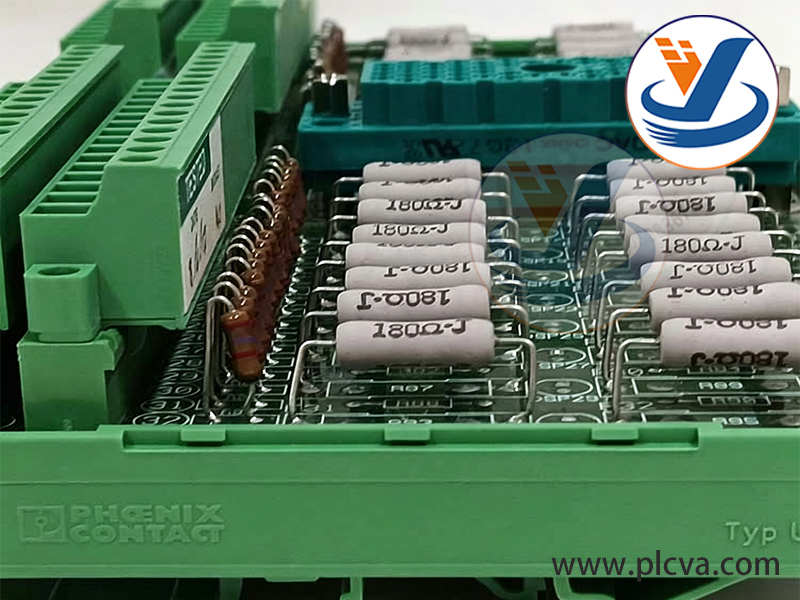

2. Built-in signal conditioning and current-limiting protection circuits Equipped with precision current-limiting resistors (standard 180Ω loops), freewheeling diodes and filter circuits, it limits current, absorbs surges and filters noise for 24VDC discrete signals. It suppresses back EMF generated by field inductive loads such as solenoid coils to prevent high voltage damage to rack I/O cards and improve signal transmission stability.
3. Triple Modular Redundant signal transmission matching SIL3 safety architecture Three independent signal circuits on the PCB correspond to the three TMR channels of Tricon I/O cards, transmitting signals synchronously in parallel. If one wiring branch suffers short or open circuit, only that single channel is isolated while the other two channels maintain normal signal exchange, avoiding system misjudgment or spurious actions and complying with IEC61508 SIL3 safety integrity level standards.
4. Real-time fault diagnosis sampling for field loops On-board sampling circuits continuously monitor each field wiring channel for open circuits, shorted loads, loose terminals and cable aging. It feeds back loop abnormality signals to the main CPU, generates Sequence of Events (SOE) logs and fault alarms uploaded to HMIs and engineering workstations for rapid field fault localization.
5. Electrical isolation to eliminate ground loop interference Electrical isolation is implemented between the terminal panel and backplane communication port to cut ground loops between field earth and cabinet system earth, eliminate industrial common-mode interference and harmonic noise, and prevent signal drift or false logic triggering.

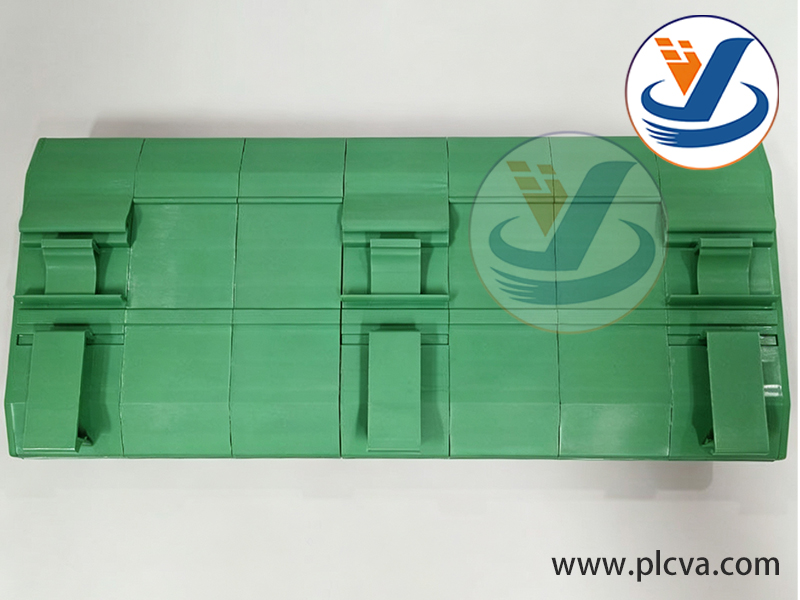

6. Modular DIN rail mounting for convenient maintenance It adopts standard Phoenix DIN rail snap-on installation and can be fixed directly on cabinet guide rails. Detachable terminal blocks allow maintenance without disconnecting rack-side cables; only the faulty field loop is isolated without affecting other channels or the whole SIS interlock system. The terminal panel can be replaced individually without system shutdown.
7. Standardized matching design compatible with remote I/O expansion The 9566-8 series terminal panels work with 9566 bus modules to support remote I/O deployment up to 7.5 miles away. They can be installed in local cabinets near process equipment to shorten field cables, reduce signal attenuation and interference for large distributed safety systems in oil & gas and chemical plants.
8. Fail-safe protection design Built-in current-limiting resistors automatically restrict surge current when field loops short-circuit to avoid burning rack I/O cards. The system can identify cable disconnection faults and sustain intact safety interlock logic to prevent failure of critical ESD/BMS safety actions.
