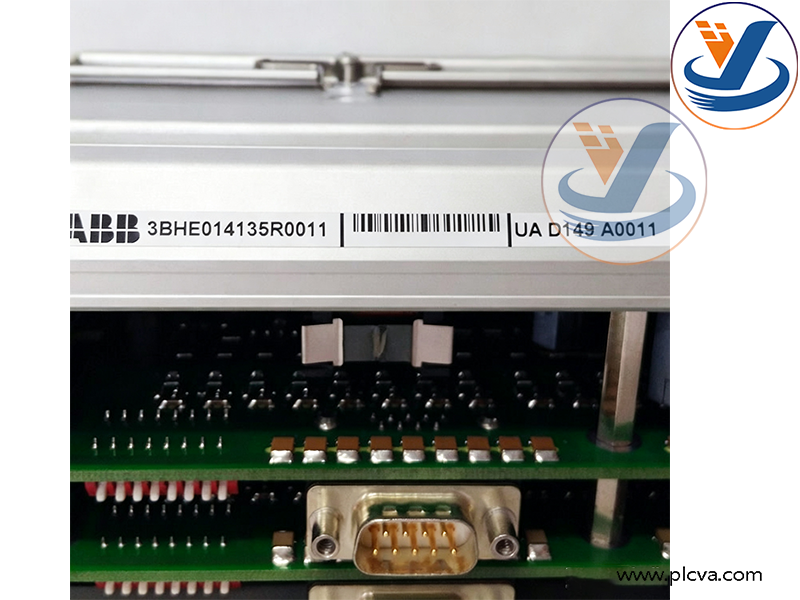

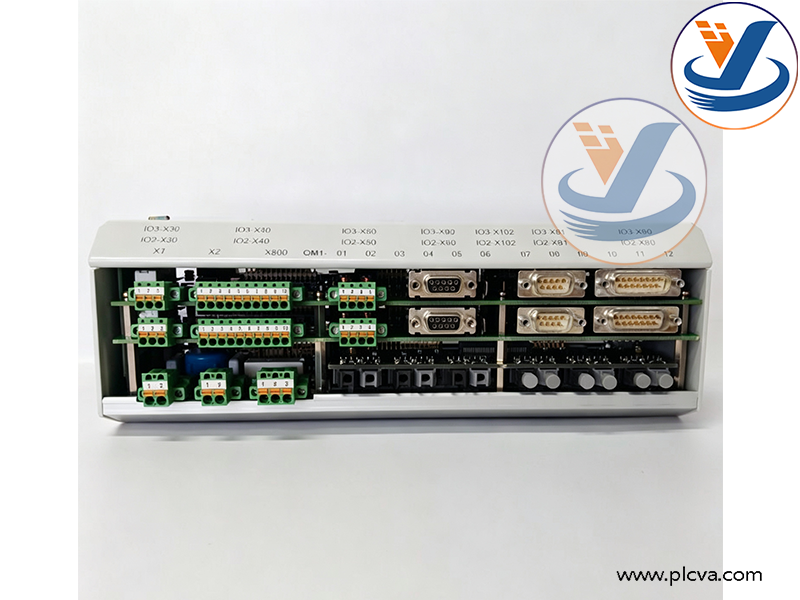

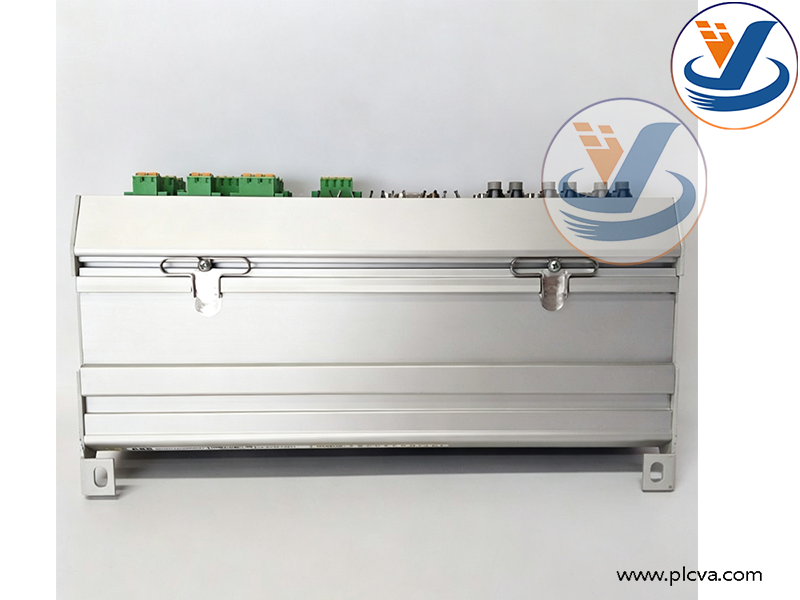

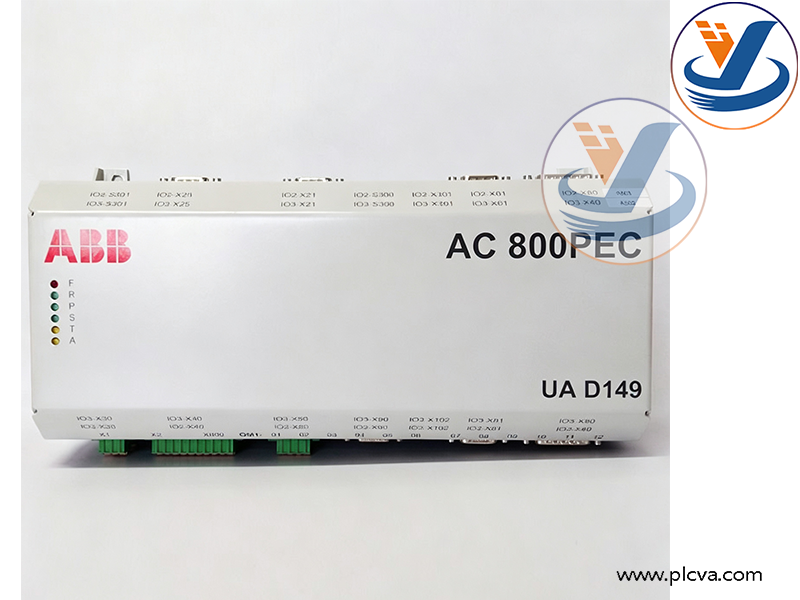

ABB UAD149A0011 3BHE014135R0011 Excitation system AC800PEC UA D149
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Model: ABB UAD149A0011, Order No. 3BHE014135R0011 (UA D149)
It belongs to the AC 800PEC high-speed power electronic control system. Officially named Combi I/O Module. It is the core I/O unit for UNITROL 5000 / UNITROL 6000 static excitation systems for generators, operating together with AC800PEC main controller (PPD539).
Position: High-speed signal acquisition & pulse interface module dedicated to excitation systems, not a standalone CPU controller.
2. Main Functions
- High-speed combined I/O unit for AC800PEC controller, collecting analog and digital signals including generator PT/CT voltage, current, excitation current and rotational speed.
- Receives calculation commands from main controller and outputs thyristor firing pulse signals to drive excitation rectifier bridges.
- Integrated multi-channel high-speed analog inputs, digital I/O and pulse interfaces to meet microsecond-level timing requirements of excitation closed-loop control.
- On-board hardware signal conditioning, overvoltage/overcurrent signal limiting, wire break detection and channel self-diagnosis.
- Exchanges real-time data with PPD539A controller via internal high-speed bus, supporting AVR voltage regulation, PSS power system stabilizer and various excitation limit & protection loops.
- Supports stacked module expansion to suit excitation equipment for generators of different capacities.
- Uploads channel status and fault information to upper System 800xA monitoring system for alarms, waveform recording and event logging.
3. Applications
- Matched with ABB UNITROL 5000 / UNITROL 6000 static excitation systems.
- Excitation control equipment for thermal, hydro and gas turbine synchronous generators.
- Spare part replacement and retrofit projects for legacy excitation systems in power plants.
- Excitation control of large synchronous motors and synchronous condensers.
- High-speed signal acquisition unit for high-power converters, SVG and drive devices built on AC 800PEC platform.
