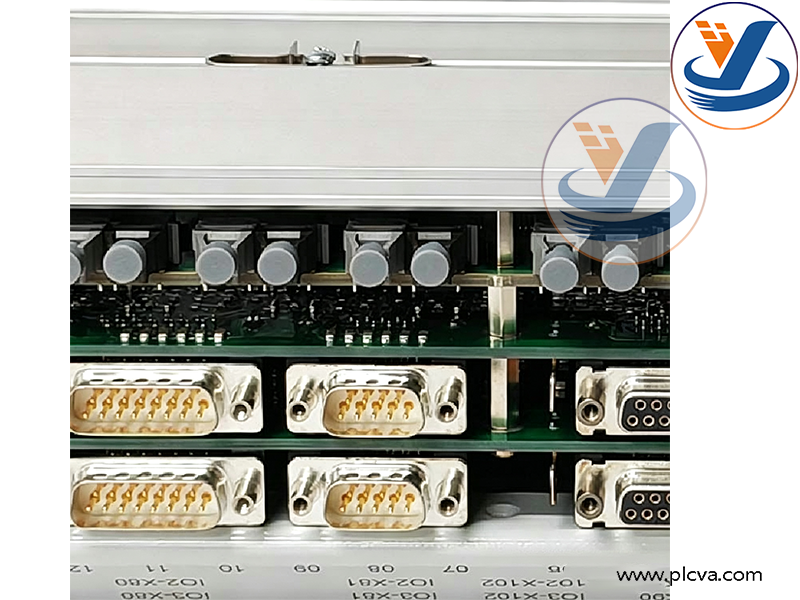

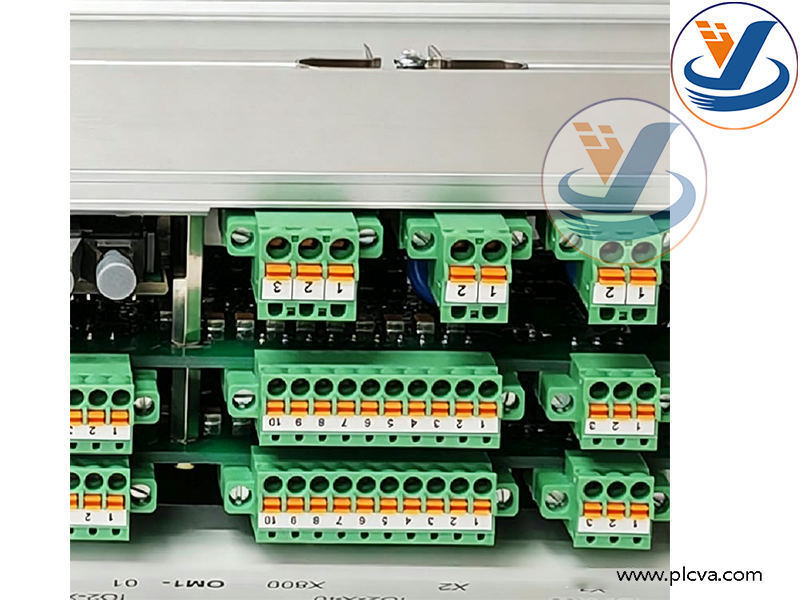

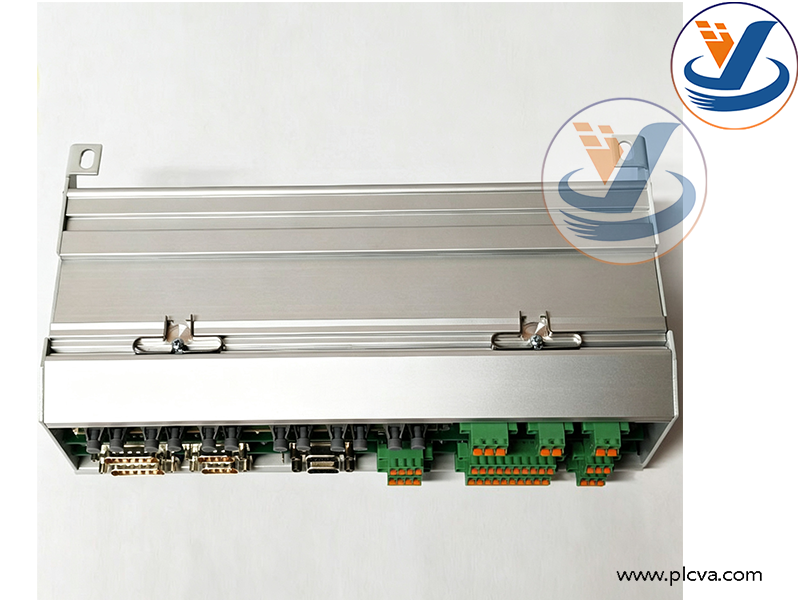

ABB UAD155A0111 3BHE029110R0111 AC 800PEC Excitation control system module UA D155 A011

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

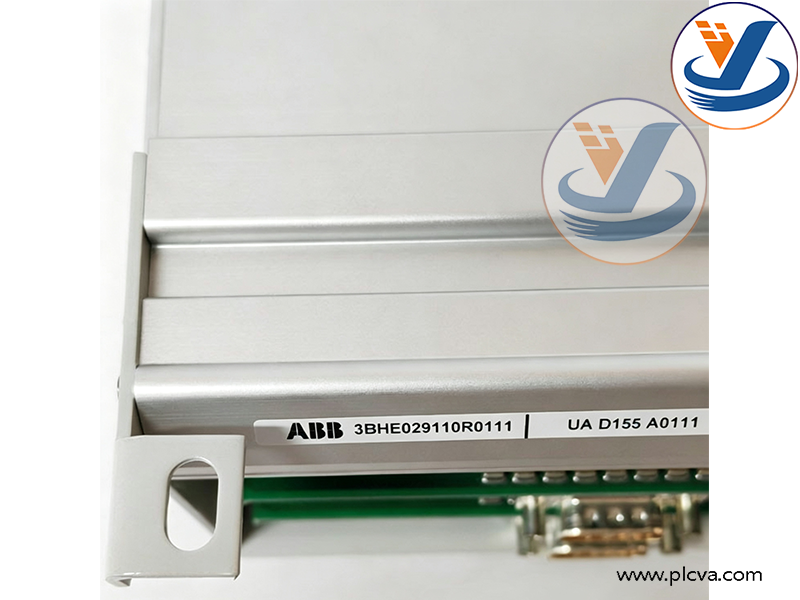

Model: ABB UAD155A0111, Order No. 3BHE029110R0111 (UA D155 A011)

It belongs to the AC 800PEC high-speed power electronic control system. It is the Combi I/O signal interface module for UNITROL 6000 static excitation systems for generators, working with AC800PEC main controller PPD539. It is an upgraded variant of UAD149A0011, designed for the new-generation UNITROL excitation platform.

Position: High-speed acquisition & pulse drive I/O board dedicated to excitation systems, not a standalone CPU controller.

2. Main Functions

High-speed combined I/O unit for AC800PEC main controller, collecting real-time field signals including generator PT voltage, CT current, excitation current, rotational speed and digital signals.
Receives calculation commands from PPD539 controller and outputs thyristor firing pulses to drive excitation rectifier bridges for AVR automatic voltage regulation.
Equipped with multi-channel high-speed analog inputs, digital I/O and pulse interfaces to meet microsecond-level timing requirements for excitation closed-loop control.
On-board hardware signal conditioning, wire break detection, signal limiting and channel self-diagnosis, providing comprehensive excitation fault monitoring.
Exchanges real-time data with AC800PEC main controller via backplane high-speed bus, supporting AVR voltage regulation, PSS power system stabilizer and multiple excitation limit & protection loops.
Supports multi-module expansion to configure signal channels flexibly according to generator capacity.
Uploads channel faults, operating status and alarm information to System 800xA monitoring platform for event logging and fault waveform recording.

3. Applications

Matched with ABB UNITROL 6000 static excitation control systems.
Core I/O component in excitation cabinets for thermal, hydro and gas turbine synchronous generators.
Retrofit and spare part replacement projects for legacy UNITROL excitation systems in power plants.
Excitation control equipment for synchronous condensers and large synchronous motors.
High-speed signal acquisition unit for high-power converters and SVG built on AC800PEC platform.
