TRICONEX

1. TRICONEX: Brand name, commonly translated as Kangjisen, a safety instrument system brand owned by Invensys, specializing in Tricon triple modular redundant fault-tolerant safety control systems (SIS).
2. CIM: Abbreviation of the module model, full expansion: Communication Interface Module.
3. 3211S2: Hardware part number
   • 3211: Basic hardware series code
   • S2: 2nd revised hardware version, with improved bus anti-interference capability, transmission speed and fault diagnosis functions
4. Tricon Communication Module (Correct word is Module; “Model” in the original text is a typo): Dedicated communication module for Tricon control systems.

Standard Complete Official Names

Standard Full Chinese Name: Triconex CIM3211S2 Communication Interface Module for Tricon Triple Modular Redundant System

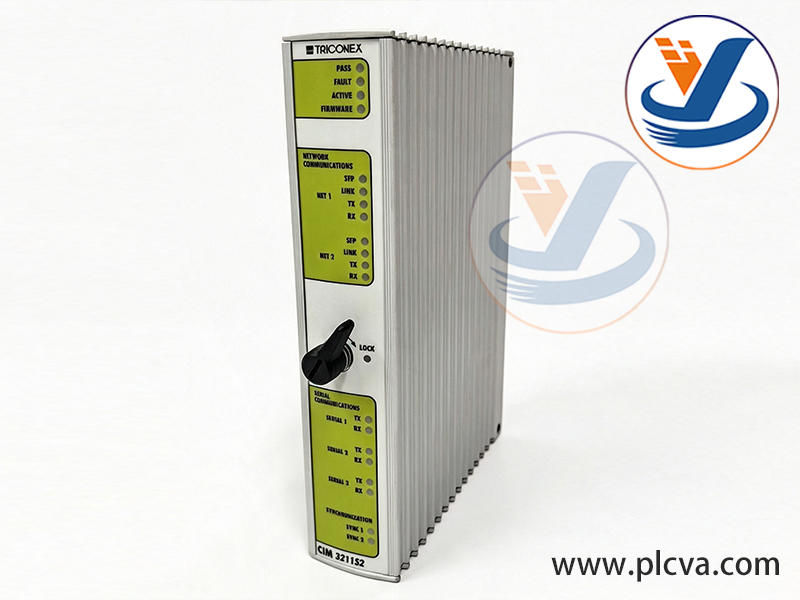

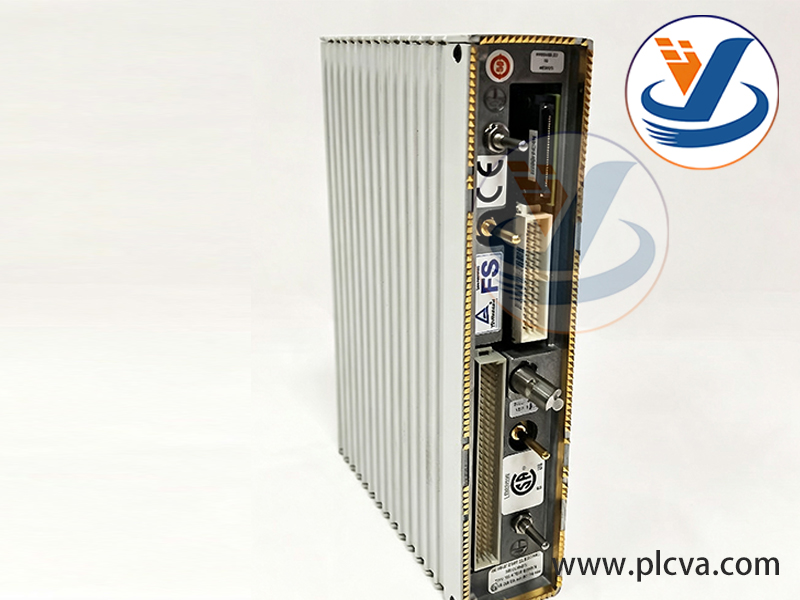

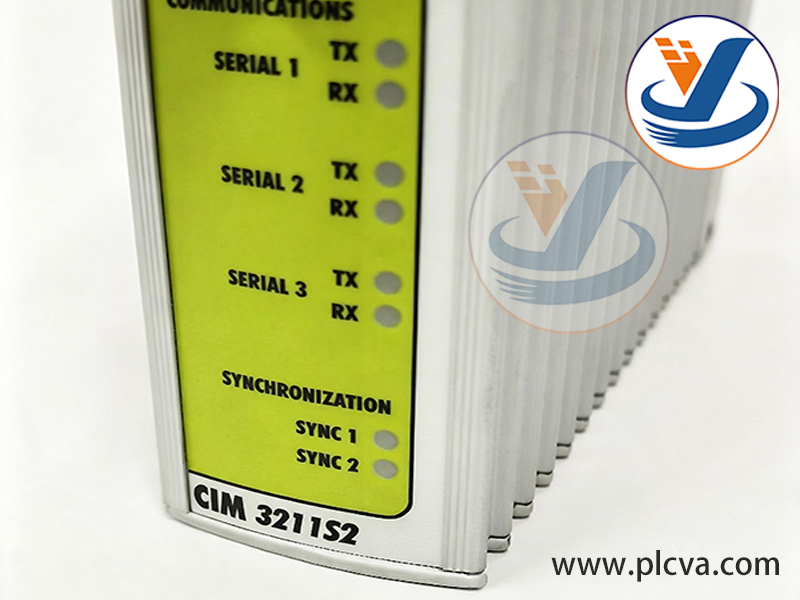

Standard Full English Name: TRICONEX CIM 3211S2 Tricon Communication Interface Module

2. Core Main Purposes

CIM 3211S2 acts as an external communication gateway module for the Tricon series triple modular fault-tolerant SIS Safety Instrumented System. Its core functions are divided into four categories:

1. Bidirectional data transfer and forwarding between internal and external systems It realizes bidirectional data reading and writing between the Tricon safety controller mainframe and third-party industrial host systems, PLCs, DCS and field intelligent equipment. It electrically isolates safety zones from non-safety zones to ensure independent and stable operation of the SIS system.
2. Conversion of multiple industrial communication protocols Natively supports mainstream industrial protocols including Modbus RTU, Modbus TCP, OPC, RS485, RS232 and industrial Ethernet. It converts Tricon’s proprietary internal triple redundant bus protocol into universal standard industrial protocols.
3. Triple redundant fault-tolerant communication Matched with Tricon’s 2-out-of-3 (2oo3) hardware redundant architecture. The internal communication circuits of the module adopt triple modular design; communication will not be interrupted by single-channel or single-circuit faults, complying with SIL3 safety level communication requirements.
4. Remote monitoring, alarm and event uploading Upload safety interlock alarms, system fault codes, process safety parameters and Sequence of Events (SOE) records to upper computers, SCADA systems and factory MES production management platforms. Meanwhile, it receives remote parameter query and manual reset commands issued by upper-level systems.

3. Applicable Application Scenarios

Scenario 1: Petrochemical & Refining Plants (Core Application Scenario)

Oil refineries, ethylene plants, hydrogenation units and long-distance oil & gas pipeline SIS safety interlock systems. The CIM module connects Tricon safety controllers to petrochemical DCS central control systems to realize intercommunication of process parameters and push pop-up notifications of safety interlock alarms.

Scenario 2: Oil & Gas Production / Natural Gas Processing Stations

Offshore platforms, onshore natural gas gathering stations and LNG liquefaction plants. The redundant communication design meets the demand of long-distance cross-system communication in explosion-proof areas, avoiding loss of interlock signals caused by pipeline overpressure or leakage.

Scenario 3: Power Plants, Coal Chemical Plants & High-Risk Fertilizer Production Units

Coal chemical gasifiers, boiler Furnace Safety Supervision Systems (FSSS) and ammonia synthesis plants. The SIS system connects to power plant DCS and plant-wide real-time monitoring platforms via CIM modules to guarantee uninterrupted safe communication for high-temperature and high-pressure hazardous processes.

Scenario 4: Fine Chemical & Pharmaceutical Chemical Explosion-Proof Production Lines

Production sections with flammable and explosive reaction kettles, oxidation and chlorination high-risk reactions. This SIL3 safety system supporting communication module realizes data synchronization between local plant operation stations and central control rooms.

Scenario 5: Plant-wide Integrated Intelligent Manufacturing Platform Connection

Factory MES production management systems, EMS energy management systems and equipment predictive maintenance platforms collect SIS safety data through CIM modules to realize unified visualization of plant-wide production and safety data.

Scenario 6: Complete Industrial Equipment Export Projects Overseas

Complete oil & gas and chemical equipment sets exported overseas are equipped with Tricon safety systems. The multi-protocol compatibility of CIM 3211S2 adapts to various European and American brand DCS/PLC systems abroad, reducing transformation costs for cross-brand system interconnection.

4. Supplementary Key Supporting Features

1. Safety Integrity Level: Compliant with IEC 61508 SIL3 and IEC 61511 process safety standards;
2. System Architecture Compatibility: Only compatible with Tricon v9 / v10 series triple redundant controller main racks;
3. Hardware Advantages: The S2 version optimizes EMC electromagnetic compatibility, suitable for industrial sites with strong electromagnetic interference such as high-power inverters and large motors;
4. Electrical Safety Isolation: Built-in electrical isolation circuit prevents third-party system faults and surge impact from transmitting to safety instrument controllers, avoiding accidental plant trip of safety systems.

Understand the lowest price, please contact via email: plcvarious@foxmail.com

More products: www.plcva.com

Many products are not yet on the shelves please contact us for more products.
