1. Full Product Designation

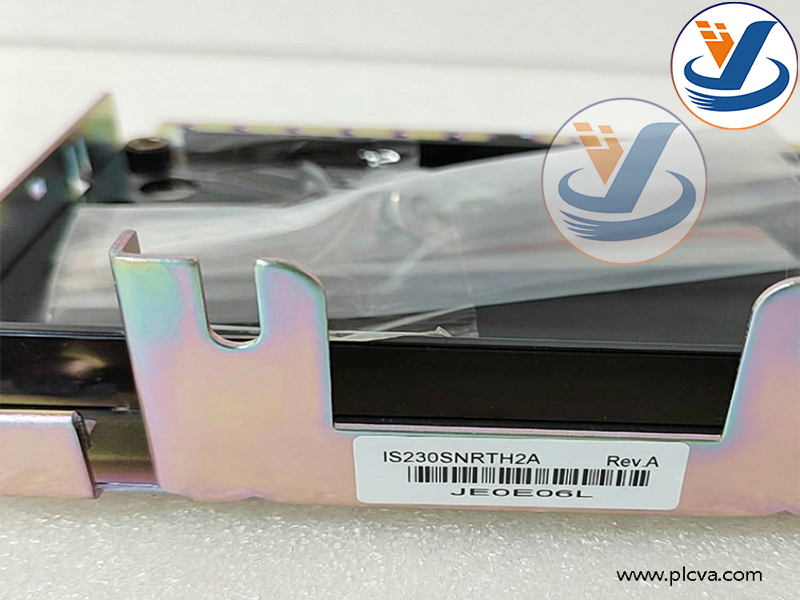

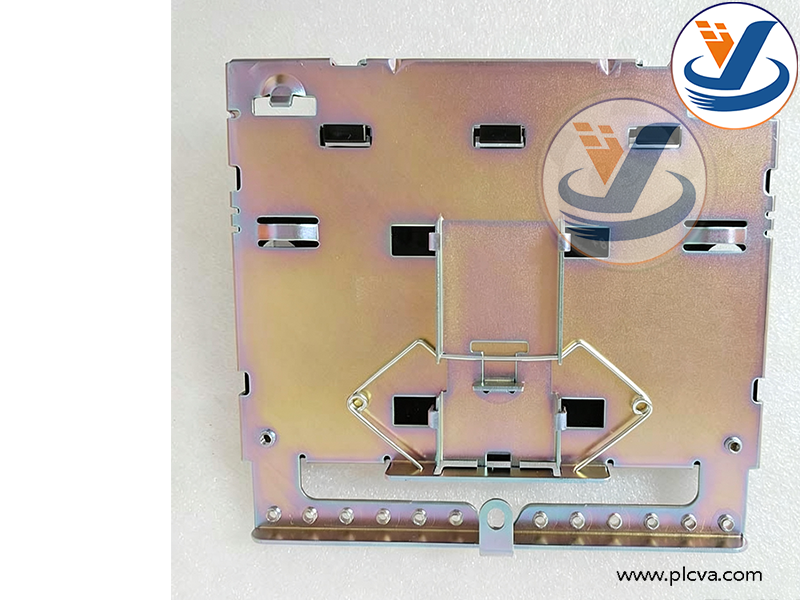

Full English Name: GE IS230SNRTH2A Base Module, Gas Turbine Control Systems

Model Breakdown:

• IS230: Hardware prefix for GE Mark VIe I/O Pack family, distributed I/O pack matching terminal base series
• SNRT: Functional code for Base Terminal unit
• H2A: Hardware revision variant code
• Base Module: Matching mounting base for I/O Pack modules. It provides field‑wiring terminals and back‑plane interconnection interfaces.

Note: IS230SNRTH2A itself contains no logic processing chip. It is a passive / semi‑passive base carrier. It must be assembled with corresponding I/O function boards (e.g. SNRL series) and cannot work standalone.

GE IS230SNRTH2A

2. Product Background

IS230SNRTH2A belongs to the distributed I/O hardware family of GE Speedtronic Mark VIe / Mark VIeS gas & steam turbine control systems.

Mark VIe adopts IONet Ethernet‑based distributed I/O architecture. The I/O system consists of two parts: hot‑swappable upper I/O function board and lower IS230‑series terminal base (Base Module). The base undertakes field‑cable termination, signal routing, mechanical mounting and back‑plane interconnection.

Original OEM production has reached End‑of‑Life (EOL). Available supplies include pulled‑used, refurbished and surplus spare‑parts. Configuration and diagnostics are completed via ToolboxST software. It supports simplex, duplex hot‑standby and TMR triple‑modular‑redundant configurations, widely deployed for combined‑cycle power plants and gas compressor stations.

GE IS230SNRTH2A

3. Key Functions

1. Mechanical mounting & retention: Acts as mounting base for I/O Pack function boards. Provides chassis slot positioning and locking, absorbs on‑site vibration and shock, improves anti‑vibration performance for cabinet‑mounted modules.
2. Field‑signal terminal block: Integrated screw‑type terminal blocks for connecting field sensors and actuator cables (analog, discrete and relay circuits). All field wiring terminates on this base; the I/O function board mates to the base via onboard connectors.
3. Signal routing & back‑plane interconnection: Routes field signals between field wiring and upper I/O function board. Establishes electrical connection to I/O Pack back‑plane bus for IONet communication, power supply and I/O signal transmission.
4. Auxiliary electrical isolation & filtering: Some variants integrate RC filtering and transient‑suppression components to suppress surge interference coupled from field cables and protect the upper I/O function board.
5. Hardware identification & compatibility check: On‑board identification circuitry allows Mark VIe system to auto‑detect base‑module model upon power‑on. It validates compatibility between base and I/O board; hardware mismatch will trigger system fault alarm.More products: www.plcva.com

GE IS230SNRTH2A

4. Applications & Purpose

1. Host‑system requirement: Designed for I/O Pack chassis of GE Mark VIe / Mark VIeS turbine control systems. The base has no independent control capability and must work together with IS230‑series I/O function boards; standalone operation is not supported.
2. Typical equipment: GE Frame 6 /7 /9 gas‑turbine and steam‑turbine generator sets, combined‑cycle power plants, natural‑gas compressor stations and industrial power turbines.
3. Operational purpose: Serves as field‑cable termination carrier, bringing signals from on‑site sensors, valves and contactors into I/O function boards. All external field wiring stays on the base while the I/O board can be hot‑swapped without removing field cables, simplifying on‑site maintenance and board replacement and minimizing unit outage duration.
4. Market profile: Critical auxiliary spare‑part for power plants. Used as replacement when terminal blocks burn out or hardware identification circuits fail. Also deployed for I/O point expansion during unit retrofits.
