Emerson

Brand

Emerson (Germany EPRO, belongs to Emerson Machinery Health Division). World‑renowned TSI turbine safety‑monitoring instrument brand for rotating‑machinery speed, phase and vibration‑displacement measurement.

EPRO PR9376

Full Product Name

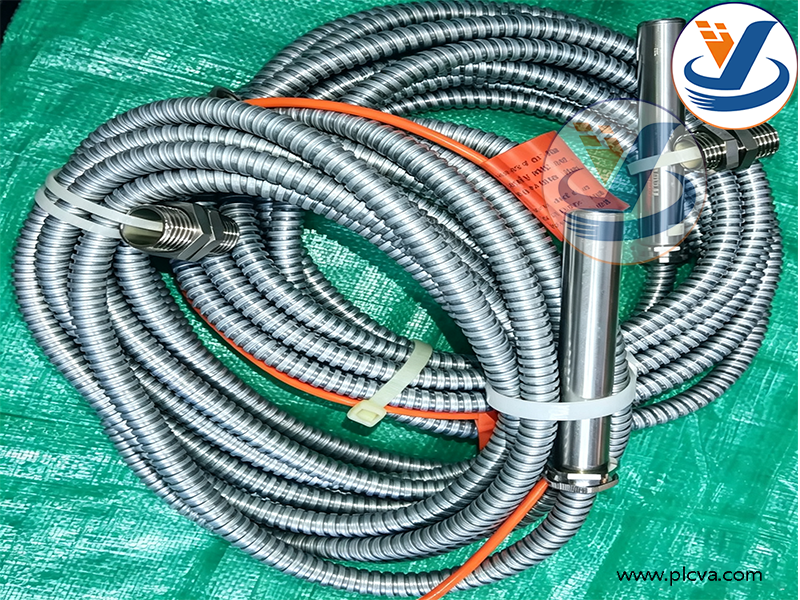

EPRO PR9376/20 Hall‑Effect Non‑Contact Speed / Key‑Phase Sensor (3 m Armored Cable)

PR9376: product series. Suffix‑20 stands for 3‑meter stainless‑steel armored shielded cable. No preamplifier required, square‑wave pulse output directly. Works with speed gear or shaft keyway, compatible with MMS6000 TSI monitoring system.www.plcva.com

Main Functions

1. Hall‑effect non‑contact measuring principle. Detects speed gear teeth or shaft key‑slot and outputs frequency pulse signals for rotational‑speed measurement, zero‑speed detection and key‑phase acquisition. Frequency range: 0‑20 kHz, covers rotational speed up to 120 000 RPM.
2. Power supply DC 8‑31.2 V, square‑wave pulse output. Max sensing gap ≤1.5 mm for ferromagnetic gear teeth. Excellent low‑speed performance, capable of zero‑speed detection for barring‑gear condition.
3. Stainless‑steel probe housing with 3 m metal‑armored shielded cable. IP66 protection rating. Operating temperature ‑30 ℃ ~ +100 ℃, short‑time peak 120 ℃. Oil‑resistant, vibration‑shock resistant for harsh bearing‑box environment.
4. Direct connection to MMS6312 speed monitoring module, no eddy‑current preamplifier needed. Pulse signals can be sent to PLC or TSI system for speed indication, overspeed protection, zero‑speed interlock and key‑phase reference for vibration spectrum analysis.
5. Can be used as proximity switch for gear counting and shaft position judgment. Armored cable suppresses field electromagnetic interference for stable signal acquisition.

EPRO PR9376

Applications

1. TSI system for steam‑turbine generator sets in power plants: Turbine speed measurement, zero‑speed barring‑gear monitoring, overspeed protection, supplying key‑phase reference for rotor vibration diagnosis and dynamic balancing.
2. Petrochemical & coal‑chemical centrifugal compressors, gas turbines, blowers and large pumps. Rotating‑machinery speed monitoring and overspeed interlock to prevent machine overspeed failure.
3. Heavy‑duty rotating equipment in metallurgy and energy industries. Provides key‑phase pulse for vibration spectrum analysis and predictive maintenance.
4. Spare‑part replacement for legacy TSI installations, widely deployed with existing MMS6000 systems. Not applicable for non‑ferromagnetic target materials.
