Honeywell 51304485‑150 (MC‑PDIX02) Digital Input Processor
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Product Background
This I/O card belongs to Honeywell TDC‑3000 / Micro‑TDC3000 Distributed Control System, compatible with APM and HPM process managers for discrete signal acquisition.
This module is End‑of‑Life (EOL), original new manufacturing has been discontinued. Most available units on market are used pulled‑out or refurbished tested spares.More products: www.plcva.com
Large quantity of these cards are still operating in legacy petrochemical, refinery, chemical and power plants. Spare‑part replacement demand remains high. It is interchangeable with 51304485‑100 (MU‑PDIX02) for TDC‑3000 platform.

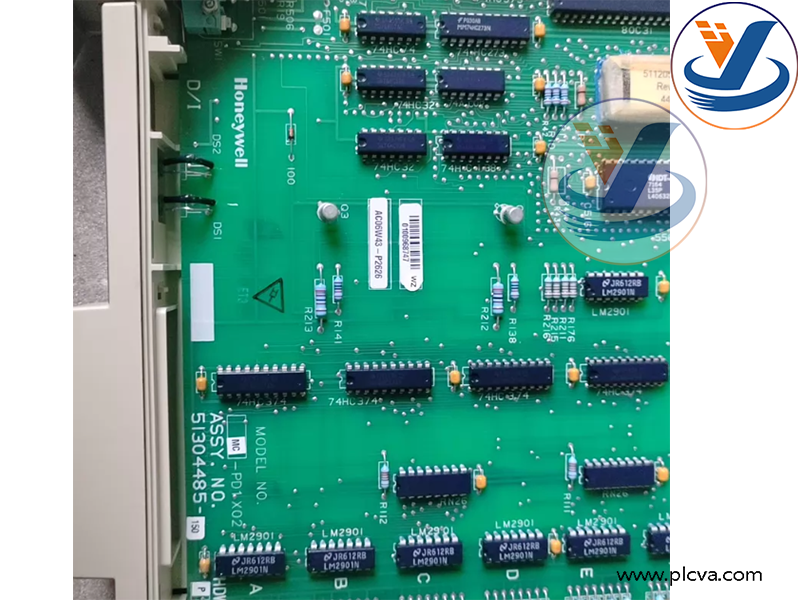

Honeywell 51304485‑150 (MC‑PDIX02)
Main Functions
- Discrete digital signal acquisition: collect 24VDC field signals from limit switches, proximity sensors, relay contacts, valve position feedback and push‑buttons with multi‑channel input capability.
- Galvanic isolation and signal conditioning between field side and system side, suppress industrial electromagnetic noise and protect DCS controller hardware.
- Convert field contact status into internal bus data and transmit data to LCN network for controller and operator station reading and logic processing.

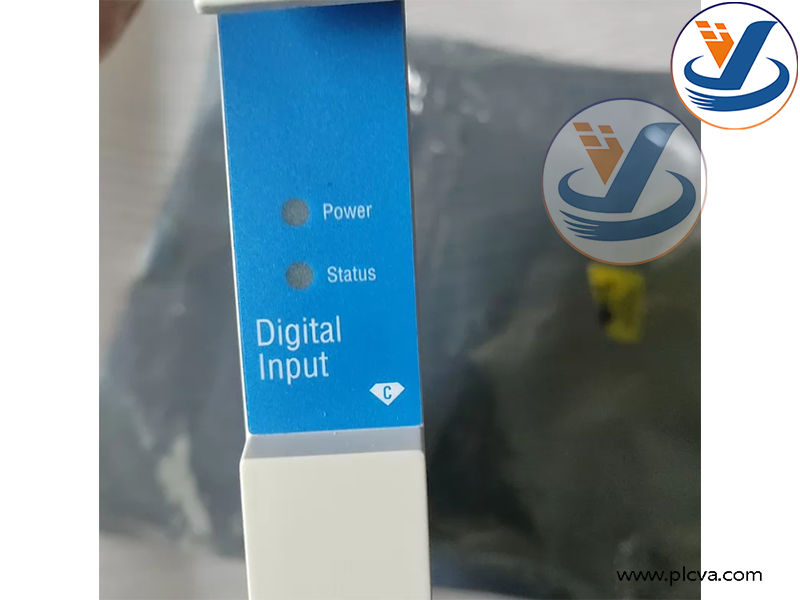

Honeywell 51304485‑150 (MC‑PDIX02)
- On‑board self‑diagnosis: detect channel open‑circuit, short‑circuit and module hardware failure. LED status indicators are provided, fault alarms will be uploaded to DCS for quick troubleshooting.
- Hot‑swap supported: online replacement in cabinet without interrupting other system functions, reduce maintenance downtime.

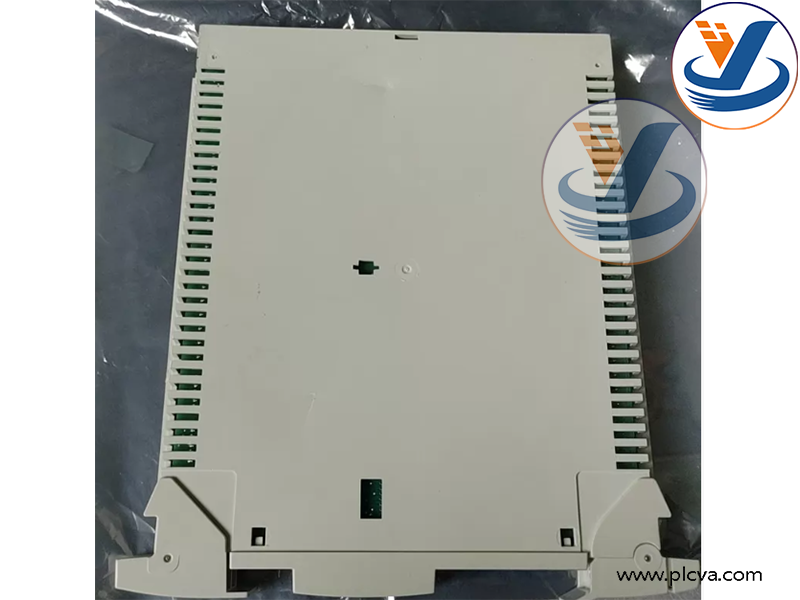

Honeywell 51304485‑150 (MC‑PDIX02)
Applications & Purpose
Installed in I/O slots of HPM / APM cabinet for Honeywell TDC‑3000 DCS system.
Widely used in petrochemical, refinery, power plant, chemical and pharmaceutical process industries.
Typical field usage: valve position feedback, pump & motor running status monitoring, interlock contact input, alarm signal acquisition and equipment status supervision.
It works at DCS I/O interface layer, only for digital input signal collection from field devices, no output driving capability.
Honeywell 51304485‑150 (MC‑PDIX02)
And the type and model as well：
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
| 51304481‑150 | Low Level Analog Input Processor | MC‑PAIL02 |
| 8036972‑150 | Digital Input Processor (24VDC) | MC‑PDIY22 |
| 51309155‑175 | High‑Performance Process Manager Main Board | HPMM Main Board |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |
| 80363975‑150 | Digital Output Processor | MC‑PDOY22 |
| 80363975‑100 | Digital Output Processor | MC‑PDOY22 |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |
| 51304487‑100 | Digital Input Processor | MC‑PDIY02 |
| 51304485‑100 | Analog Output Processor | MC‑PAOY02 |
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
