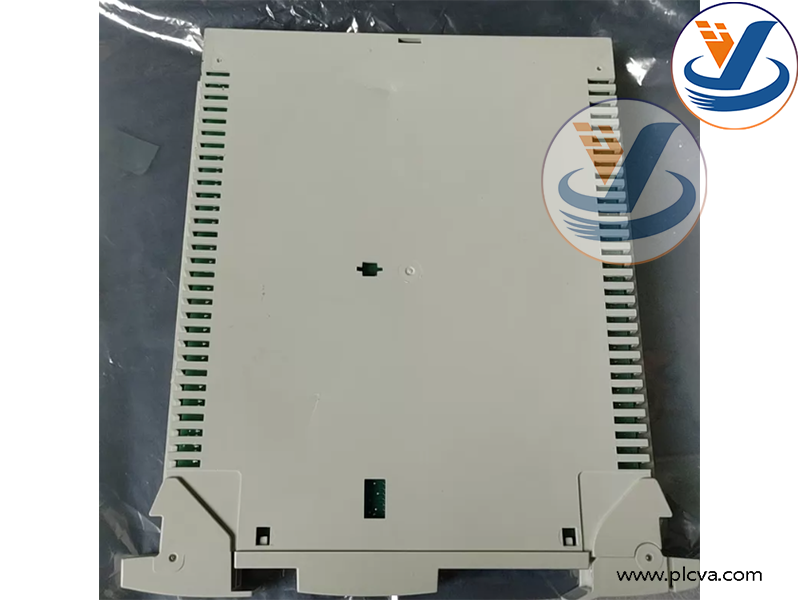

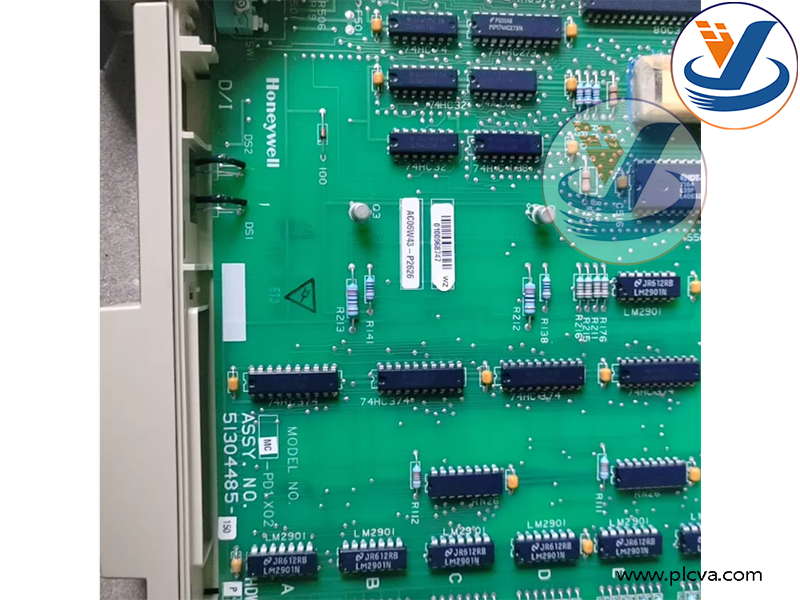

Honeywell 51304485‑150 (MC‑PDIX02) Digital Input Processor
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Product Background
This I/O card belongs to Honeywell TDC‑3000 / Micro‑TDC3000 Distributed Control System, compatible with HPM and APM process managers for discrete signal acquisition. It is revised hardware upgrade version of 51304485‑100 (MU‑PDIX02), fully interchangeable within TDC‑3000 platform.
Honeywell 51304485‑150
This module is End‑of‑Life (EOL), original new manufacturing has been discontinued. Most available units on market are used pulled‑out or refurbished tested spares.
Large quantity of these cards are still operating in legacy petrochemical, refinery, chemical and power plants. Card failure will cause loss of field status feedback and affect interlock logic judgement, so spare‑part replacement demand remains high.
Honeywell 51304485‑150
Main Functions
- Discrete digital signal acquisition: 32‑channel 24VDC dry‑contact input for limit switches, proximity sensors, relay contacts, valve position feedback and push‑buttons.
- Galvanic isolation and signal conditioning between field side and system side, suppress industrial electromagnetic noise and voltage surge, protect DCS controller hardware.
- Convert field contact status into internal bus data and transmit data to LCN network for controller and operator station reading and logic processing.More products: www.plcva.com

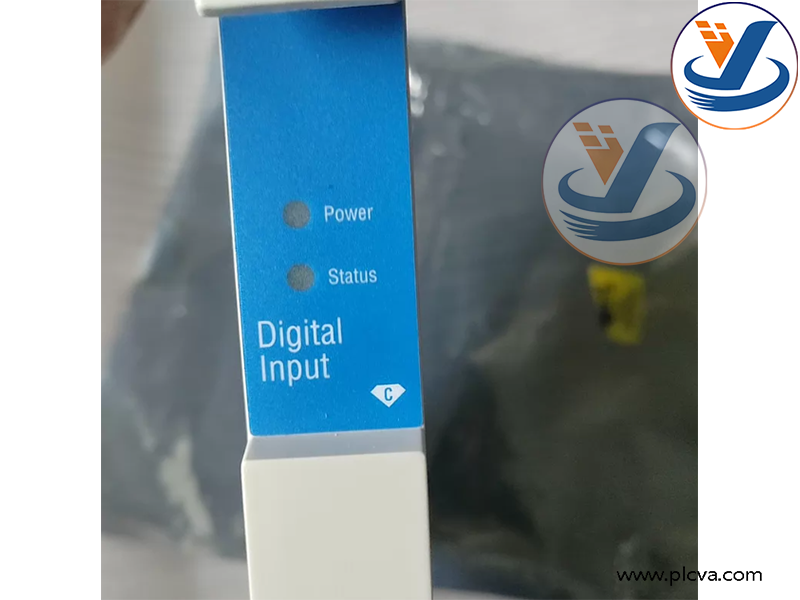

- On‑board self‑diagnosis: detect channel open‑circuit, short‑circuit and module hardware failure. LED status indicators are provided, fault alarms will be uploaded to DCS for quick troubleshooting.
- Hot‑swap supported: online replacement in cabinet without interrupting other system functions, reduce plant maintenance downtime.
- Conformal coating on PCB for improved protection against humidity and dust in harsh industrial environment.
Honeywell 51304485‑150
Applications & Purpose
Installed in I/O slots of HPM / APM cabinet for Honeywell TDC‑3000 DCS system.
Widely used in petrochemical, refinery, power plant, chemical and pharmaceutical process industries.
Typical field usage: valve position feedback, pump & motor running status monitoring, interlock contact input, alarm signal acquisition and equipment status supervision.
It works at DCS I/O interface layer, only for digital input signal collection from field devices, no output driving capability.
Honeywell 51304485‑150
And the type and model as well：
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
| 51304481‑150 | Low Level Analog Input Processor | MC‑PAIL02 |
| 8036972‑150 | Digital Input Processor (24VDC) | MC‑PDIY22 |
| 51309155‑175 | High‑Performance Process Manager Main Board | HPMM Main Board |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |
| 80363975‑150 | Digital Output Processor | MC‑PDOY22 |
| 80363975‑100 | Digital Output Processor | MC‑PDOY22 |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |

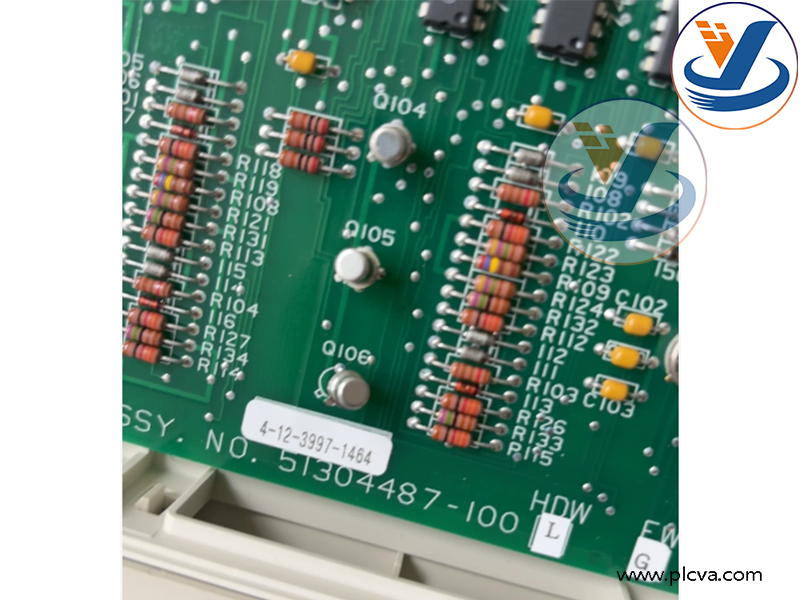

| 51304487‑100 | Digital Input Processor | MC‑PDIY02 |
| 51304485‑100 | Analog Output Processor | MC‑PAOY02 |
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
| Understand the lowest price, please contact via email: plcvarious@foxmail.com |
| More products: www.plcva.com |
| Many products are not yet on the shelves please contact us for more products. |
