Honeywell

Main Functions

1. LCN Coaxial Channel A Physical Interface It provides BNC connector for LCN “A” coaxial cable connection. It converts electrical signals between node backplane logic circuit and LCN coaxial bus, serving as the front-end physical media adapter for the LCN A network path. The LCN network runs at 5 Mbps for deterministic real-time control data exchange.More products: www.plcva.com
2. Node Chassis Backplane Signal Routing It connects the LCN transceiver logic on the node mainboard to the external LCN coax cable via the paddle board. It transmits network frames, node addressing signals, power and diagnostic signals between chassis internal circuits and the LCN backbone.
3. LCN Network Signal Conditioning & Impedance Matching The board contains signal matching and termination circuits for LCN coaxial bus. It maintains correct characteristic impedance of the coaxial network, suppresses signal reflection and electromagnetic interference to guarantee stable high-speed LCN communication in industrial environments.plcva.com
4. Network Status Monitoring & Diagnostics It continuously monitors LCN A cable link status, carrier signal quality and frame transmission errors. Fault information such as cable breakage, poor contact, signal attenuation will be detected and reported to the DCS node processor, with status indicators for on-site maintenance inspection.
5. Redundant Network Support (Paired with CLCN-B) CLCN-A (51305072-200) works together with CLCN-B board to implement dual redundant LCN network (LCN A + LCN B). When one communication path fails, the system can switch automatically to the backup channel without interrupting process control communication.
6. Dual-node Chassis Mechanical & Electrical Integration This card is a plug-in paddle module specially designed for Honeywell dual-node chassis. It provides mechanical fixing and front panel BNC port mounting, simplifying field wiring of LCN coaxial cables.plcva.com

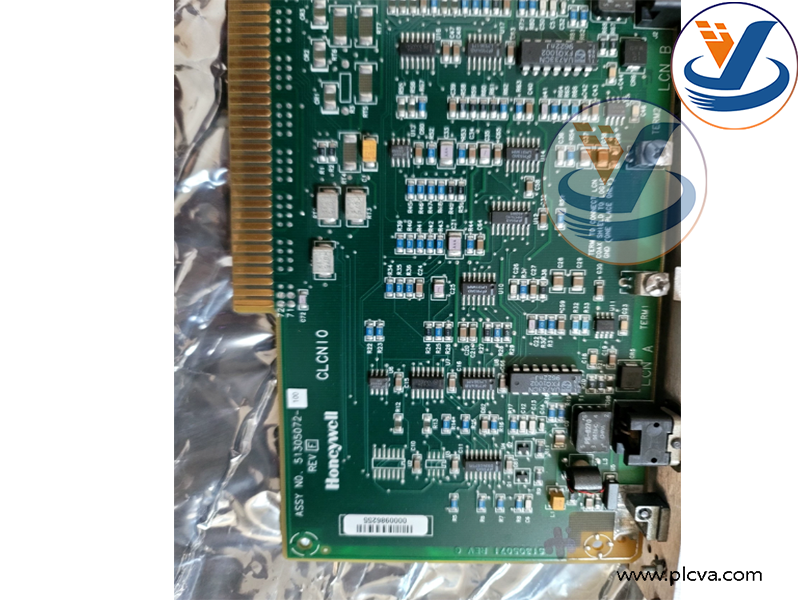

Honeywell CLCN10 LCN I/O Paddle Board / Local Control Network Interface Card, Part No. 51305072-200

Applications & Purpose

CLCN10 / CLCN-A 51305072-200 is a critical network interface component exclusively for Honeywell TDC3000 / TPS DCS systems. Typical applications:

• Petrochemical, refinery and chemical plant process control DCS cabinets
• Power plant boiler and auxiliary process monitoring & control
• Pulp & paper manufacturing line quality and process control
• Oil & gas processing plant distributed control systems
• Legacy TDC3000 system spare parts replacement for LCN network interface failure

Notes: Honeywell CLCN10 (CLCN-A) 51305072-200 is End-of-Life (EOL). No new original production. It can only be used as spare replacement parts for existing TDC3000 / TPS DCS installations. It is not a CPU or I/O acquisition board; it is the LCN A-channel coaxial interface paddle board.

Honeywell CLCN10 LCN I/O Paddle Board / Local Control Network Interface Card, Part No. 51305072-200
