Product Background

51304754‑150 (MC‑PAIH03 HLAI) is an I/O card for Honeywell TPS / TDC‑3000 UCN Distributed Control System, compatible with HPM and APM process managers for analog transmitter signal acquisition. It is revised hardware version of 51304754‑100, fully interchangeable within TDC‑3000 platform.

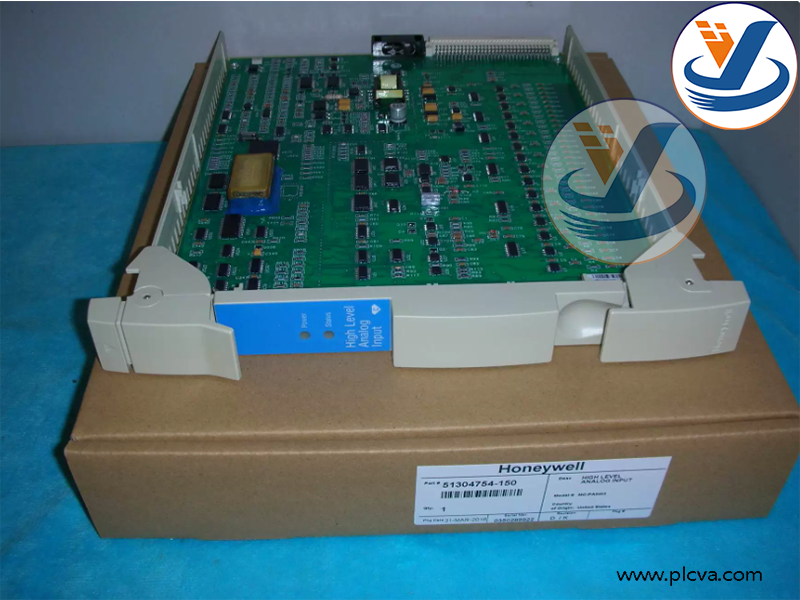

Honeywell 51304754‑150

This module is End‑of‑Life (EOL), original new manufacturing has been discontinued. Most available units on market are used pulled‑out or refurbished tested spares.

Large quantities are still operating in legacy petrochemical, refinery, chemical and power plants. This card collects critical process analog variables; card failure will cause loss of process measurements and affect control loops & interlock logic, so spare‑part replacement demand remains high.

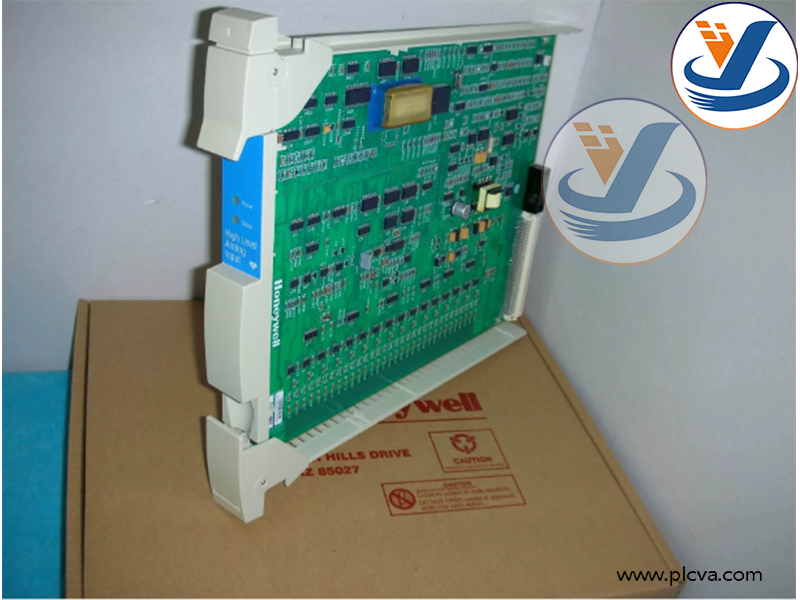

Honeywell 51304754‑150

Main Functions

1. 16‑channel differential analog input: accepts 4‑20mA current and 0‑10VDC voltage signals, compatible with 2‑wire transmitters and self‑powered transmitters for flow, pressure, level and other process variables.
2. Galvanic isolation and signal conditioning between field side and system side, suppress industrial electromagnetic noise and protect controller hardware.
3. High‑precision A/D conversion: 16‑bit ADC with ±0.1% full‑scale accuracy. Configurable input ranges and digital filtering for various field conditions.
4. UCN bus communication: convert analog field signals into digital data, transmit data to HPM / APM processor via UCN bus, then transfer through LCN network to operator stations for display, PID control, alarm and interlock logic processing.
5. On‑board self‑diagnosis: detect channel open‑circuit, transmitter wire break, over‑range and module hardware failure. LED status indicators are equipped, fault alarms will be uploaded to DCS for fast troubleshooting.
6. Hot‑swap supported: online replacement in cabinet without interrupting other control loops, reduce plant maintenance downtime.
7. Conformal coated PCB for harsh cabinet environment with high humidity and dust.

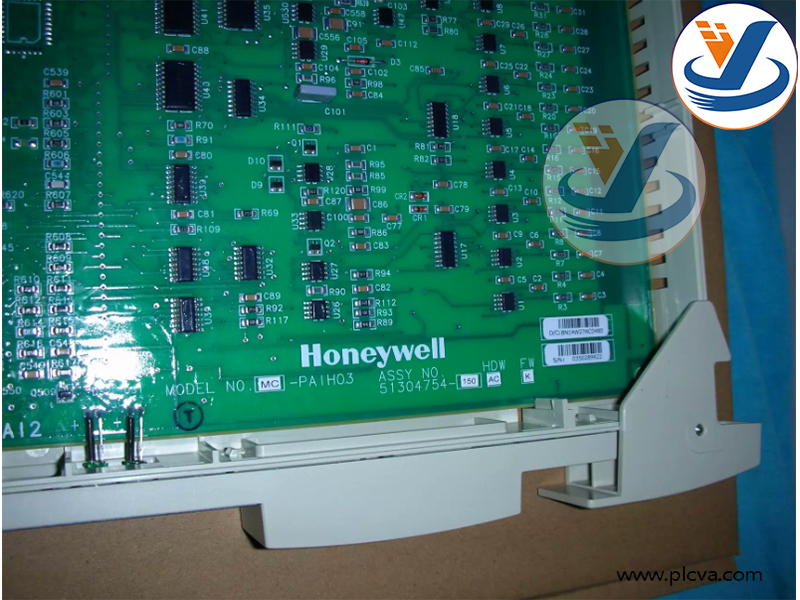

Honeywell 51304754‑150

Applications & Purpose

Installed in I/O slots of HPM / APM cabinet for Honeywell TPS / TDC‑3000 DCS system.

Widely used in petrochemical, refinery, power plant, chemical and pharmaceutical process industries.

Typical field usage: acquire 4‑20mA / voltage signals from pressure, flow, level and temperature transmitters; process variable monitoring, PID closed‑loop regulation and process over‑limit alarm.

It works at DCS I/O interface layer, only for analog signal acquisition from field devices, without output driving capability.

Honeywell 51304754‑150

And the type and model as well：

51304754‑150	High Level Analog Input Processor	MC‑PAIH003
51304481‑150	Low Level Analog Input Processor	MC‑PAIL02
8036972‑150	Digital Input Processor (24VDC)	MC‑PDIY22
51309155‑175	High‑Performance Process Manager Main Board	HPMM Main Board
51304485‑150	Analog Output Processor	MC‑PAOY02
80363975‑150	Digital Output Processor	MC‑PDOY22
80363975‑100	Digital Output Processor	MC‑PDOY22
51304485‑150	Analog Output Processor	MC‑PAOY02
51304487‑100	Digital Input Processor	MC‑PDIY02
51304485‑100	Analog Output Processor	MC‑PAOY02
51304754‑150	High Level Analog Input Processor	MC‑PAIH003
