Woodward easYgen RP‑3000 (Part No.8446‑1048 REV‑H)
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Product Background
Woodward is a US‑headquartered leading supplier of engine‑generator control, synchronization and power‑management solutions. The easYgen‑3000 genset controller platform was launched around 2008 for stationary, marine and distributed‑power projects, supporting single‑unit emergency standby, multi‑genset parallel‑load‑sharing, mains‑paralleling and microgrid operationWoodward.
In many real‑world installations, the main easYgen‑3000 controller is mounted inside switchgear cabinets (rear‑mount), inaccessible for daily operator operation. Therefore Woodward released RP‑3000 (8446‑1048) as the dedicated remote operator panel, solving the requirement for front‑of‑panel / control‑room human‑machine interface without moving the main control hardware.
REV‑H is a later hardware iteration: it fixed known defects such as LCD contrast drift in older revisions, improved EMC anti‑interference performance for marine and heavy‑industrial environments, and strengthened wide‑temperature adaptabilityWoodward.More products: plcva.com

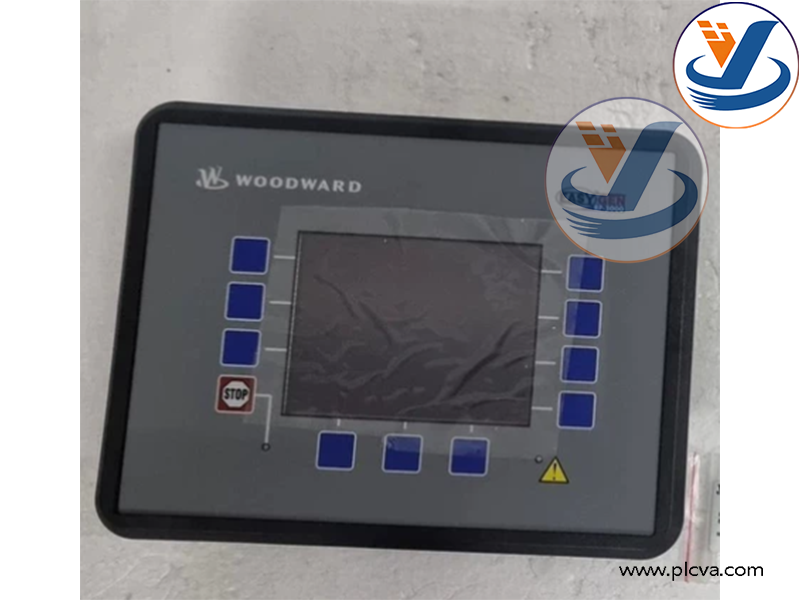

Woodward easYgen RP‑3000
2. Core Functions
The RP‑3000 communicates to one single easYgen‑3000 main controller exclusively via CAN‑Bus (CAN1 / CAN2 port of main unit). It mirrors all real‑time data, alarms and parameter access of the master genset controllerManualsLib.

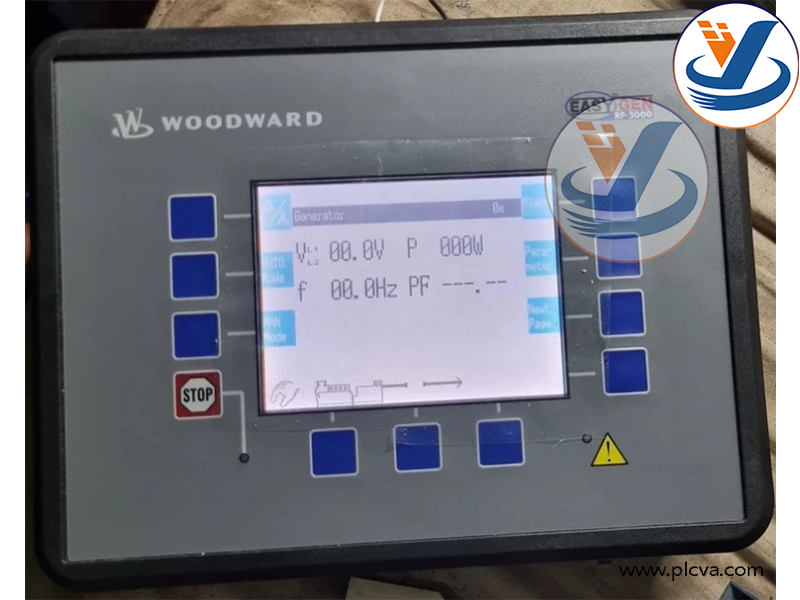

Woodward easYgen RP‑3000
Main Functional List
- Real‑time Visualization & Measurement Display Show generator voltage/current/power/kW/kVar/kWh, mains parameters, engine oil pressure, coolant temperature, battery voltage, running hours, synchronization status, breaker status, load‑sharing values, fault‑code texts on color LCD screen.
- Operator Control Commands Remote start‑stop of genset, mode selection (Auto / Manual / Stop), breaker operation commands, alarm acknowledge and reset, event log browsing.
- Alarm & Annunciation Full alarm text display, fault history log storage, status indication; one assigned relay output for “Ready‑to‑operate” status signal for external annunciation systemwoodward.p….
- Password‑protected Remote Parameter Configuration Operators can modify nearly all easYgen‑3000 controller parameters directly on RP‑3000 keypad with multi‑level password authorization; no PC software is required for on‑site commissioning adjustmentsManualsLib.
- Multi‑language HMI Interface Support multiple operator languages for global project deployment.
- Harsh‑environment Hardware Performance Front‑panel IP65 dust‑water‑proof rating; wide operating temperature range‑20 ℃ ~ +75 ℃; anti‑vibration for marine / offshore applications; 12 V DC / 24 DC power supply (8‑40 VDC wide‑range input).

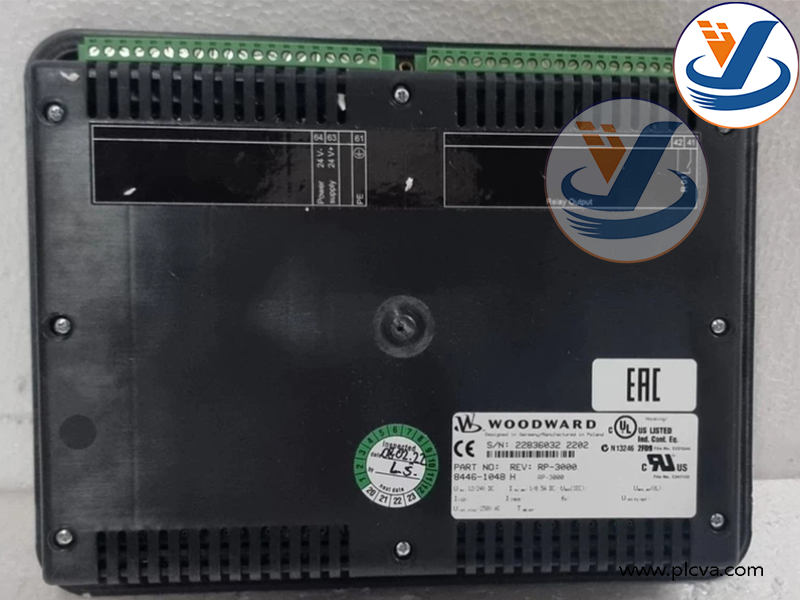

Woodward easYgen RP‑3000
Limitation: RP‑3000 has NO independent control logic. It cannot run standalone; it must connect to a physical easYgen‑3000‑series main controller over CAN‑Bus. One RP‑3000 only links to one master controller at a time.More products: plcva.com
3. Typical Applications & Usage Scenarios
- Industrial Generator‑Set Switchgear Cabinets When easYgen‑3000 main controller is rear‑mounted inside cubicle, RP‑3000 is flush‑mounted on cabinet front door for local operator monitoring and operation, reducing high‑voltage‑circuit exposure risk for personnel.
- Marine Vessel Power‑System Control Room / Bridge Console Monitor and control shipboard gensets from bridge remote console, widely used for merchant ships, offshore work‑vessels.
- Emergency‑backup Power Sites Data‑center backup gensets, hospital standby power, industrial plant emergency power stations; operators work in separate control‑room instead of noisy genset‑room.
- Island‑mode & Micro‑grid Projects Remote human‑machine interface for distributed‑power generation, remote‑site prime‑power gensets.
- OEM Generator Packager & Switch‑builder Projects Standard HMI solution for system integrators to deliver remote‑operator capability without extra third‑party HMI hardware.

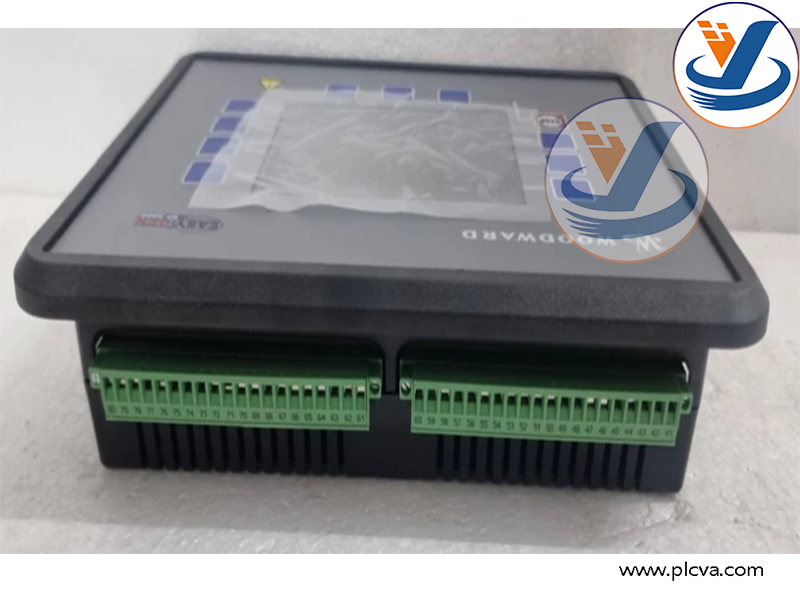

Woodward easYgen RP‑3000
Supported Master‑controller List
Compatible with easYgen‑3100, easYgen‑3200, easYgen‑3400, easYgen‑3500 (including XT variants) genset paralleling controllers.
Woodward easYgen RP‑3000
4. Key Technical Summary
表格
| Item | Description |
|---|---|
| Communication | CAN‑Bus to easYgen‑3000 main controller |
| HMI | Color LCD + 11‑button tactile keypad |
| Mounting | Flush panel mounting |
| Power | 8‑40 VDC (12/24 VDC nominal) |
| Front‑panel rating | IP65 |
| Revision H | Improved LCD stability, enhanced EMC, industrial conformal coating |
