1.Product Background

IGCT technology was developed by ABB as the evolutionary successor to conventional GTO (Gate Turn‑Off Thyristor). Traditional GTO thyristors require large, lossy snubber circuits to achieve forced turn‑off, which increases cabinet volume, stray inductance and system failure risk in megawatt‑class medium‑voltage convertersABB Group.More products: plcva.com

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)

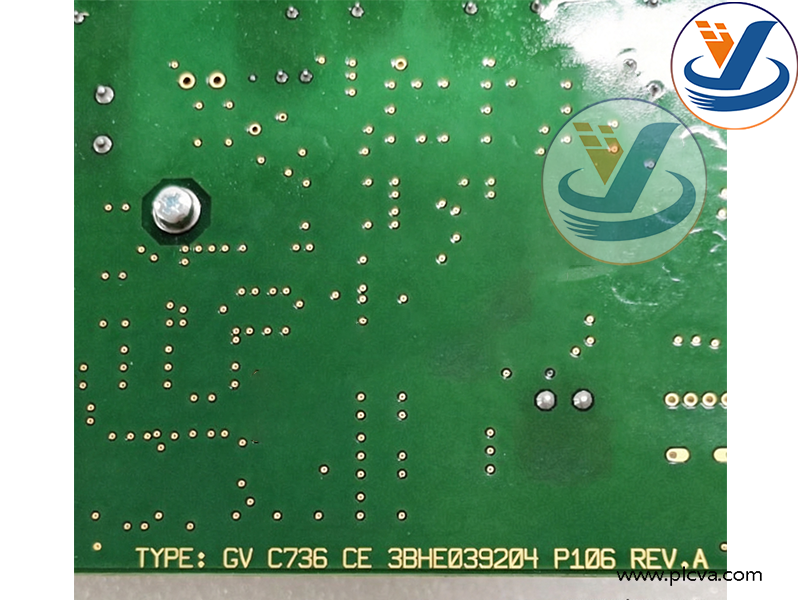

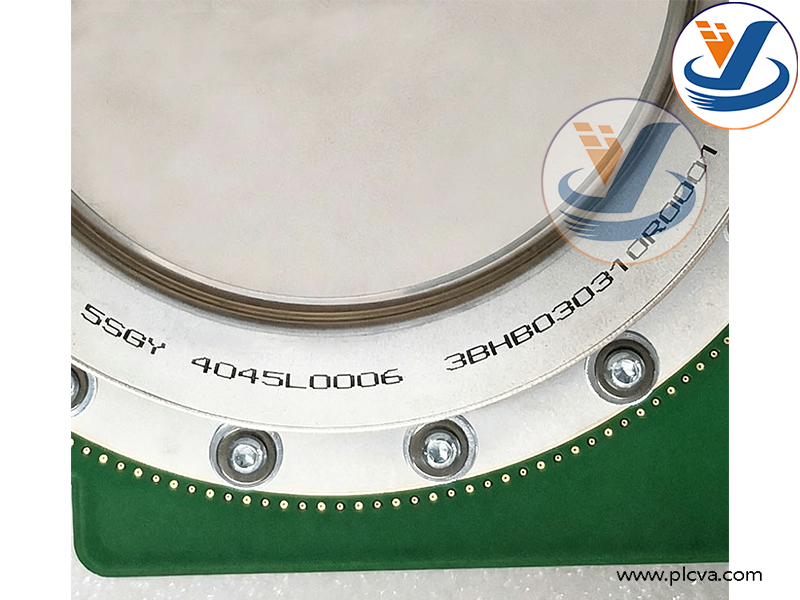

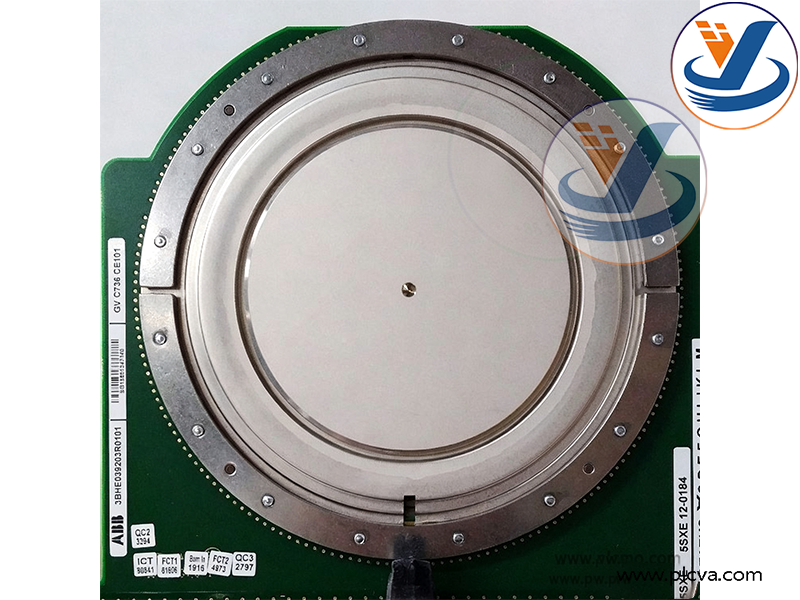

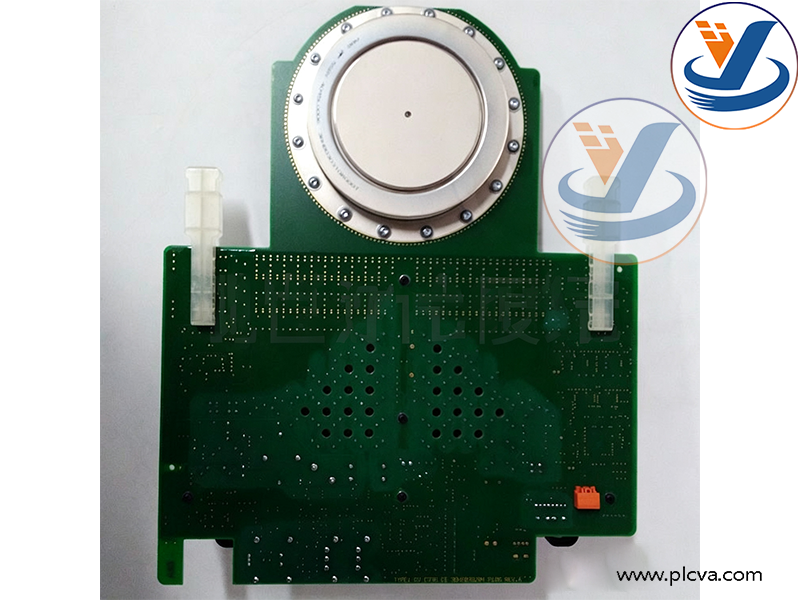

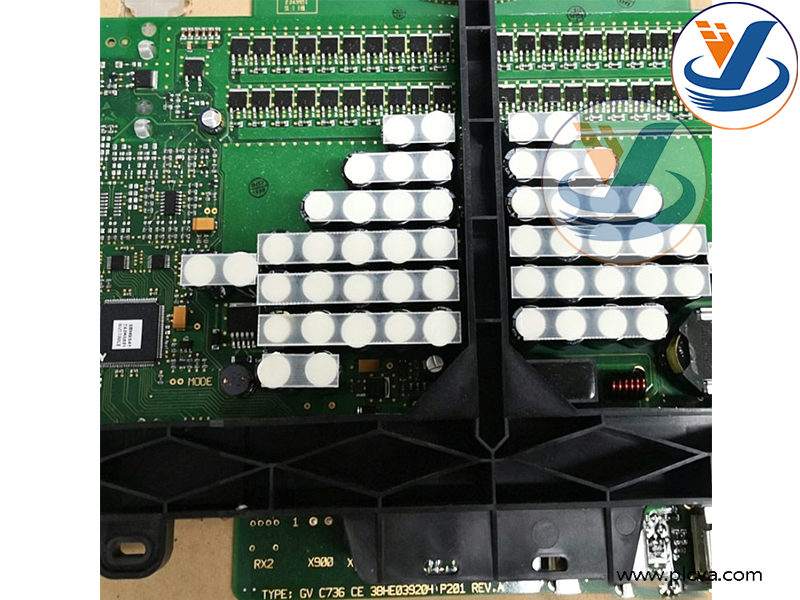

Model 5SHY4045L0006 is ABB’s mature high‑power asymmetric IGCT with 91 mm press‑pack (hockey‑puck) ceramic‑metal sealed package. The full assembly 3BHB030310R0001 integrates the GVC736CE101 gate‑drive PCB, fiber‑optic transceivers, monitoring circuits and auxiliary power interfaces; 5SXE12‑0184 is the aftermarket spare‑part reference for this same complete unit.

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)

This IGCT is optimized for series‑stacking in medium‑voltage converters. Its press‑pack package supports failure‑to‑short safe fault mode, a critical feature for series‑connected power stacks. It is mainly water‑cooled for continuous heavy‑duty industrial operation and widely deployed inside ABB ACS6000 / ACS5000 medium‑voltage drive platforms and third‑party power‑electronic systems.

Key baseline electrical specifications:

• Repetitive peak off‑state voltage (VDRM): 4500 V
• Maximum controllable turn‑off current (ITGQM): 4000 A
• Typical RMS on‑state current: ~1400 A (water‑cooled condition)
• Surge current capability: 16 kA /10 ms
• Control interface: Fiber‑optic trigger, high‑EMI immunity
• Junction operating temperature: −40 ℃ ~ +125 ℃
• Cooling requirement: Liquid water‑cooling (primary)

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)

2. Core Functions

1. Snubber‑less high‑power switching: Achieves controlled turn‑ON and forced active turn‑off for medium‑voltage high‑current power circuits via fiber‑optic gate signals. No bulky external snubber circuits are required, reducing system volume and switching losses.
2. AC‑DC / DC‑AC bidirectional energy conversion: Serves as core power switching component inside rectifiers and inverters, converting AC to DC or DC to variable‑voltage variable‑frequency AC output. Asymmetric topology provides high forward‑blocking voltage for multilevel converter stacks, working with external freewheeling diodes for reverse current handling.
3. Precise power & frequency regulation: Adjusts trigger timing to control output power magnitude and phase; supports typical switching frequency up to 500 Hz‑1 kHz for medium‑voltage applications, featuring low on‑state voltage drop for high‑efficiency megawatt‑level operation.
4. Integrated monitoring & system protection: The embedded GVC736CE101 gate‑drive unit monitors gate status, over‑temperature and abnormal switching conditions, outputs fault alarms via optical fiber for upper‑level system interlock protection. Press‑pack mechanical design delivers excellent thermal‑cycling resistance for long‑term 24/7 heavy‑load operation.

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)

3. Main Applications & Usages

This full IGCT assembly is designed for megawatt‑grade medium‑voltage power‑electronic stacks, typical application scenarios:

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)

1. Medium‑voltage variable‑frequency drives (MVD): Core power device for ABB ACS6000, ACS5000 series converters. Applied for large‑capacity MV motor drives in metallurgical rolling mills, mine hoists, large fans/pumps, cement main motors, heavy‑industry compressors and marine propulsion systems.
2. STATCOM / SVC grid power‑quality compensation: Static synchronous compensators for power substations and heavy‑load industrial plants, performing reactive‑power compensation, grid‑voltage stabilization and harmonic suppression.
3. HVDC and grid‑energy‑storage conversion: Power‑conversion stacks for high‑voltage direct‑current transmission and large‑scale grid‑tied energy‑storage converters.
4. Heavy‑duty metallurgical power supplies: High‑power rectifier/inverter equipment for electrolysis, smelting and large DC heavy‑current power sources.
5. Large‑scale renewable energy conversion: Grid‑connection converters for large‑capacity wind farms and solar power stations.

ABB 5SHY4045L0006 (3BHB030310R0001) IGCT MODULE (GVC736CE101, 5SXE12‑0184)
