Product Background

R&D Background

ABB Switzerland developed the S100 I/O series for the Advant MOD 300 / Symphony DCS in the 1990s. DSAI130A is the high‑channel‑count analog input module of this I/O family, designed for large‑scale process‑control plants requiring massive analog measurement pointsABB Group.

Hardware highlights:

• 16 differential analog input channels (configurable as 8‑differential + 8‑single‑ended)ABB Group
• Supports voltage: ±10 V, ±5 V; current: 0‑20 mA, 4‑20 mA; high common‑mode voltage resistance, strong EMC anti‑interference performance
• 12‑bit plus sign‑bit resolution, high‑precision signal sampling, built‑in low‑pass filtering for industrial noise suppression
• Powered by 24 VDC from system backplane; hot‑swappable in redundant system configurationsABB Group

Current Status This hardware is End‑of‑Life (EOL), discontinued by ABB. No new original production. The market mainly provides refurbished, repaired or used spare units for maintenance and replacement of legacy DCS systems.

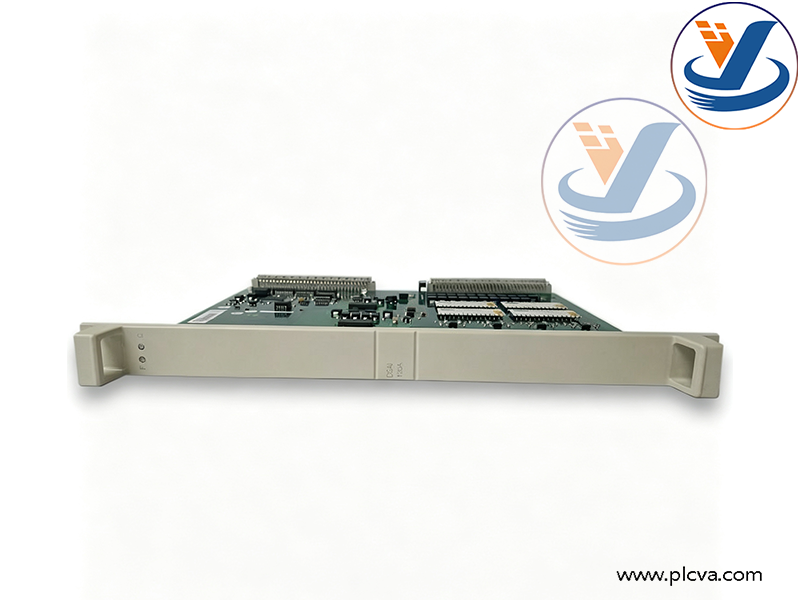

ABB S100 I/O DSAI130A Analog Input Board, Order‑No. 3BSE018292R1

Core Functions

Note: This is an analog input acquisition board. It only collects and digitizes field analog signals; control logic is handled by the system CPU controller.More products: www.plcva.com

1. Multi‑channel analog signal acquisition & A/D conversion Receives field sensor signals (temperature, pressure, flow, level, etc.), converts analog voltage/current signals into digital data, and transmits data to the system controller through the subrack backplane bus. Supports differential input to reduce industrial electromagnetic noise interference.
2. Signal conditioning & filtering Built‑in second‑order low‑pass filtering, suppresses 50 Hz power‑frequency interference; high common‑mode rejection for harsh noisy industrial environments.
3. On‑board self‑diagnostics & status indication Built‑in channel‑level fault diagnostics; detects open‑circuit, short‑circuit and signal‑out‑of‑range faults. Front‑panel LED indicators show module running status and channel‑level fault status for on‑site troubleshootingABB Group.
4. Redundancy & hot‑swap capability Supports redundant I/O configuration. Hot‑swap is supported under proper operating procedures, so faulty board replacement can be performed without shutting down the whole control system, improving plant availabilityABB Group.
5. Parameter configuration via system engineering tool All input ranges, channel modes and filtering parameters are configured through ABB DCS engineering software, no physical hardware jumpers required.

Hardware Interfaces

• Backplane connector: Plug‑in connection to S100 subrack backplane for power supply and data bus communication
• Front‑side screw‑type field‑signal terminals: 16‑channel analog field wiring terminals
• Front‑panel status LEDs: Module run status and channel fault indication

ABB S100 I/O DSAI130A Analog Input Board, Order‑No. 3BSE018292R1

Main Applications & Deployment Sites

Core Application: Analog signal data acquisition for ABB legacy Advant MOD 300 / Symphony Plus / INFI‑90 DCS systems, for continuous‑process industrial control.

1. Thermal & Hydro Power Plants DCS process control for boiler, turbine and auxiliary systems; collect temperature, pressure, flow and level signals of power‑plant process parameters.
2. Oil & Gas, Refineries & Petrochemical Plants Process monitoring for reactors, distillation columns, pipeline stations; acquire signals from pressure, temperature, flow and level transmitters for closed‑loop process control and safety interlock logic.
3. Pulp, Paper, Cement & Heavy‑Industry Factories Large‑scale continuous production process monitoring, high‑density analog‑point data collection.
4. Marine Automation Systems Marine‑grade variants for ship power‑plant and process‑control cabinets on offshore vessels and cargo ships.
