1.Main Functions

The A6824 is a gateway & communication interface card for AMS6500 TSI machinery protection rack.

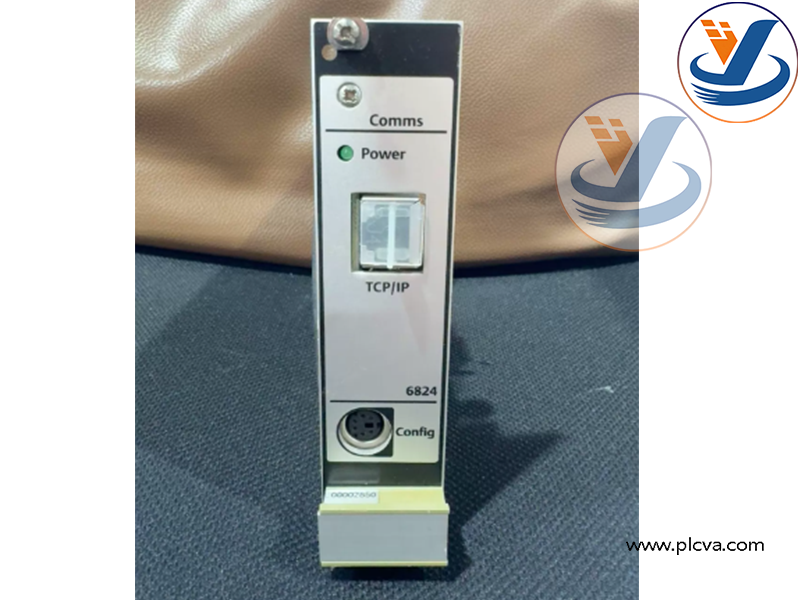

Emerson A6824 Modbus and Rack Interface Module

1. Rack‑wide Data Collection Reads vibration, shaft displacement, speed, temperature, alarm and trip status data from all monitoring cards inside AMS6500 rack via backplane bus. Aggregates all machinery health parameters within one chassis.
2. Dual‑protocol Modbus Communication Gateway Supports Modbus TCP/IP (RJ45 Ethernet) and isolated Modbus RTU (RS‑485 serial) simultaneously. Transfers collected machinery data to external DCS, SCADA, Ovation / DeltaV control systems.More products: www.plcva.com
3. Local Display Bus Drive Provides up to 6 independent RS‑485 display buses, power and data signal for local rack‑mount operator display panels for on‑site machine status viewing.
4. Hardware Diagnosis & Status Indication Front‑panel LED indicators for Power, Communication, Module Fault. Built‑in self‑diagnosis for power supply, back‑plane link, internal hardware failure. Supports password‑protected configuration setting.

Emerson A6824 Modbus and Rack Interface Module

1. Hot‑swap capability Single‑slot 3U plug‑in module, hot‑swappable without powering down the whole rack, for on‑line replacement and maintenance. Complies with API‑670 rotating machinery protection standard.

Emerson A6824 Modbus and Rack Interface Module

2. Application / Purpose

A6824 is the essential communication gateway component of Emerson AMS 6500 (CSI6500) TSI machinery protection system, installed inside IMR6000 series 19‑inch rack.

Emerson A6824 Modbus and Rack Interface Module

1. Serves as data bridge between TSI machinery monitoring hardware and plant‑wide distributed control system. Makes rotating‑machine health data available for control‑room operators.
2. Applied for critical high‑speed rotating equipment: steam turbine, gas turbine, centrifugal compressor, generator sets in power plant, petrochemical, oil & gas industry.
3. Delivers real‑time vibration, thrust position, rotational speed, alarm & trip information to DCS for central monitoring, early warning and predictive maintenance analysis.
4. Supports local on‑rack HMI display for field maintenance personnel, independent of control‑room system.
5. Non‑redundant A6824 for general‑importance machines; A6824R redundant version for high‑availability critical turbo‑machinery within IMR6500 rack.

Emerson A6824 Modbus and Rack Interface Module
