1.Functions

Loop-powered operation: Powered directly by the 4–20mA signal loop from 2-wire transmitters; no separate external power supply required.
LCD process value display: Accept standard 4–20mA analog signal, convert and display physical values with 20-segment bar graph. Supports linear, square-root and filtered display modes, configurable on-site via local buttons.www.plcva.com
Pass-through signal: The 4–20mA signal passes through the indicator without interruption to PLC/DCS control system.
Rotatable LCD assembly: The display module can be rotated in 90° increments for convenient viewing at different installation angles.
Rugged housing: Low-copper aluminium enclosure, IP66 / NEMA 4X rating, corrosion and vibration resistant.
Hazardous area certifications: Explosion-proof / intrinsically safe options for explosive process environments.
On-site calibration: Set 4mA zero and 20mA full scale locally, define engineering units and measuring range.

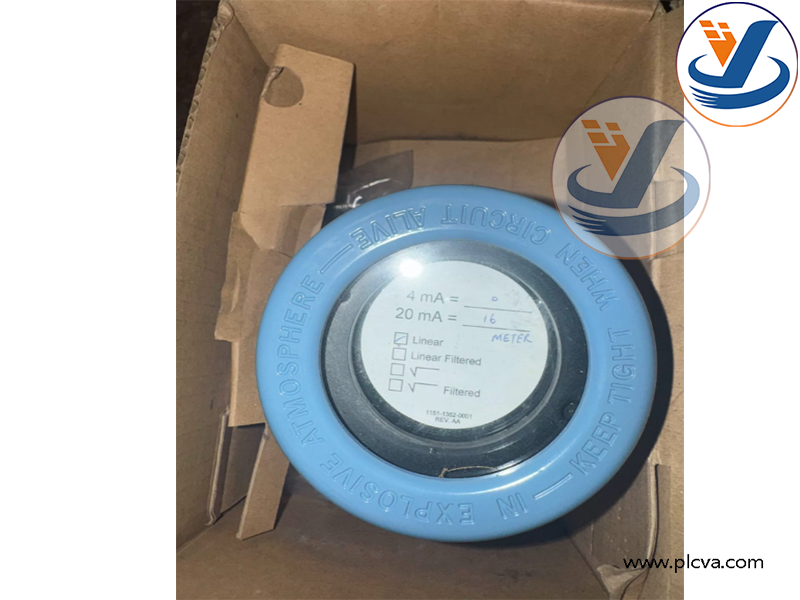

Emerson ROSEMOUNT 751AM7E8B 4-20mA Loop-powered Field Signal Indicator Physical photo

Emerson ROSEMOUNT 751AM7E8B 4-20mA Loop-powered Field Signal Indicator Physical photo

This field-mounted loop indicator works with all 2-wire 4–20mA transmitters for local on-site reading of process variables.www.plcva.com

Industries: Oil & gas, petrochemical, chemical, power, water treatment, marine, pharmaceutical.
Compatible transmitters: Pressure transmitter, flow transmitter, level transmitter, temperature transmitter.
Typical scenarios:
- Field location where transmitter built-in display is blocked or hard to view.
- Tank farm, pipeline, separator, boiler and reactor field instrument installation.
- Hazardous classified zones requiring explosion-proof field display.
Core purpose: Provide local visual reading for field operators while keeping the 4–20mA signal intact for remote control system. Operators can check process parameters directly on site without visiting control room.
Usage: New project installation or spare replacement for existing Rosemount 751 indicators.
