1.Main Functions

• Dry contact state acquisition: Detects open / closed status of field dry contact devices, including limit switches, push buttons, relay contacts and alarm contacts.
• 24VDC dry contact sensing: Provides internal 24VDC field sensing power for dry contact loops, detects contact closure without external power supply from field side.
• Signal conversion: Converts field contact on/off discrete status into digital data and transmits it to DeltaV controller via CHARM bus.
• Built-in channel diagnostics: Continuously monitors module health, channel fault and wiring abnormality; reports fault information to DeltaV DCS and AMS asset management software.
• Isolation & surge protection: Optical isolation and surge suppression between field circuit and control bus, prevents interference and circuit damage.
• Hazardous area safety design: Energy-limited circuit with ATEX / IECEx / FM certification for Zone 2 hazardous explosive areas.
• Hot swap capability: Plug-and-play CHARM module; can be replaced on compatible baseplate without shutting down the whole rack.

Core summary: This DeltaV CHARM digital input module collects on/off status of field dry-contact switches and relays, converts discrete contact signals into digital data for the DeltaV DCS to realize equipment status monitoring and interlock control.www.plcva.com

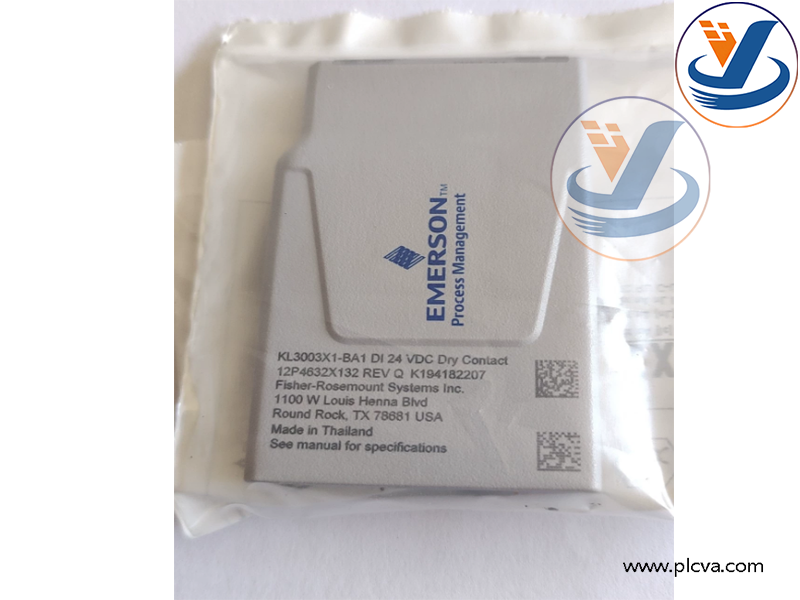

EMERSON KL3003X1-BA1 DI Dry Contact CHARM Module

2. Applications

1. Petrochemical & refinery plants Field switch and relay status collection for DeltaV DCS control loops in hazardous explosive zones.
2. Oil & gas industry Onshore gas processing plants, crude oil facilities, offshore platform control cabinets for valve limit switch and alarm contact monitoring.
3. Thermal power generation Boiler auxiliary system, valve position feedback, pump running status, trip & alarm contact signal acquisition.
4. Chemical manufacturing Continuous chemical production process, equipment interlock and safety alarm signal collection.
5. Pulp & paper, pharmaceutical industry Discrete status monitoring of valves, motors and safety switches.
6. Spare replacement & system retrofit Replacement spare or expansion I/O component for existing DeltaV Electronic Marshalling systems.www.plcva.com

EMERSON KL3003X1-BA1 DI Dry Contact CHARM Module

3. Product Features Summary

• Dedicated CHARM digital input module for Emerson DeltaV Electronic Marshalling system, for dry contact signal.
• Built-in 24VDC sensing power, suitable for NO / NC dry contact switches and relay contacts.
• Certified for hazardous locations (ATEX, IECEx, FM), applicable for Zone 2 explosive environments.
• Integrated channel-level fault diagnosis, supports AMS asset health monitoring.
• Optical isolation and surge protection, strong anti-interference for heavy industrial continuous operation.
• Compact pluggable CHARM design, hot-swappable on CHARM baseplate for easy maintenance.
• Wide operating temperature range, vibration-resistant for long-term 24/7 industrial operation.
• Widely used as spare replacement part for existing DeltaV DCS installed base.

Understand the lowest price, please contact via email: plcvarious@foxmail.com

More products: www.plcva.com

Many products are not yet on the shelves please contact us for more products.
