Main Functions

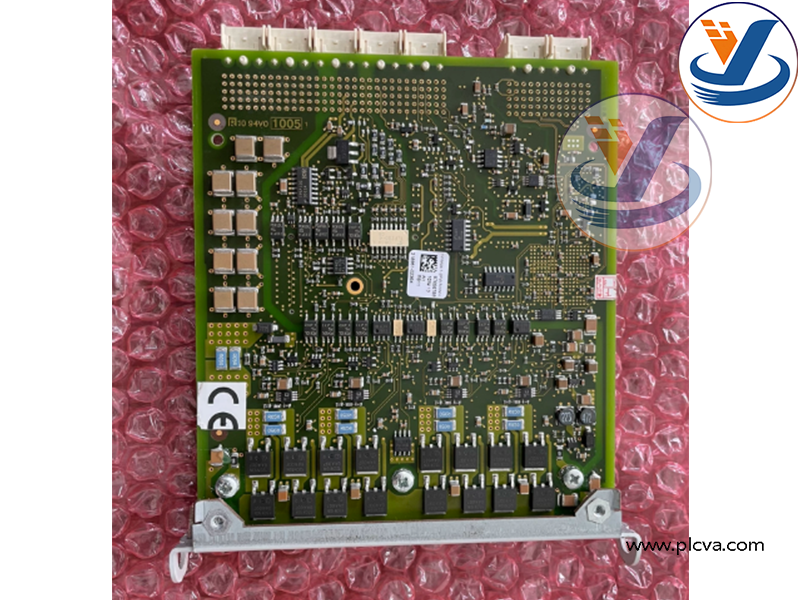

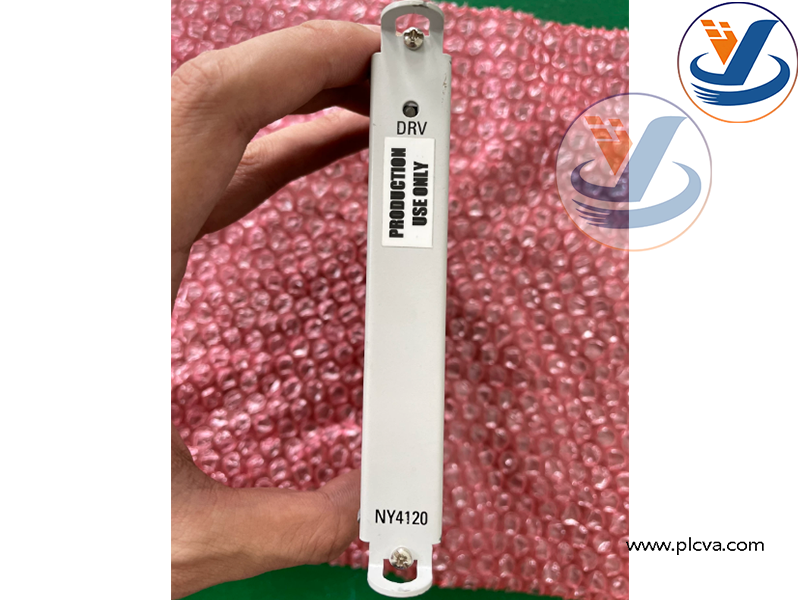

NY4120 is a rack‑mounted pulse‑width‑modulation servo drive module belonging to the NYCe 4000 motion‑control hardware family, delivering compact dual‑axis power amplification and closed‑loop motion control for small‑to‑medium‑power motors.

NYM04.1‑2PW‑NNNN‑NY4120

1. Dual‑axis Servo Power Driving It can drive two motor channels simultaneously, compatible with brushless‑AC (BLAC), brushless‑DC (BLDC), brushed‑DC and stepper motors.

• Supply voltage range: 15 V ‑ 75 VDC
• Continuous current: 7 A RMS per axis; peak current: 22 A per module
• Adjustable PWM switching frequency: 16 kHz to 96 kHz for low‑noise high‑dynamic performance.

2. Full‑closed‑loop Motion Control Supports S0/S90 quadrature encoder feedback for position‑loop, speed‑loop and current‑loop closed‑loop regulation. It realizes precise position, velocity and torque control for each independent axis. Built‑in encoder‑cable‑break detection function raises alarm once feedback signal is lost.
3. Integrated Hardware Protection & Diagnostics On‑board monitoring functions include over‑current protection, over‑temperature detection, power‑supply undervoltage and fault status reporting via backplane bus to the NYCe 4000 main controller. Fault codes help rapid troubleshooting and maintenance.
4. Backplane‑bus System Integration Installed inside NY‑series system housing, communicates with NYCe 4000 main‑control unit via internal backplane. Receives motion command setpoints from system CPU and outputs power signals to motors. Multiple drive modules can be combined to construct multi‑axis motion groups.
5. Variants Note NY4120/10 is a derivative version specially optimized for linear‑motor applications cooperating with NY4960 LMS multiplex module.

NYM04.1‑2PW‑NNNN‑NY4120

3. Applications

1. High‑precision Automation Equipment Deployed for multi‑axis positioning tasks in pick‑and‑place machines, handling robots, precision assembly stations, dispensing and bonding equipment. Ideal for machinery requiring compact multi‑axis servo layout.
2. Semiconductor & Electronic Manufacturing Equipment Used inside wafer‑handling devices, PCB processing machines and inspection machines. Meets demands for fast response, low vibration and high‑repeatability positioning.More products: www.plcva.com
3. Linear‑motion‑based Production Machines Pairs with Rexroth linear motor systems for high‑speed gantry systems. Executes synchronous or independent motion profiles for gantry‑type material transport systems.
4. Legacy‑system Spare‑part Replacement & Retrofit NYCe 4000 is a mature legacy motion‑control platform. NY4120 is widely used as spare drive module for existing production lines, avoiding complete replacement of whole control cabinets and protecting original system investment.
5. Laboratory‑grade & Special‑purpose Automation Machinery Applied in test‑bench motion subsystems and small‑volume special‑purpose machines, where moderate power and high‑resolution closed‑loop control are required.

NYM04.1‑2PW‑NNNN‑NY4120
