Main Functions

Acts as integrated eddy‑current probe driver and preamplifier, supplies excitation power to the matched proximity probe, processes gap‑related raw sensor signals from the eddy‑current probe and extension cable.
Converts shaft axial displacement (thrust position) measurement into standard 2‑wire 4‑20 mA loop current output, linearly corresponding to probe‑to‑target gap distance.
Provides buffered dynamic voltage output via BNC connector for on‑site gap adjustment, oscilloscope diagnosis and spectrum analysis of raw vibration signals.
Two‑wire loop‑powered design, operates on 17‑30 VDC industrial DC power supply; supports DIN‑rail or flat‑base cabinet mounting.
Built‑in circuit fault detection, monitors probe open‑circuit, short‑circuit and cable abnormal conditions, outputs corresponding fault state through loop current variation.
Certified for intrinsically‑safe hazardous‑area installation, meets CSA safety standards for industrial field deployment.
Calibrated for 5 mm / 8 mm probe tip, measurement range 20‑80 mils axial displacement for thrust monitoring.

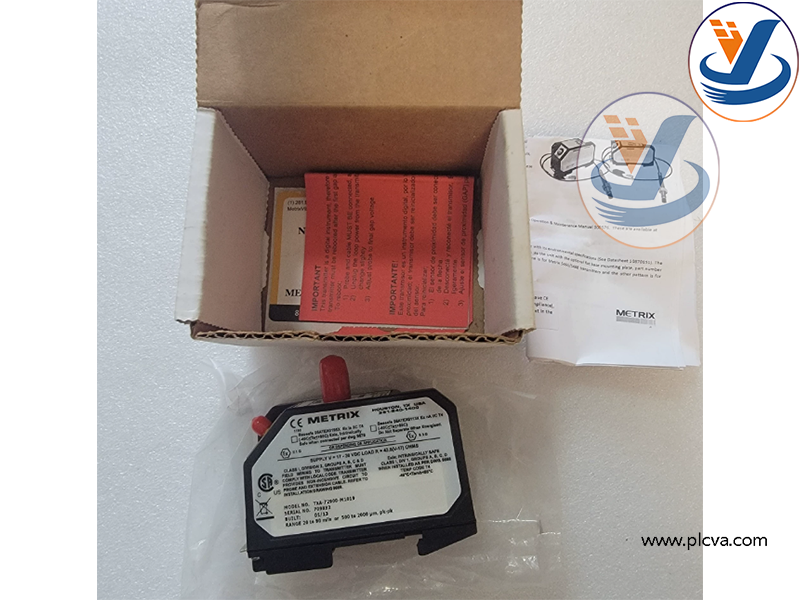

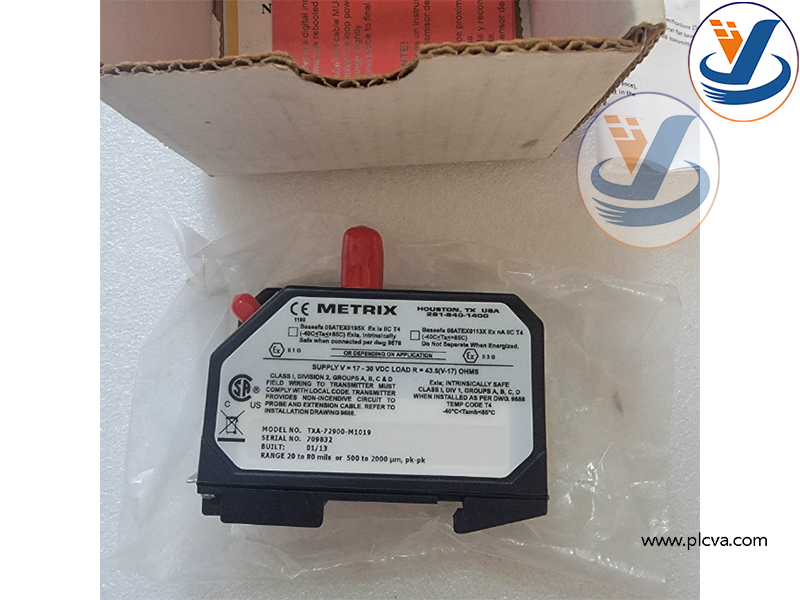

Metrix TXA‑72900‑M1019

Axial thrust / shaft position monitoring for rotating machinery equipped with fluid‑film bearings.
Applied on steam turbines, gas turbines, turbo‑compressors, large centrifugal pumps, generators, blowers and critical gear‑units in petrochemical, power‑plant and energy industries.
Delivers standardized 4‑20 mA signals to PLC, DCS, vibration monitoring system or local indicator for real‑time shaft thrust position tracking and machine protection interlock.plcva.com
Serves as maintenance spare‑part for existing running Metrix TXA series monitoring systems; cannot work independently, must pair with compatible proximity probe and matched extension cable.
Replaces traditional rack‑mount vibration monitor modules for cost‑effective field‑mount shaft‑position measurement.
