1.Main Functions

IMR6000/10 is a modular 19‑inch rack chassis, serving as the mechanical and electrical backbone for MMS6000 monitoring system, not a signal‑processing monitor module itself.

Emerson EPRO IMR6000/10 System Frame

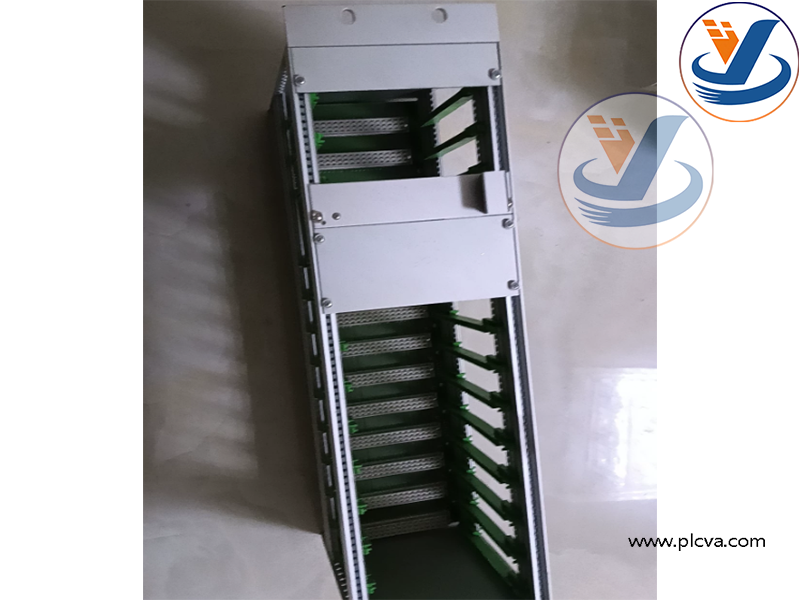

1. Modular Card Housing & Mechanical Support Standard 3U 19‑inch rack‑mount frame. It provides up to 10 slots for MMS6000 series monitor cards (vibration, displacement, speed, temperature monitors), plus dedicated slots for logic board and communication interface modules. All plug‑in modules can be hot‑swapped for maintenance without system shutdown.
2. Integrated Backplane Power Distribution Internal backplane delivers regulated +24 VDC power to all inserted modules. It supports dual redundant 24 VDC power inputs with diode decoupling to enhance power‑supply reliability for critical rotating‑machinery applications.
3. Internal Backplane RS‑485 Communication Bus Embedded RS‑485 bus on the backplane enables inter‑module data exchange inside the rack. All monitoring cards share this bus to transmit measurement data, alarm status and fault information to interface modules for uploading to DCS, SCADA or host monitoring software.

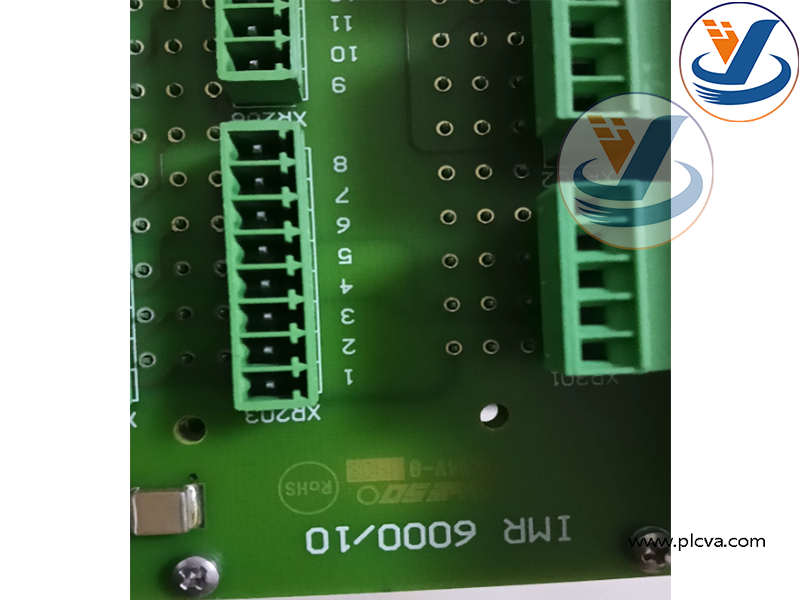

4. Centralized Field‑signal Termination Rear side of the frame is equipped with mass spring‑cage terminal blocks. Field sensor signals (eddy‑current probe, vibration transducer, speed sensor, temperature signal), power supply and alarm relay signals are terminated at rear terminals, then routed to individual monitor modules via internal backplane wiring. It greatly reduces complex field wiring work.More products: www.plcva.com
5. Hardware Configuration & System Expansion System topology settings can be configured via on‑board DIP switches and hardware jumpers. Multiple IMR6000 series frames can be interconnected to expand monitoring channels for multi‑machine setups, complying with API 670 machinery‑protection standard requirements.

Emerson EPRO IMR6000/10 System Frame

2. Applications

1. Turbomachinery Protection in Power Plants Deployed in steam turbine, gas‑turbine monitoring cabinets for thermal‑power plants and combined‑cycle power stations. It holds MMS6000 monitor cards to supervise shaft vibration, shaft displacement, thrust position, rotating speed and bearing temperature of turbo‑sets.
2. Oil & Gas and Petrochemical Critical Rotating Equipment Used for centrifugal compressors, large pumps, expanders on refinery and petrochemical sites. Real‑time condition monitoring and protection prevents catastrophic equipment failure, fulfills safety interlock requirements for process units.
3. Heavy‑industry Rotating‑machinery Condition Monitoring Applied in metallurgy, chemical, mining industries for large‑scale rotating equipment condition monitoring systems. It builds modular TSI (Turbine Supervisory Instrumentation) system for critical production assets.
4. Retrofit & Spare‑part Replacement for Legacy EPRO Systems Popular spare chassis for existing MMS6000 installations. Replace damaged original rack without replacing all monitor cards, protecting existing system investment and minimizing production downtime.
5. Industrial Machinery Predictive‑maintenance System Works with Emerson AMS asset‑management software, collecting machinery health data for predictive maintenance, early fault warning and equipment‑life assessment.
