AMAT

Core Functions

1. DeviceNet Field‑bus Communication Interface: Acts as DeviceNet slave node, implementing DeviceNet protocol physical layer and data link layer. It establishes digital communication between AMAT tool main controller and downstream MKS vacuum components, mass‑flow controllers (MFCs), pressure transducers and actuators.More products: www.plcva.com
2. Bidirectional Real‑time Data Exchange: Transmits process setpoints (gas flow, pressure set value) from the equipment host controller to MKS field devices; feeds back measured values, device status, fault codes and diagnostic alarms back to the main system CPU.

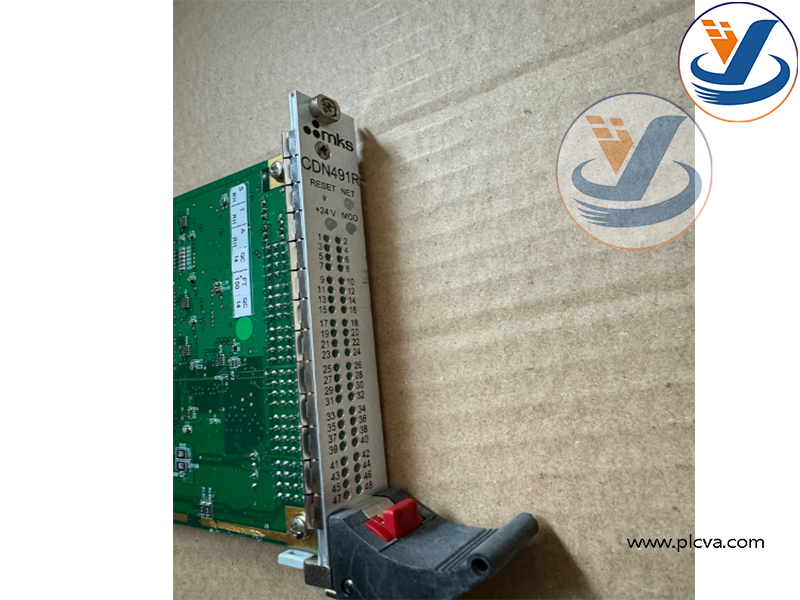

AMAT 0190‑27072 MKS CDN491R DeviceNet Control Card

1. Signal Isolation & Noise Immunity: On‑board galvanic isolation circuitry protects both the host controller and field instruments against electrical noise, ground loop interference in high‑EMI plasma processing chamber environment of semiconductor tools.
2. DeviceNet node management: Supports DeviceNet node address configuration, baud‑rate setup, device health monitoring, fault reporting. It reports communication drop‑out or peripheral device failure to the tool host for equipment interlock protection.plcva.com
3. OEM firmware tailored for AMAT tools: Pre‑loaded dedicated firmware for Applied Materials process platforms. It simplifies device mapping, reduces integration effort between MKS vacuum components and AMAT equipment control architecture.

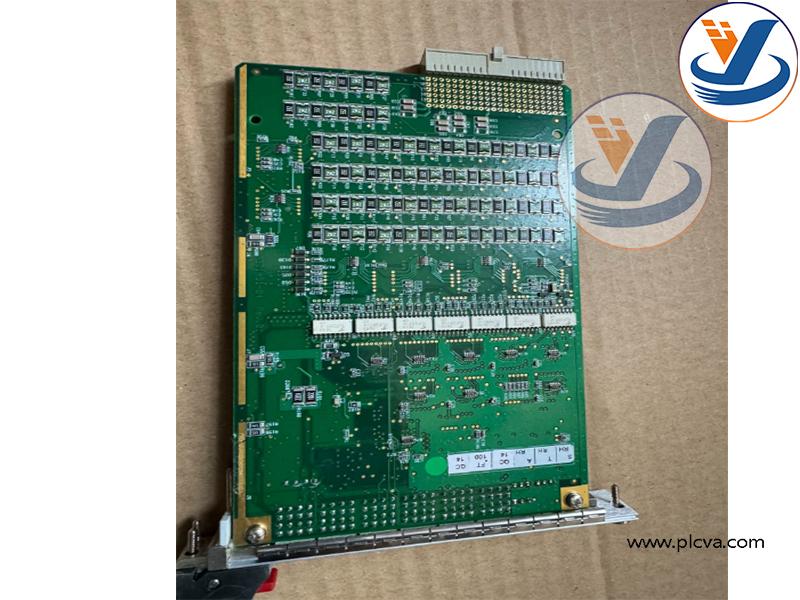

AMAT 0190‑27072 MKS CDN491R DeviceNet Control Card

Applications & Use Cases

This is an OEM‑exclusive spare part for Applied Materials semiconductor wafer fabrication equipment, primarily deployed on PVD, CVD, etch process platforms (including AKT PVD, Endura, Centura series tools).

AMAT 0190‑27072 MKS CDN491R DeviceNet Control Card

1. Vacuum subsystem communication gateway: Connect MKS mass flow controllers, Baratron pressure sensors, vacuum valves inside process chamber to the tool’s main VME‑based system controller via DeviceNet bus.More products: www.plcva.com
2. Semiconductor process recipe execution: Deliver gas‑flow, pressure recipe parameters to MKS field hardware; collect real‑time process readings for wafer thin‑film deposition and etching recipes.
3. Equipment fault diagnosis & interlock safety: Relay device failure, over‑range, alarm signals to the host system, trigger tool safety interlock to protect wafers and process hardware when abnormal conditions occur.
4. Fab equipment maintenance & retrofit: Used for field replacement of defective DeviceNet interface boards, spare‑part inventory for existing AMAT production tools; supports legacy equipment lifecycle extension without full‑controller redesign.
