Main Functions

Acts as the local I/O control interface for the MESA C3 process chamber, bridging the main system host controller and chamber‑level field sensors, actuators, valves, and interlock circuits.
Collects real‑time digital & analog status signals from chamber hardware: pressure sensors, temperature transducers, limit switches, door interlocks, gas valve feedback.
Executes output commands to drive chamber actuators: solenoid valves, relays, pump interlock controls, safety interlock logic.

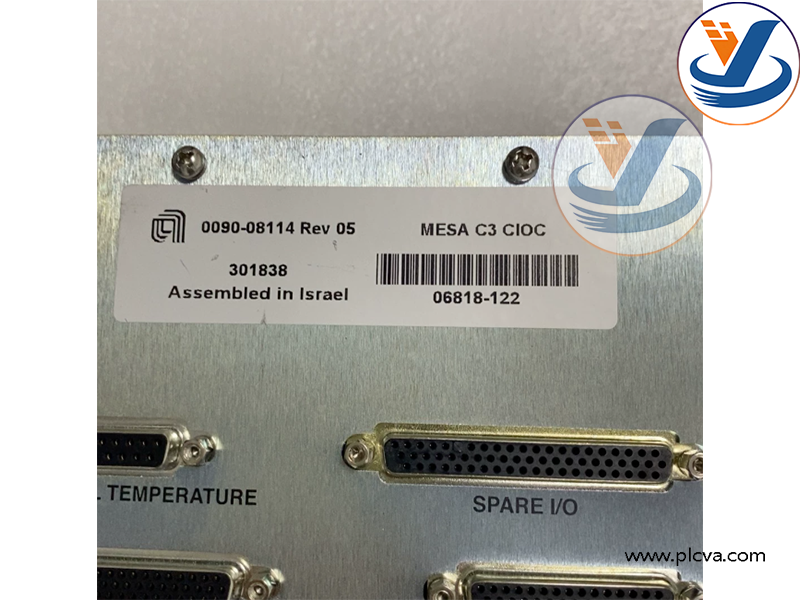

AMAT Applied Materials MESA C3 CIOC Controller Box 0090‑08114 Rev 05

Handles chamber safety interlock logic: triggers protective hardware interlock responses for abnormal states (door open, over‑temp, pressure fault) to stop process execution.
Communicates with the AMAT system main controller via proprietary field bus, transmits chamber diagnostic data and fault alarm codes.
Local signal conditioning: filters, buffers and isolates field I/O signals to suppress noise inside semiconductor process tool.

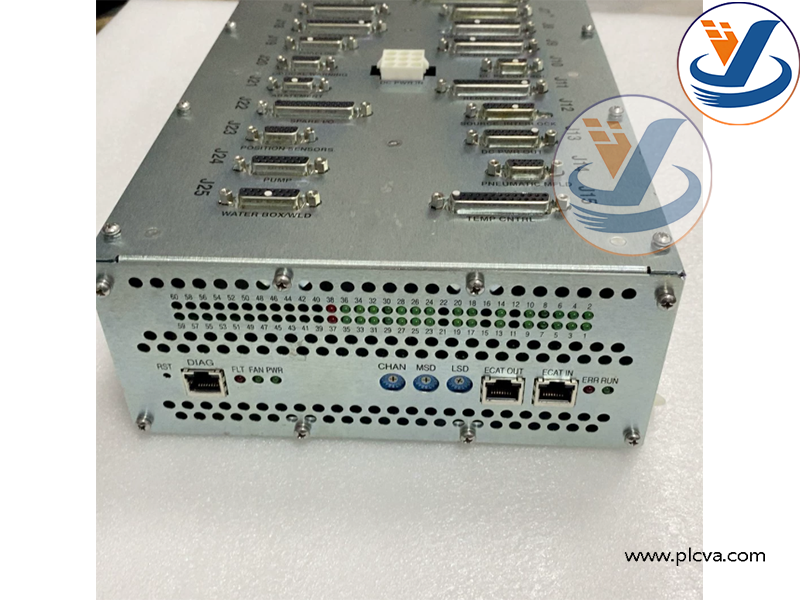

AMAT Applied Materials MESA C3 CIOC Controller Box 0090‑08114 Rev 05

Designed exclusively for Applied Materials MESA C3 process chamber, widely deployed on AMAT semiconductor etch / deposition wafer processing tools.More products: www.plcva.com
It is a chamber‑specific peripheral control box, installed inside the tool equipment frame close to the MESA C3 process chamber.

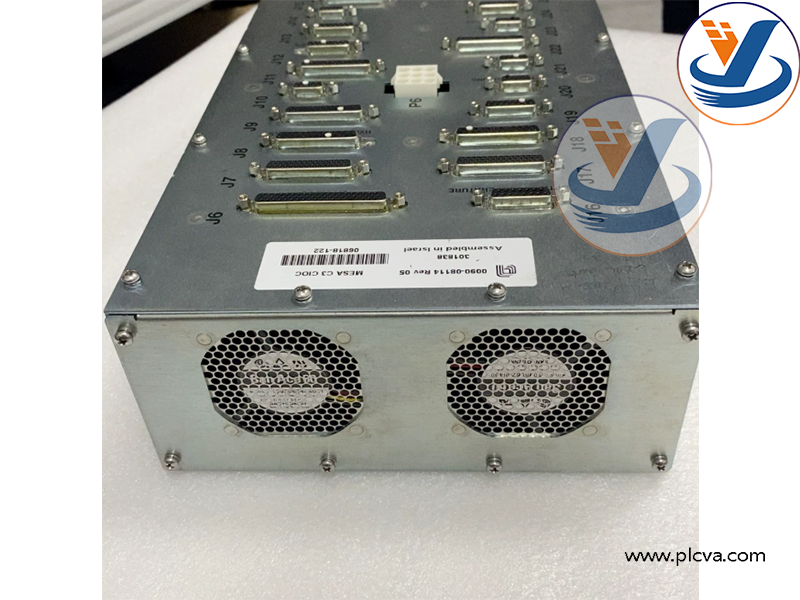

AMAT Applied Materials MESA C3 CIOC Controller Box 0090‑08114 Rev 05

Responsible for all local input‑output management of the process chamber during wafer fabrication, supporting plasma etching, thin‑film deposition process sequences.
Monitors chamber health status, provides fault diagnostics for equipment maintenance; ensures process repeatability and operator safety through hardware interlock protection.
Part number 0090‑08114 Rev05 is a hardware revision variant, used as OEM spare replacement unit for fab equipment maintenance to restore chamber I‑O control capability.
