Core Functions

1. AC motor variable‑speed power conversion: Converts fixed‑voltage industrial AC input into adjustable‑frequency, adjustable‑voltage three‑phase AC output. Realizes stepless speed regulation for asynchronous motors or synchronous servo motors.More products: www.plcva.com
2. Integrated power stage & drive circuit: Embedded IGBT power switching components, gate drive circuit, current‑voltage sampling detection circuit. Executes PWM pulse‑width‑modulation algorithm to control motor torque, rotating speed and acceleration‑deceleration ramps.
3. Multi‑level hardware protection: Built‑in over‑current, over‑voltage, under‑voltage, over‑temperature, short‑circuit and motor overload protection functions. Triggers fault latch and shutdown action under abnormal working conditions to protect power module and driven motor.
4. Control interface signal interaction: Receives speed reference, run/stop and direction commands from upper‑level controller or main CPU board; feeds back real‑time operating data including output current, motor speed, module temperature and fault alarm codes to host control system.
5. Industrial noise suppression & thermal management: Optimized power‑loop layout for EMI suppression in noisy factory cabinet environment. Matched heat‑dissipation structure ensures stable continuous heavy‑load operation.
6. Fault self‑diagnosis: On‑board status LED indicators show power‑on, running status and fault codes, supporting quick on‑site troubleshooting and maintenance.

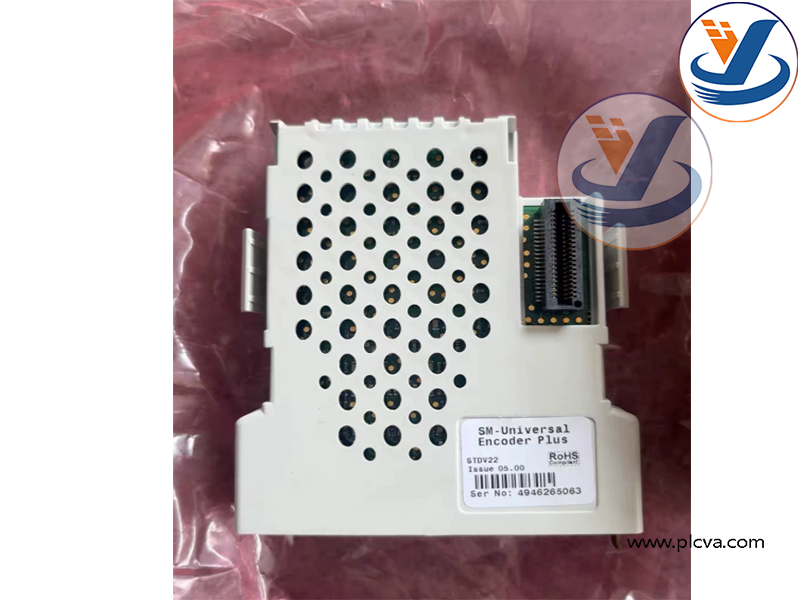

Emerson STDV22 Inverter Module, Part‑No. 82000000011310

Applications & Use Cases

STDV22 (82000000011310) is Emerson modular power inverter spare‑part for industrial automation equipment.plcva.com

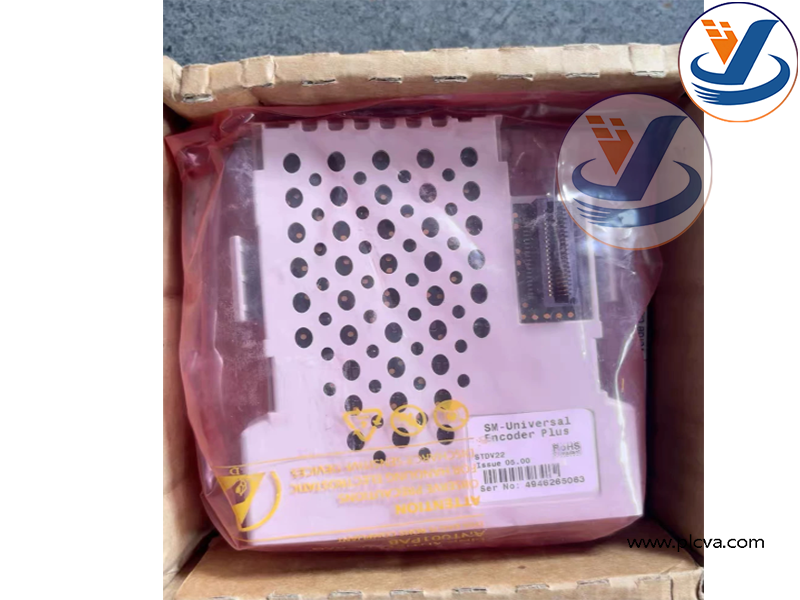

Emerson STDV22 Inverter Module, Part‑No. 82000000011310

1. Industrial machinery motor driving: Speed and torque control for conveyors, material‑handling equipment, packaging machines, textile machinery and general‑purpose production‑line actuators.
2. Fan & pump energy‑saving variable‑speed control: Applied to water‑treatment, HVAC and process auxiliary systems, adjusting motor speed according to process demand to reduce energy consumption.
3. OEM equipment integrated drive solution: Used as embedded power module inside special‑purpose OEM machinery control cabinets, cooperating with main control board to complete motor motion control.More products: www.plcva.com
4. Legacy system spare‑part replacement: New‑original spare unit for existing equipment fitted with STDV22 modules. Field swap of defective power modules extends service life of running production systems without redesigning the whole drive control architecture.
5. General‑purpose industrial variable‑speed scenarios: Suitable for harsh industrial‑cabinet environment with vibration, temperature fluctuation and electromagnetic interference.

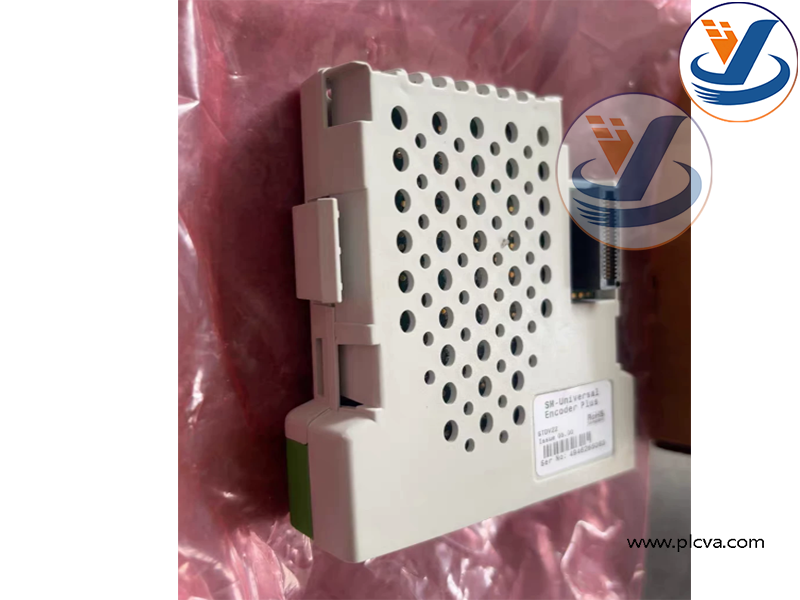

Emerson STDV22 Inverter Module, Part‑No. 82000000011310

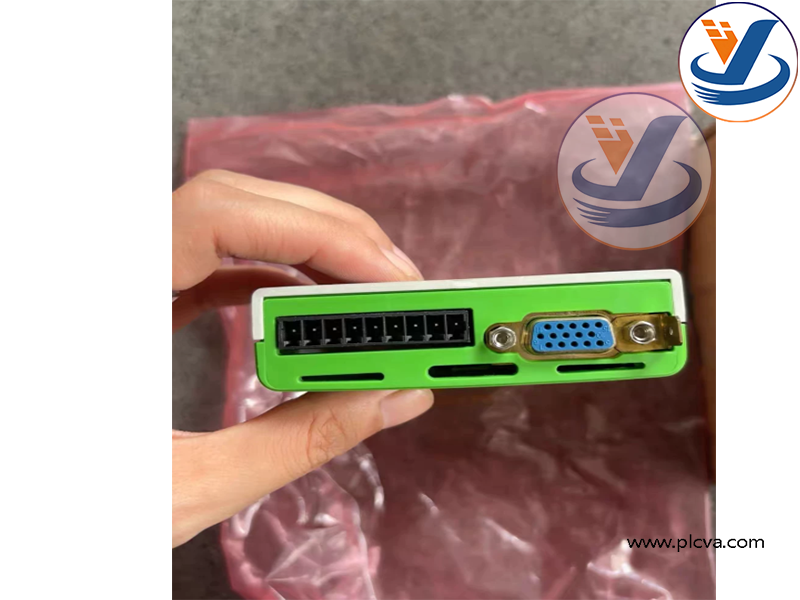

Emerson STDV22 Inverter Module, Part‑No. 82000000011310

Emerson STDV22 Inverter Module, Part‑No. 82000000011310
