Main Functions

Comprehensive generator electrical protection (ANSI‑coded protection elements) Provide full‑range fault protection for synchronous / induction generators, including stator differential (87G), loss‑of‑excitation (40), reverse power / anti‑motoring (32), negative‑sequence overcurrent (46), over‑excitation Volts‑per‑Hertz (24), over‑current, under‑voltage / over‑voltage (27/59), over‑frequency / under‑frequency (81), 100% stator ground fault protection, inadvertent energization protection, breaker‑failure protection. It will issue alarm signals or execute trip commands when abnormal conditions occur.More products: www.plcva.com
Thermal & mechanical condition monitoring Receive RTD and analog sensor signals to monitor stator winding temperature, bearing temperature and bearing vibration; implement thermal overload protection for rotating equipment.

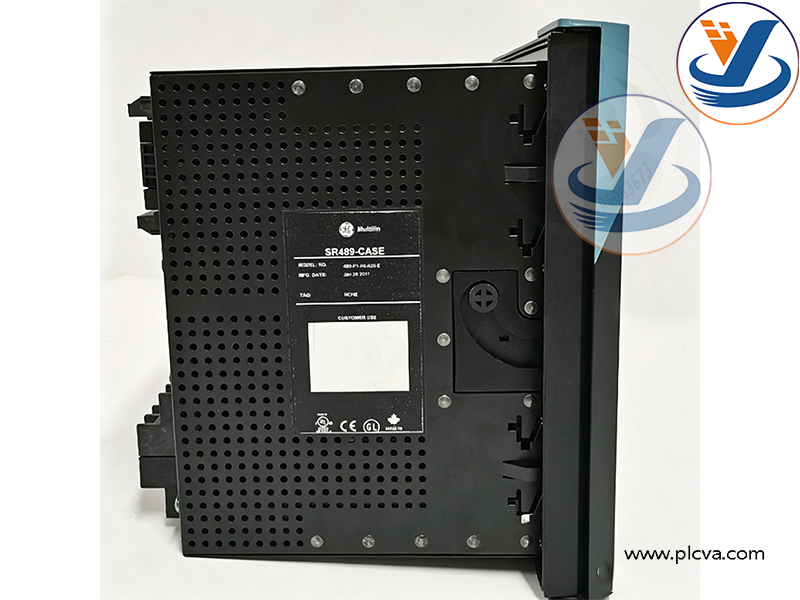

GE SR489‑P1‑HI‑A20‑E GENERATOR MANAGEMENT RELAY

High‑precision power metering Measure three‑phase voltage, current, active power MW, reactive power MVAR, power factor, frequency, energy kWh; support local reading and remote data upload via analog 4‑20 mA outputs.
Generator control & automation logic Support generator synchronization check, load shedding, programmable logic, breaker control, trip‑coil supervision, start‑stop interlock logic for generator sets.
Fault recording & event diagnostics Sequence‑of‑Events (SOE) log, oscillographic fault waveform capture, IRIG‑B time‑stamping; store fault history for post‑fault analysis and troubleshooting.
Multi‑protocol industrial communication Equipped with RS232, RS485 and Ethernet interfaces; support Modbus‑RTU, Modbus‑TCP, DNP3.0 for connecting to SCADA, DCS and PLC systems for remote monitoring and setting modification.
Self‑diagnosis & hardware monitoring Real‑time self‑check of internal hardware, power‑supply status and I/O circuits; report internal device faults to avoid invalid protection action.
Flexible I/O capability Configurable digital inputs, 6 programmable trip/alarm relay output contacts, 4‑20 mA analog outputs for field signal conversion.plcva.com

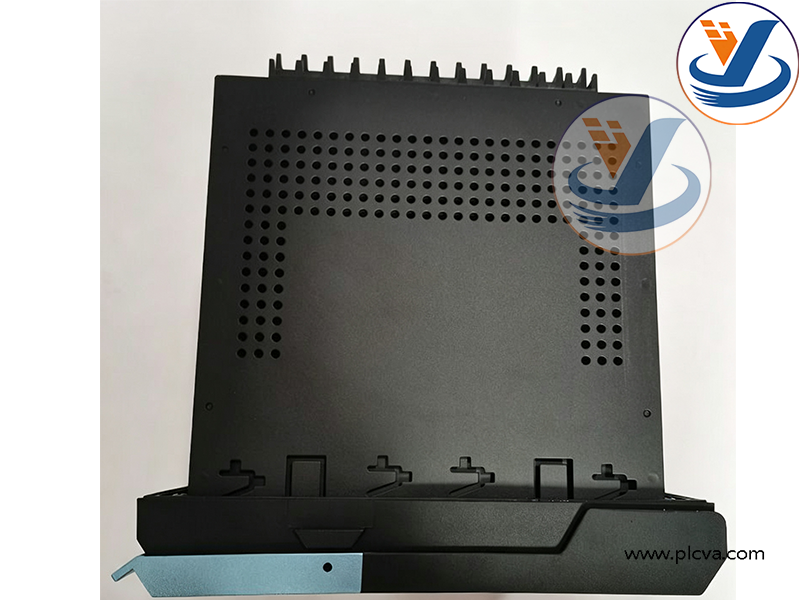

GE SR489‑P1‑HI‑A20‑E GENERATOR MANAGEMENT RELAY

Industrial on‑site power plants & cogeneration systems Serve as primary or backup protection unit for synchronous / induction generators in chemical, steel, mining plants; manage grid‑parallel operation for self‑generation cogeneration units.
Emergency & standby generator systems Applied for critical‑load backup power such as data centers, hospitals, utility backup power stations; protect diesel/gas turbine standby generators during black‑start and grid‑island operation.
Distributed energy generation stations For small‑medium gas‑fired generator sets, combined heat‑and‑power units; realize grid‑connection protection, islanding detection and power‑balance control.plcva.com
Marine & offshore power systems Deployed on vessel power cabins and offshore platforms to protect ship‑board generators under heavy‑vibration marine operating conditions.
Utility small‑scale power generation facilities Used for independent power producer (IPP) generator units, providing fault isolation, metering and remote monitoring.
Retrofit & spare‑part replacement for legacy power‑control cabinets Commonly used as drop‑in replacement spare relay for existing 489‑series installations, avoiding complete redesign of generator protection cabinets.
