Main Functions

5‑phase stepper motor power driving: Drives 10‑wire five‑phase stepper motors (VRDM series), AC 220‑240V mains input, outputs phase current for motor winding operation.
Integrated positioning controller: Built‑in position‑loop logic, supports point‑to‑point positioning, speed adjustment, acceleration‑deceleration profile generation, single‑axis closed‑loop motion control without external position controller.More products: www.plcva.com

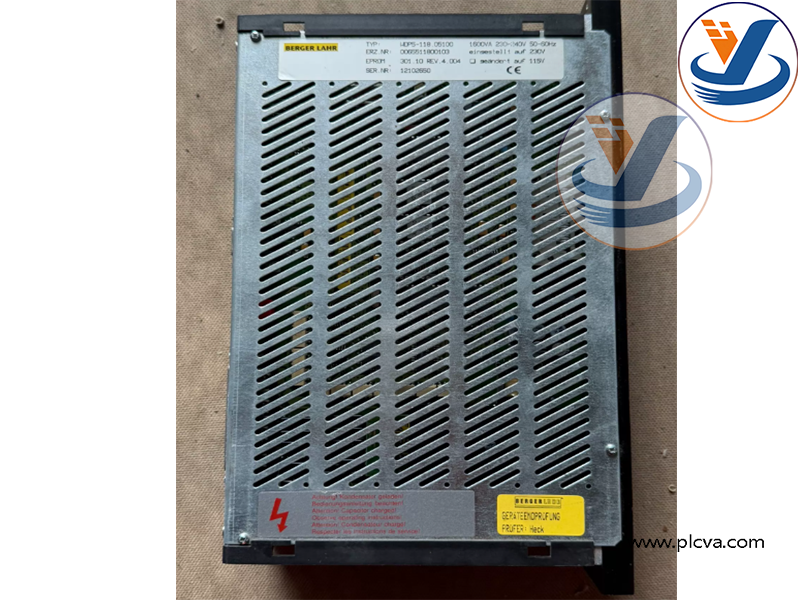

BERGER LAHR WDP5‑118.05100 5‑Phase Stepper Positioning Drive Unit

Multi‑interface control access: Supports pulse‑direction input, parallel I/O control, RS485/RS422 serial bus communication; can be controlled by PLC, host computer or upper‑level NC system; multiple units can be networked for multi‑axis system layout.
Micro‑stepping operation: High‑resolution micro‑stepping algorithm to achieve smooth low‑speed running, reduce motor vibration and noise, improve positioning resolution.
Fault diagnosis & status indication: Onboard digital display and LED status lamps; detects over‑current, over‑voltage, motor phase loss, over‑temperature, with protective shutdown function; local status readout for on‑site troubleshooting.plcva.com

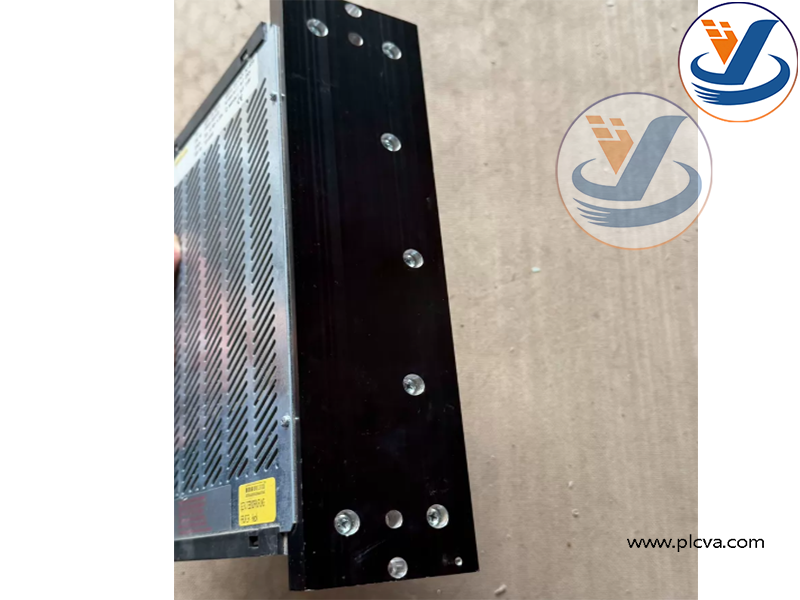

Wall‑mount cabinet installation: Designed for cabinet wall mounting, completes single‑axis power drive + positioning control all‑in‑one, no extra separate controller required.

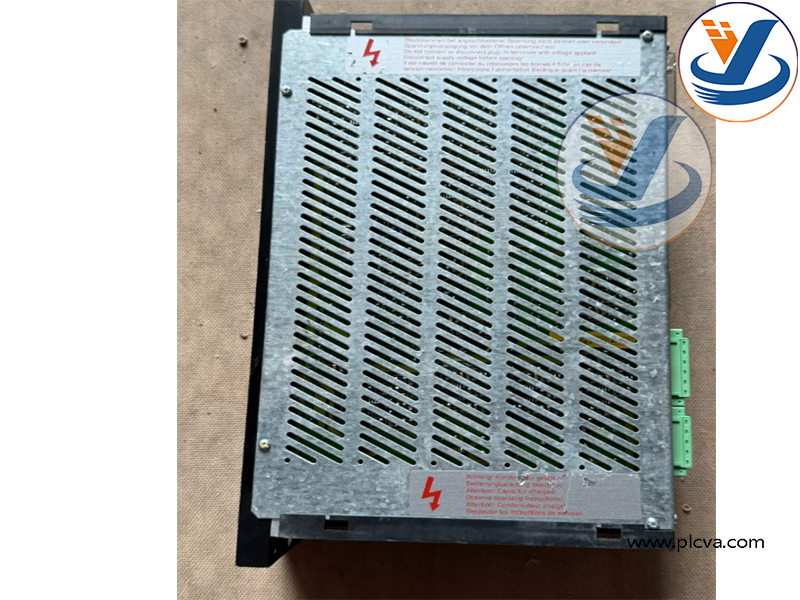

BERGER LAHR WDP5‑118.05100 5‑Phase Stepper Positioning Drive Unit

Precision industrial automation machinery: Used for positioning axes on printing machines, packaging equipment, textile machinery, material handling and processing equipment, demanding accurate indexing and positioning.plcva.com
Machine‑tool auxiliary axes: Applied for tool magazine, tool changer, workpiece feeding auxiliary axis of legacy CNC machine tools, widely used as spare‑part replacement for old European‑origin equipment.plcva.com

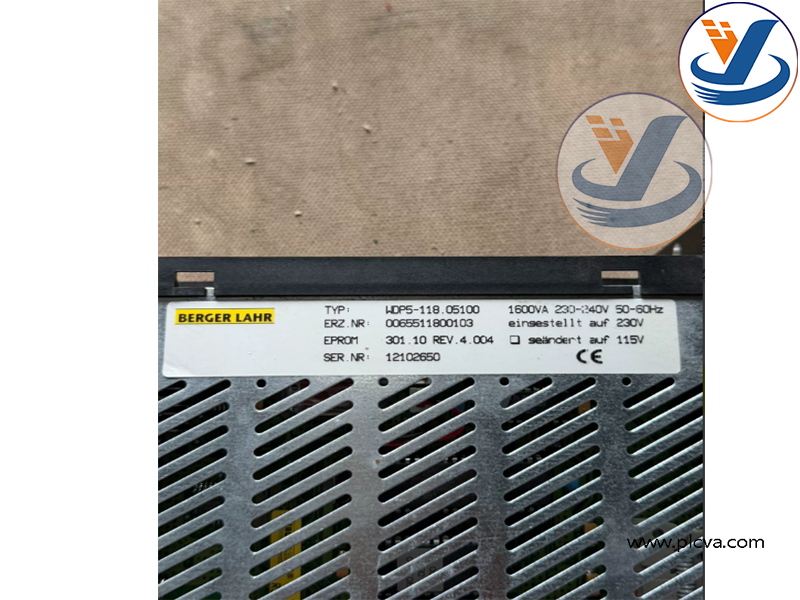

BERGER LAHR WDP5‑118.05100 5‑Phase Stepper Positioning Drive Unit

Special‑purpose positioning equipment: Automatic assembly stations, test‑bench motion axes, rotary indexing tables, for applications requiring high‑accuracy stepping positioning.
Retrofit & maintenance: This model is discontinued by original manufacturer, mainly used as spare drive for existing production lines with Berger Lahr 5‑phase stepper systems.
