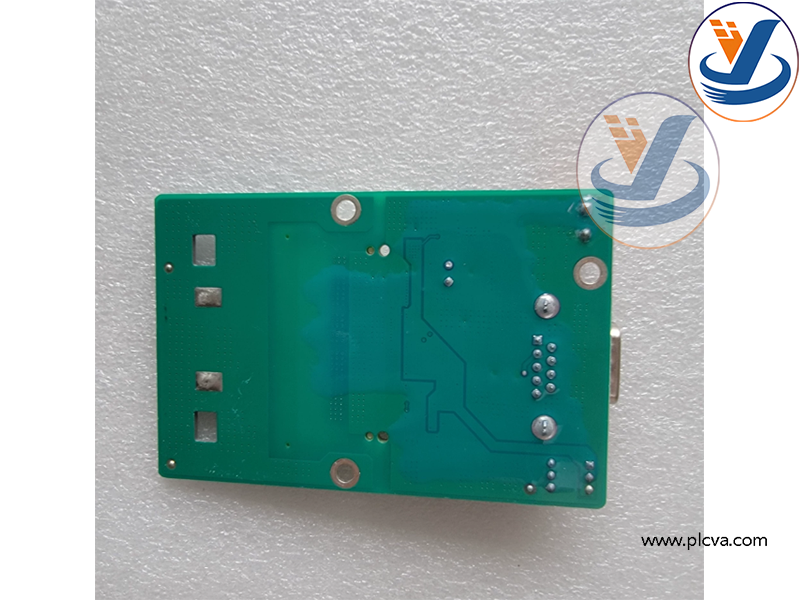

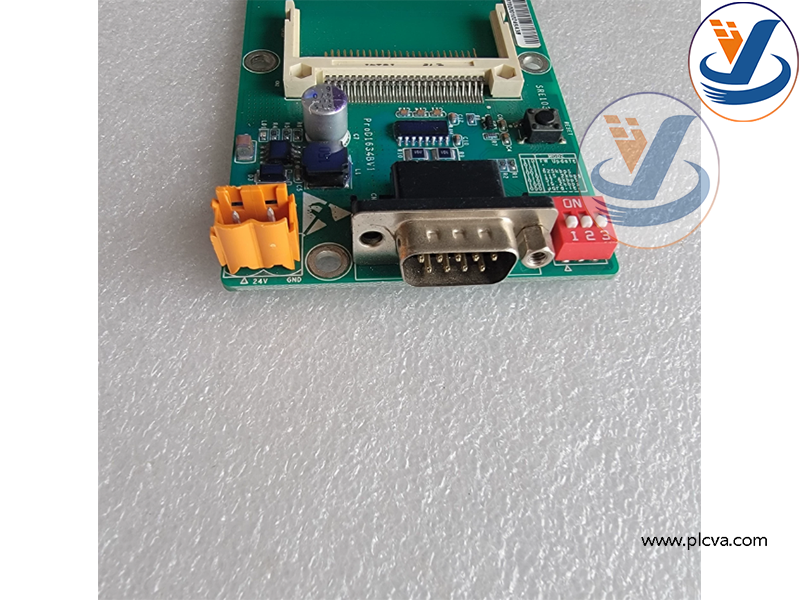

Anybus SRE1031, Part‑No. ProD1634BV1, Embedded Industrial Fieldbus Communication Interface Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Functions

Embedded Protocol Conversion & Fieldbus Interface It is an embedded plug‑in communication board developed by HMS Anybus. It realizes protocol translation between device internal host interface and mainstream industrial fieldbus / industrial Ethernet protocols. It converts device‑internal data into standard fieldbus process data for PLC or host controller access.
Real‑time Cyclical Data Exchange Performs bidirectional cyclic I/O data transmission between local equipment and upper‑level automation controllers. Supports process data mapping, data buffering and hardware‑accelerated byte‑swap (endian conversion) for consistent data interpretation across different control platforms.plcva.com

Anybus SRE1031, Part‑No. ProD1634BV1, Embedded Industrial Fieldbus Communication Interface Board

Multi‑protocol Firmware‑selectable Support Supports loading different firmware images to enable multiple industrial communication protocols, such as PROFINET, EtherNet/IP, Modbus‑TCP, PROFIBUS‑DP, CANopen. No hardware modification required for protocol switching.
Host‑side Hardware Interface Connects to the main CPU board of machinery or equipment via onboard connector. Exchanges internal device status, set‑points, fault information and operating parameters between local device and communication chip.
On‑board Diagnostic & Status Indication Equipped with LED indicators for power supply, network link status, running state and communication fault. Provides hardware self‑diagnosis for bus error, configuration error and hardware anomaly for on‑site troubleshooting.
Industrial‑grade Hardware Design PCB form factor for internal embedded installation inside machinery or control cabinets. Works with 24VDC industrial power supply, features surge‑resistance and EMC compliance for harsh industrial environment.

Note: SRE1031 (ProD1634BV1) belongs to Anybus embedded OEM communication board series, mainly supplied as original embedded spare part for third‑party OEM equipment, not sold as standalone retail unit. Some batches are legacy stock parts.

Anybus SRE1031, Part‑No. ProD1634BV1, Embedded Industrial Fieldbus Communication Interface Board

Applications

This embedded communication board is OEM dedicated communication spare component for industrial machinery and automation equipment:

OEM machinery integration: Embedded inside frequency converters, motor drives, testing equipment, packaging machines and special‑purpose machinery to add fieldbus communication capability.
Industrial equipment retrofit & spare replacement: Replace failed original Anybus communication board on existing production machines, restore fieldbus communication between local equipment and PLC control system.plcva.com
Factory automation lines: Realize data interaction between field devices and central PLC control network; transmit equipment running parameters, production status and fault alarms.
Discrete manufacturing: Used for assembly lines, material handling equipment to achieve standardized fieldbus data communication without redesigning device main‑board hardware.
