BENTLY NEVADA

Main Functions

Non‑contact eddy‑current sensing: Measures clearance, dynamic vibration and static displacement of metallic rotating shafts without physical contact, no mechanical wear during operation。
11 mm large linear measurement range: Nominal scale factor 3.94 V/mm (100 mV/mil), wider linear range compared with standard 8 mm probe, suitable for large shaft clearance variation scenarios.
Metric threaded installation: Metric thread design for metric‑standard equipment mounting; compatible with matched extension cable and Proximitor sensor, modular interchangeable architecture.More products: www.plcva.com
Harsh‑environment adaptability: Resists oil mist, dust and vibration; supports long‑term continuous online measurement in machinery compartments.
Signal source for monitoring system: Output high‑frequency dynamic raw signal to Proximitor sensor; converted into standard voltage signal for subsequent monitors (such as 2300/20, 3500 series) to process vibration, position and Keyphasor phase trigger signals.
Support both static & dynamic measurement: Static thrust / axial position measurement; dynamic radial shaft vibration measurement; can also be used for zero‑speed, tachometer and phase reference acquisition.

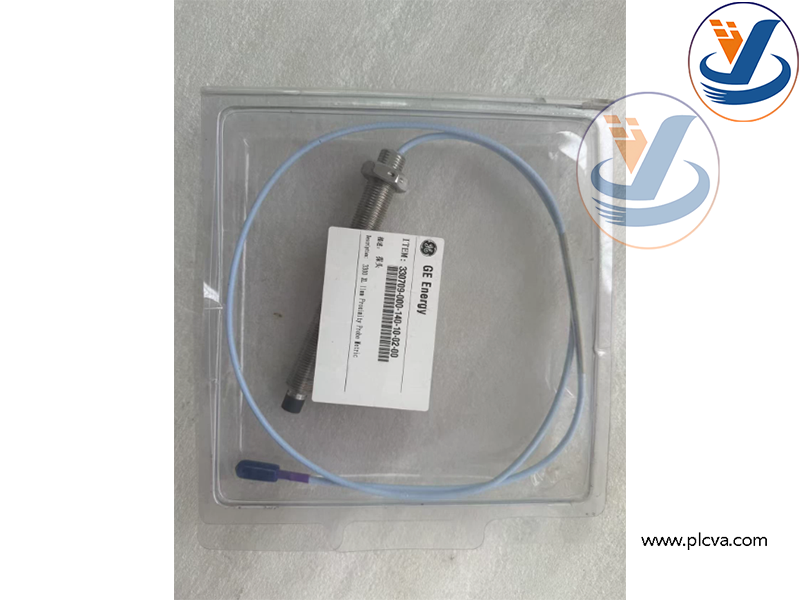

330709‑000‑140‑10‑02‑00

Target equipment: Steam turbines, gas turbines, centrifugal compressors, large‑size pumps, high‑speed motors, reciprocating compressors and other critical rotating machinery with oil‑film bearings.
Main measuring objects: Radial shaft vibration, thrust‑bearing axial position, rotor differential expansion, rod‑drop position, Keyphasor phase signal and rotational speed pickup.
Industry: Oil & gas, petrochemical, power plant, energy, heavy‑duty process industry.
Purpose: Core sensor for machinery protection & predictive maintenance system; capture early faults including unbalance, misalignment, thrust‑bearing wear, rotor rub‑impact; feed data to monitor / DCS / PLC for alarm and trip interlock, comply with API‑670 industry standard requirements.
