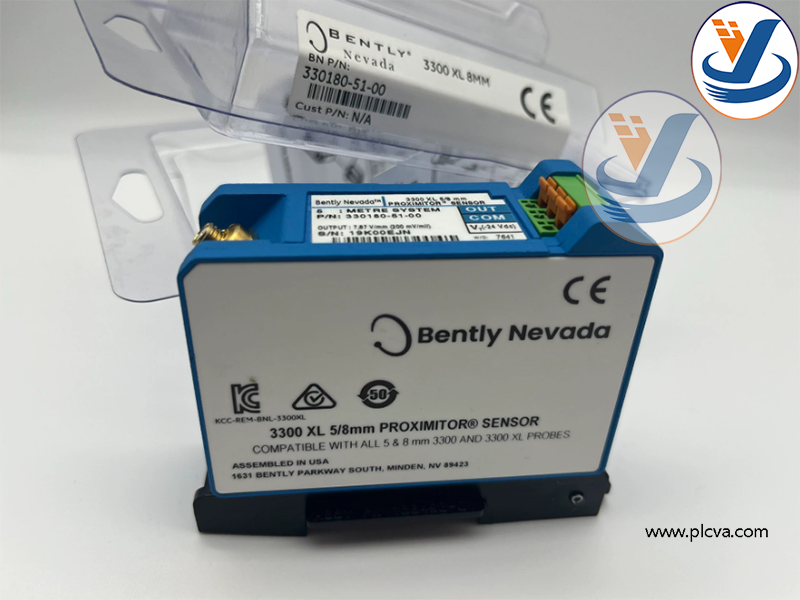

Bently Nevada 330180‑51‑00 3300 XL 8mm Proximitor Sensor
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Main Function
- Provides high‑frequency excitation signal for non‑contact eddy‑current proximity probe, converts probe coil impedance variation caused by metal target gap change into proportional DC voltage output, nominal sensitivity 7.87 V/mm (200 mV/mil).plcva.com
- Supports both static displacement measurement and dynamic vibration measurement; frequency response 0‑10 kHz, linear measuring range 2 mm.
- Requires negative DC power supply ‑17.5 Vdc ~ ‑26 Vdc; outputs conditioned analog gap signal to Bently Nevada 3500 monitor modules or other external acquisition devices.
- DIN‑rail mount design, also compatible with traditional panel mounting; isolated mounting base, excellent RFI/EMI anti‑interference performance, compliant with API‑670 machinery monitoring standard.
- Matches 5‑meter overall cable system (probe plus extension cable); monitors probe cable integrity for open‑circuit or short‑circuit fault conditions.
- SpringLoc quick‑wiring terminals for reliable field wiring without special tools, wide industrial operating temperature range.

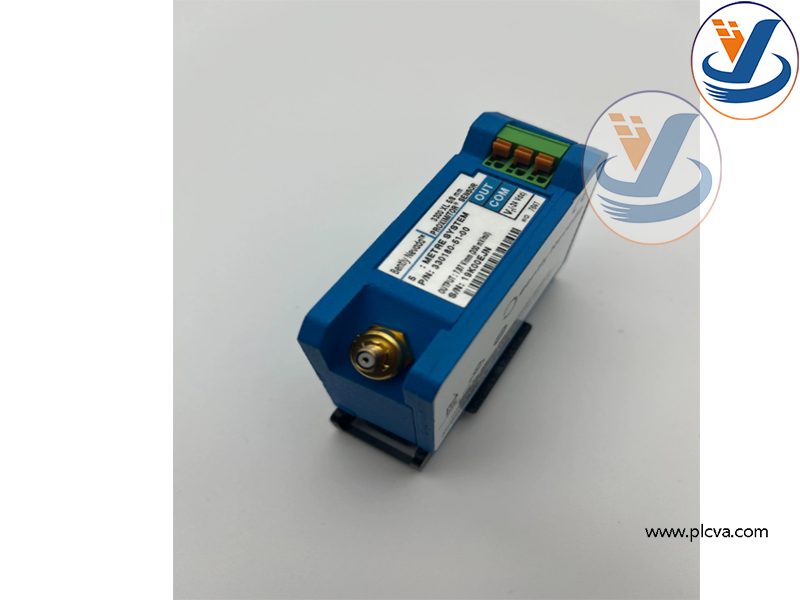

Bently Nevada 330180‑51‑00 3300 XL 8mm Proximitor Sensor
Application & Purpose
- Core signal‑processing unit of Bently Nevada 3300‑XL eddy‑current sensor system, paired with proximity probe and extension cable, feeds signals into 3500 series machinery protection rack.
- Used for rotating‑machinery condition monitoring: shaft radial vibration, axial thrust displacement, shaft eccentricity, differential expansion, key‑phase speed measurement on oil‑film bearing equipment.plcva.com
- Typical monitored equipment: steam turbines, gas turbines, centrifugal compressors, generators, large pumps, blowers.
- Widely deployed in thermal power, oil & gas refineries, petrochemical, metallurgy industries. Delivers analog measurement signals for machinery alarm, trip protection and equipment health diagnosis.

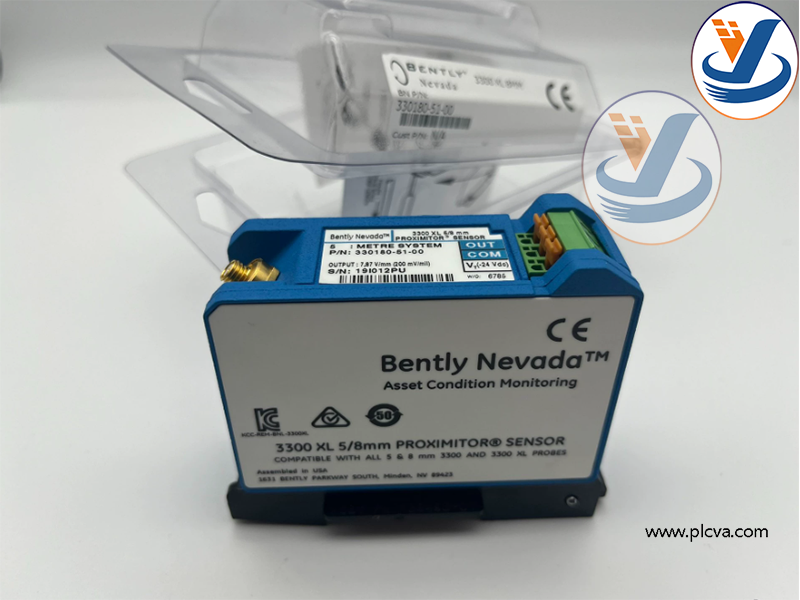

Bently Nevada 330180‑51‑00 3300 XL 8mm Proximitor Sensor
