Main Functions

1. 8-axis Independent & Synchronous Motion Control It supports up to 8 axes of servo or stepper control. Each axis supports point-to-point positioning, constant-speed movement, speed override and position override during motion. Pulse output range: 0.1 pps ~ 6.55 Mpps. It can trigger simultaneous start/stop across multiple axes for synchronized motion.www.plcva.com
2. Hardware Interpolation & Motion Profile Built-in hardware interpolation engine: 2-axis circular interpolation, 2~4-axis linear interpolation, spline interpolation and 3-axis spiral interpolation. It supports T-curve and S-curve acceleration/deceleration to ensure smooth motion and reduce mechanical shock.

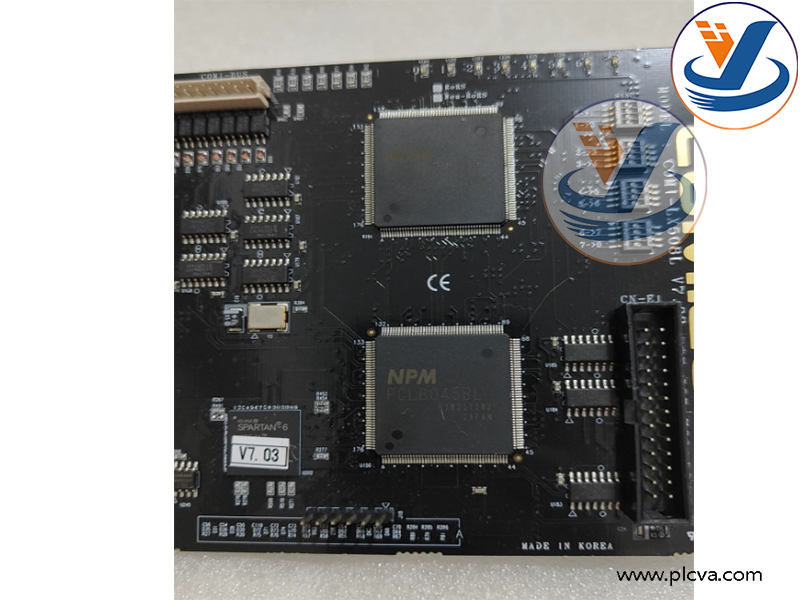

COMIZOA COMI-LX508L V7 PCI 8-Axis Pulse-Type Motion Control Card

1. Multi-mode Homing Function Provides 13 different homing modes, adaptable to various mechanical origin detection requirements, including home sensor, index signal and limit switch combined homing logic.
2. High-speed Position Latch & Position Compare Trigger Output Hardware position capture (latch) for encoder position snapshot when external trigger signal arrives. Position comparison function can instantly output digital signal once axis reaches preset position, widely used for camera triggering, laser synchronous control and inspection signal capture.
3. Isolated Digital I/O & Axis dedicated signals Equipped with optically isolated general-purpose DI/DO (2500Vrms isolation). Each axis has dedicated motion signals: pulse/direction output, EA/EB/EZ encoder input, ±limit switch, home sensor, servo ready and servo alarm signals. It can directly handle emergency stop, limit interlock and servo handshake.
4. Multi-card Synchronization via COMI-BUS The proprietary COMI-BUS interface enables synchronization between multiple COMI-LX series cards in one PC, expanding total controlled axes for large multi-axis machines.
5. Software Development Support Supports Windows OS. COMIZOA provides COMI-XMaster and COMI-MotionBuilder configuration & debugging utilities. Rich library functions for C/C++, VB, Delphi and LabVIEW for secondary development. Real-time monitoring of axis position, speed, encoder status and fault diagnosis.

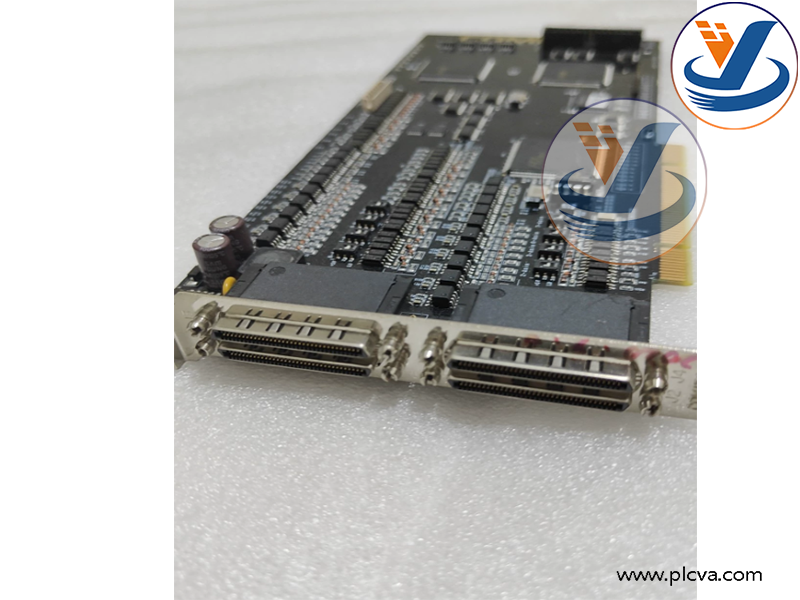

COMIZOA COMI-LX508L V7 PCI 8-Axis Pulse-Type Motion Control Card

Applications & Purpose

Installed into industrial PC PCI slot for multi-axis precision automation machinery. Typical applications:

• CNC routing, engraving and cutting machines
• Dispensing equipment, glue dispensers
• Pick-and-place, handling and automation assembly machines
• Laser processing, laser marking and laser cutting systems
• AOI inspection equipment, testing machines
• Multi-axis gantry systems and customized special automation machinery

Notes: COMI-LX508L V7 is legacy PCI card, mainly used as spare replacement parts for existing production lines. It is pulse-based control card, not fieldbus type (not EtherCAT).www.plcva.com

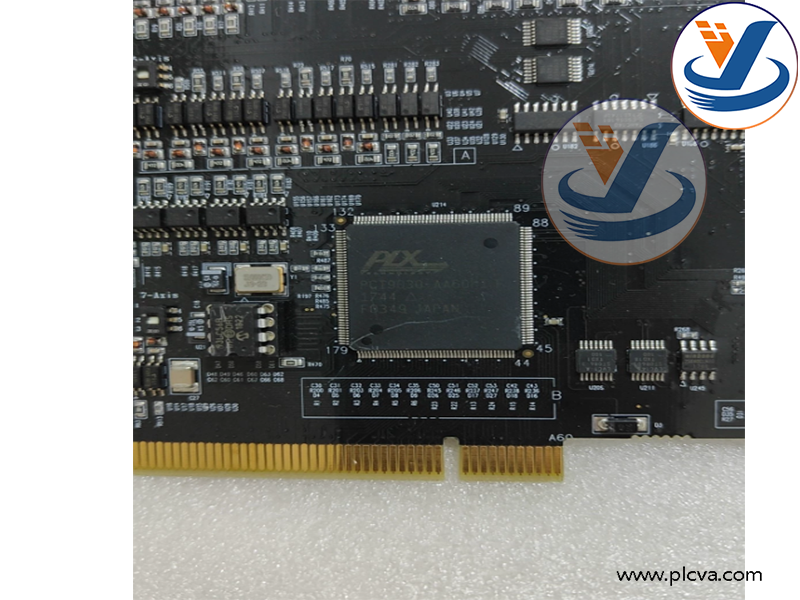

COMIZOA COMI-LX508L V7 PCI 8-Axis Pulse-Type Motion Control Card

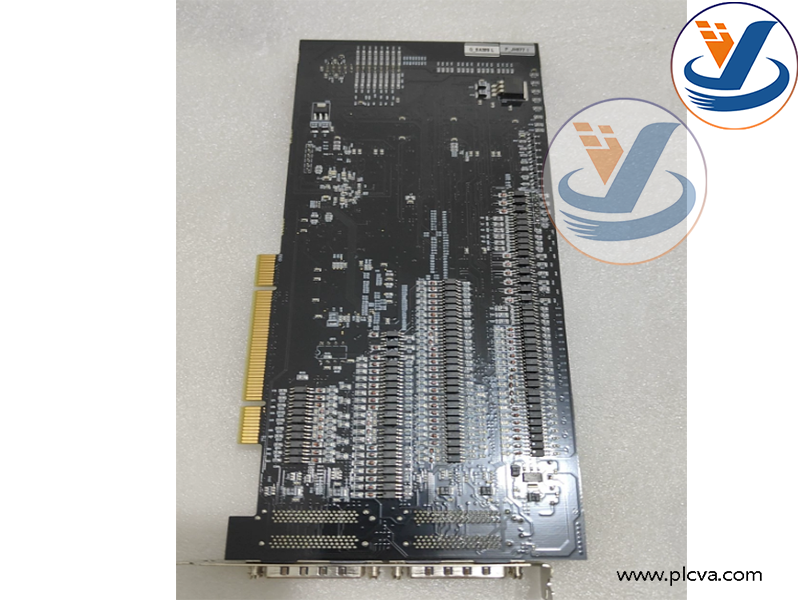

COMIZOA COMI-LX508L V7 PCI 8-Axis Pulse-Type Motion Control Card

COMIZOA COMI-LX508L V7 PCI 8-Axis Pulse-Type Motion Control Card
