1.Main Functions

The EG series is an electro-hydraulic proportional actuator. Its core principle is: Electrical Signal → Hydraulic Amplification → Mechanical Rotation Output.www.plcva.com

• Receiving proportional control current: Accepts DC proportional current (typically 0~200mA) output by Woodward speed controllers such as 2301A and 723PLUS.
• Electro-hydraulic power amplification: Uses engine lubricating oil as the hydraulic power source. A small current signal drives the hydraulic servo to deliver a high-torque rotating shaft.
• Proportional mechanical output: The magnitude of input current is linearly proportional to the rotation angle of the output shaft. The output shaft pulls the fuel rack of diesel/gas engines or gas valve linkages to change fuel supply.
• Closed-loop speed execution: Cooperates with the electronic speed controller to perform speed-up, speed-down, speed stabilization and load regulation; participates in load sharing during grid paralleling.
• Mechanical backup available for some versions: Can be assembled with PG hydraulic governor body to provide backup hydraulic governing when electronic control fails, improving unit safety rating (PGA-EG / PGG-EG combination).
• Protection interlock: Works with the control system to reduce/cut off fuel by actuating the fuel rack upon overspeed or faults for emergency speed reduction and shutdown.

Core summary: The electronic speed controller sends current commands. This actuator uses hydraulic power to pull the throttle / fuel pump rack, regulating engine fuel supply to stabilize rotating speed and output power.plcva.com

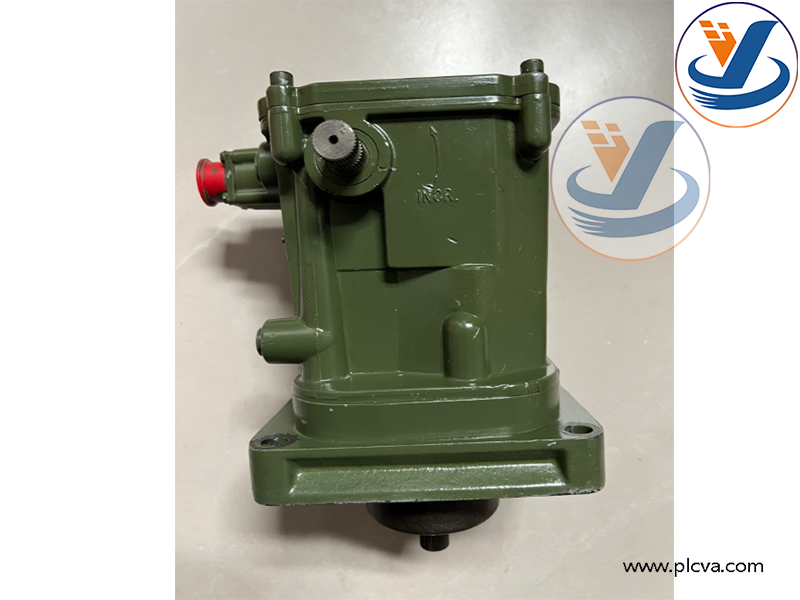

Woodward 8250-774

2. Applications

1. Diesel / gas generator sets for power generation (primary application) Land power stations, standby emergency generator sets, oilfield associated gas generator sets; Units requiring load sharing and synchronous paralleling for multi-unit parallel operation, commonly paired with 2301A controller; Compatible with Caterpillar high-power diesel engines 3508 / 3512 / 3516 / 3520 (most common matching model in industry).
2. Marine power Marine main propulsion diesel engines, marine auxiliary generators (shipboard generator sets, offshore platform generators).plcva.com
3. Oil & gas and industrial prime movers Gas compressors, pump drive engines (crude oil pumps, process pumps), power units for oil drilling platforms.
4. Other prime movers Fuel valve actuation for large gasoline engines and gas turbines.

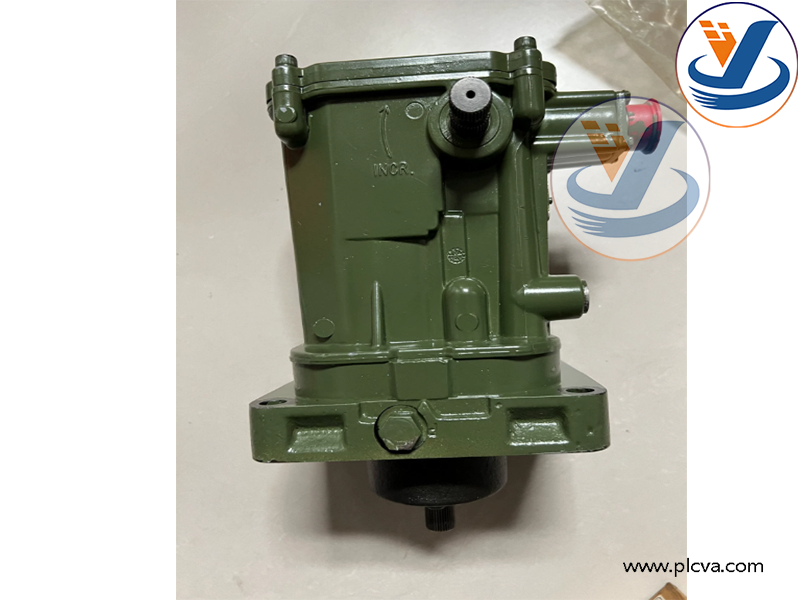

Woodward 8250-774

3. Product Features Summary

• Electro-hydraulic drive with high output torque, suitable for heavy-duty high-power engines.
• Adopts engine lube oil as hydraulic supply; no separate hydraulic power station required.
• Designed for heavy industrial conditions, vibration-resistant and wide temperature range, suitable for harsh environments including oilfields, vessels and mines.
• Classic mature legacy spare part widely deployed on existing units; currently mainly used for unit overhaul and spare part replacement.
• Must work with an electronic speed controller to form a complete governing system; cannot perform speed governing independently.
