1.Main Functions

• Gauge pressure measurement: Measures process pressure relative to ambient atmospheric pressure, using piezoresistive sensing diaphragm.www.plcva.com
• Signal conversion: Converts physical pressure value into standard 4–20 mA analog loop signal superimposed with HART digital signal.
• HART smart communication: Supports remote configuration, parameter adjustment, zero / span calibration, and device diagnosis via HART protocol.
• Local LCD display: Shows real-time pressure reading, engineering units and device status on site.
• Built-in self-diagnosis: Continuously monitors sensor, electronics and loop faults; outputs defined alarm levels upon failure.
• Overpressure protection: Tolerates high overpressure without permanent sensor damage.
• SIL-certified safety capability: Suitable for Safety Instrumented Systems (SIS) for process safety interlock.
• Temperature compensation: Automatic thermal compensation to minimize measurement drift under varying process temperature.

Core summary: It senses the gauge pressure of liquid or gas media, converts pressure into standard 4–20mA+HART signal, transmits measurement data to PLC/DCS for real-time process monitoring and closed-loop control.plcva.com

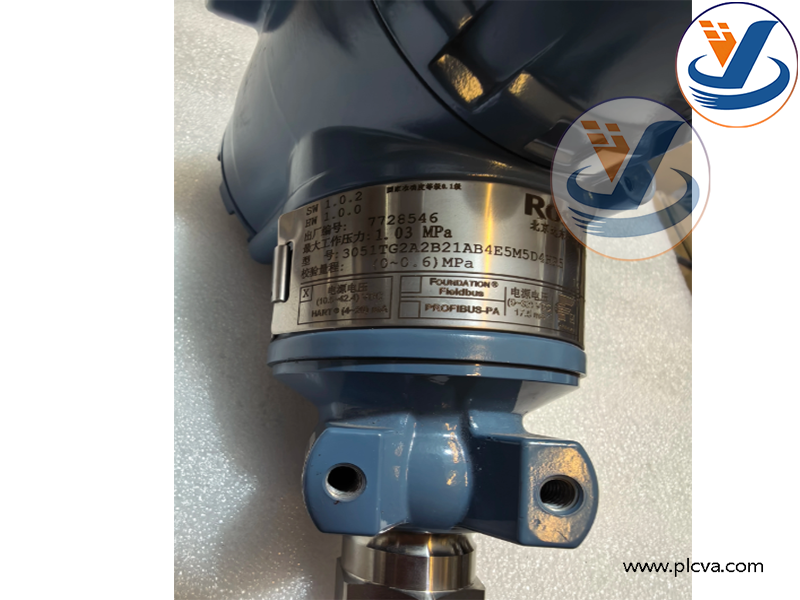

ROSEMOUNT 3051TG2A2B21AB4E5M5D4HR5

2. Applications

1. Oil & gas industry Wellhead pressure monitoring, pipeline pressure supervision, separator and crude processing units, offshore platform pressure measurement.
2. Chemical & petrochemical plants Reactor pressure monitoring, distillation column pressure control, pipe and vessel gauge pressure measurement for liquid and gas media.
3. Power generation Boiler auxiliary system pressure, feed pump discharge pressure, gas pipeline pressure monitoring in thermal power plants.
4. Water & wastewater treatment Pump outlet pressure, filter differential pressure, tank pressure monitoring.plcva.com
5. General process industries Refrigeration, HVAC, pulp & paper, pharmaceutical production for pressure monitoring and process control.
6. Safety instrumented systems Used for pressure interlock, high/low pressure alarm and protection in hazardous explosive zones.

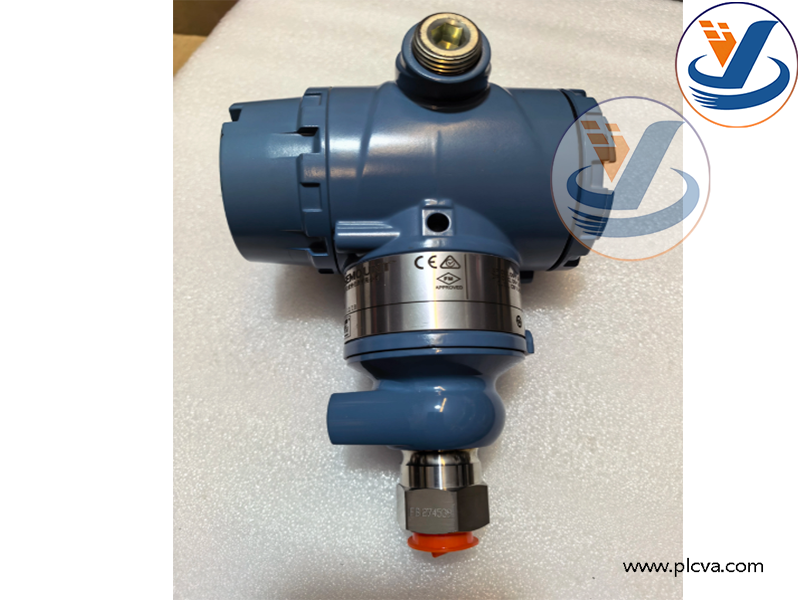

ROSEMOUNT 3051TG2A2B21AB4E5M5D4HR5

3. Product Features Summary

• Direct in-line mounting, no manifold required for gauge pressure measurement.
• High accuracy and long-term stability, up to 10-year stability performance.
• 316L stainless steel wetted parts, good corrosion resistance for most liquid and gas media.
• Explosion-proof certified for hazardous classified areas.
• HART smart transmitter, compatible with Emerson AMS and DCS control systems.
• Local LCD display for on-site reading without handheld communicator.
• SIL rating available for safety critical loops.plcva.com
• Widely adopted as spare replacement for existing Rosemount 3051 installed base.

ROSEMOUNT 3051TG2A2B21AB4E5M5D4HR5
