Product Background

The 5X00497G01 is a 4‑slot I/O base hardware for Emerson Ovation Distributed Control System (DCS), manufactured in USA.

This base unit itself has no processing capability. It acts as mechanical carrier, providing 24VDC power supply, field wiring terminals and back‑plane bus communication link for plugged‑in I/O modules. It supports hot‑swap function for I/O modules, modules can be replaced online without system power‑down.

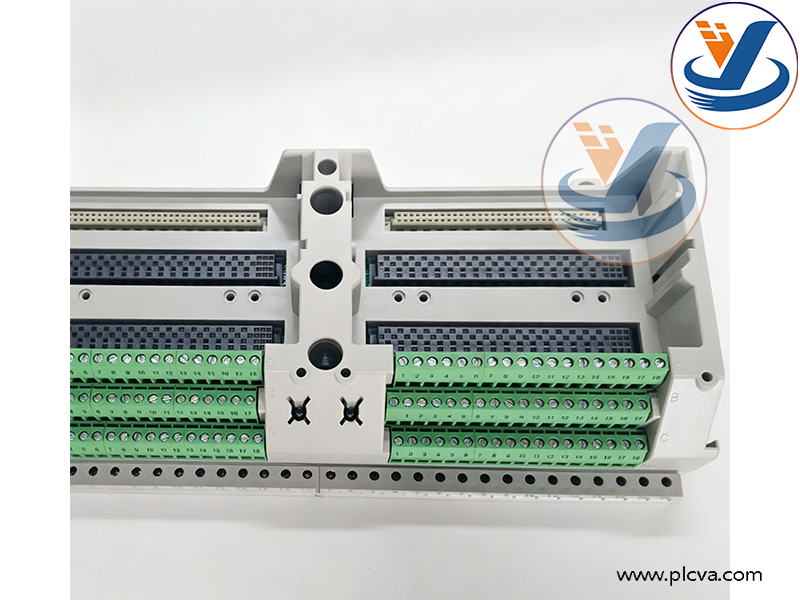

Emerson Ovation 4‑Slot I/O Base Unit, Model: 5X00497G01

Technical specs: 4 I/O slots, 24VDC power supply, operating temperature ‑40℃ ~ +70℃, DIN‑rail mounting, screw‑type terminal blocks, IP20 for cabinet‑inside installation.

Lifecycle Status: EOL (End‑of‑Life). Original manufacturer discontinued production. Available supplies are original leftover stock or refurbished used units, only for spare‑part replacement of legacy existing Ovation installations, not recommended for new projects.

Compatible with full range Ovation AI/AO, DI/DO, HART, RTD & pulse I/O modules.

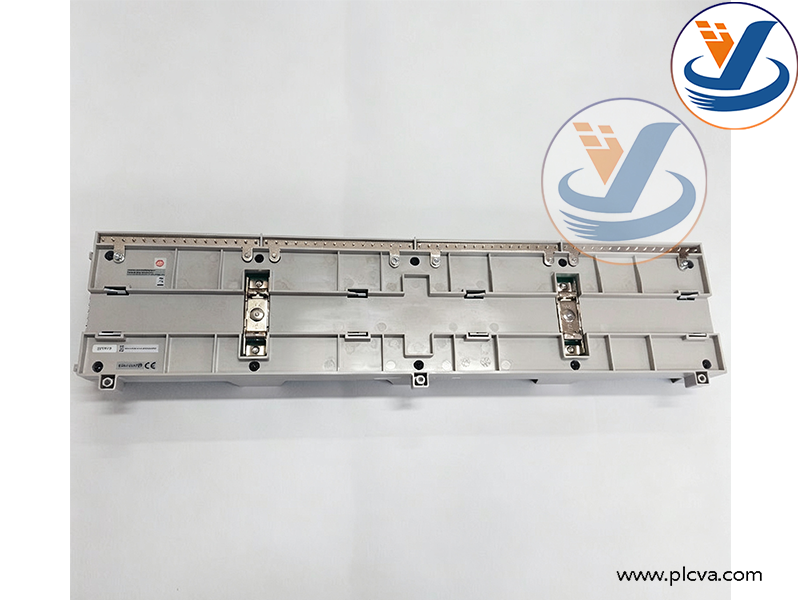

Emerson Ovation 4‑Slot I/O Base Unit, Model: 5X00497G01

Key Functions

1. Mechanical carrier with four slots: mixed installation of analog, digital and HART I/O modules for flexible I/O point expansion.
2. Power distribution & signal wiring transition: supply 24VDC power to I/O modules; screw terminals for interconnection between field instrument cables and I/O cards.
3. Back‑plane bus communication: high‑speed data exchange between I/O modules and Ovation controller.
4. I/O module hot‑swap support: I/O cards can be inserted / removed online, minimize maintenance downtime.
5. Diagnostic signal routing: transmit module fault & status signals for system alarm.
6. Industrial anti‑interference design, vibration & EMI resistance for heavy‑industry control cabinet environment.

Note: 5X00497G01 is only empty base unit, I/O modules are NOT included, separate I/O cards are required for signal acquisition & output.

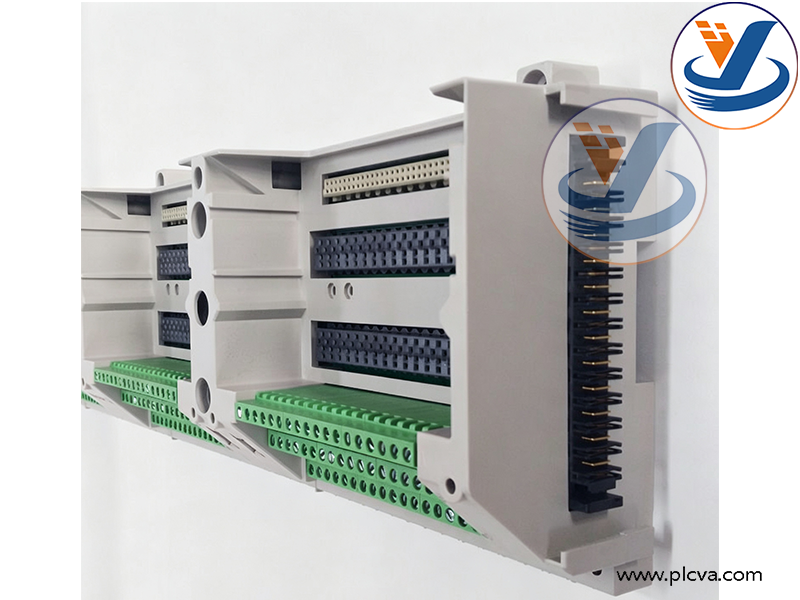

Emerson Ovation 4‑Slot I/O Base Unit, Model: 5X00497G01

Main Application Scenarios

1. Thermal power plants: DCS control for boiler & turbine auxiliary equipment, signal acquisition of temperature, pressure, valves & pumps; spare‑part replacement for legacy Ovation systems (major application).
2. Hydropower, waste‑to‑energy power station DCS I/O station.
3. Petrochemical & refinery process DCS control cabinets.
4. Water & wastewater treatment plant Ovation DCS I/O expansion.
5. Maintenance & retrofitting for existing Ovation DCS installations; not adopted for new‑build projects.

Emerson Ovation 4‑Slot I/O Base Unit, Model: 5X00497G01
