Emerson

1.Main Functions

• Analog signal acquisition: Collects standard 4–20mA analog current signals transmitted from field transmitters.www.plcva.com
• A/D conversion: Converts continuous analog field signals into high-precision digital data with 14-bit resolution for Ovation DCS controller.
• Multi-channel isolated sampling: Equipped with 8 independent isolated input channels, reducing crosstalk between different measuring points.
• High accuracy measurement: Captures process variables including pressure, temperature, flow rate and liquid level.
• Channel self-diagnosis: Continuously monitors channel faults, open circuit, short circuit and module health status, and uploads fault alarms to DCS system.
• Surge & overvoltage protection: Built-in surge suppression and isolation circuit to resist field interference and protect the backplane.
• Hot-swap capability: Supports on-site replacement without shutting down the whole DCS rack.
• Data transmission: Sends converted digital measurement data to Ovation controller for closed-loop process control and real-time monitoring.

Core summary: This Ovation analog input module receives 4-20mA analog signals from field instruments, converts analog signals into digital data, and transmits data to the Ovation DCS for real-time process monitoring and closed-loop control.plcva.com

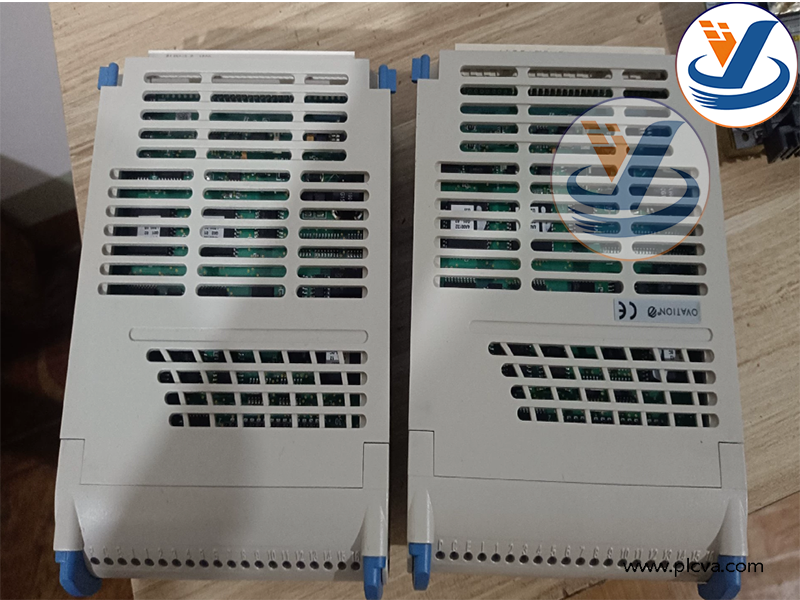

EMERSON 1C31224G01 DCS Card

2. Applications

1. Thermal power generation industry Boiler and turbine control system, collecting pressure, temperature, flow and level signals in power plant DCS cabinets.
2. Petrochemical & refinery plants Continuous process monitoring of reactors, distillation columns and pipelines.
3. Oil & gas industry Onshore gas processing plant and offshore platform process parameter acquisition.
4. Water treatment & pulp and paper industry Monitoring of tank level, pump pressure and flow measurement.
5. Metallurgy industry Process parameter collection for smelting and rolling production lines.
6. Spare parts replacement & system retrofit Replacement spare or expansion I/O component for legacy Emerson Ovation DCS systems.plcva.com

EMERSON 1C31224G01 DCS Card

3. Product Features Summary

• Dedicated 8-channel 4–20mA analog input electronic module for Emerson Ovation DCS.
• 14-bit high resolution, high measuring accuracy for critical process parameters.
• Each channel features electrical isolation to prevent cross-channel interference.
• Built-in comprehensive channel-level diagnostic function for fault detection.
• Surge protection design, strong anti-interference for heavy industrial continuous operation.
• Hot-swappable modular design, convenient maintenance and replacement.
• Wide operating temperature range, stable for long-term 24/7 operation.
• Widely used as spare replacement for existing Ovation DCS installed base.
