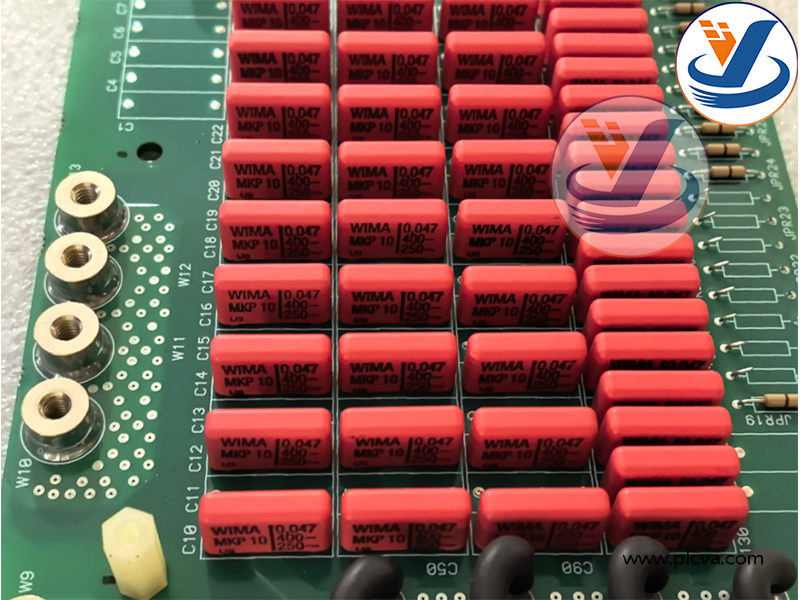

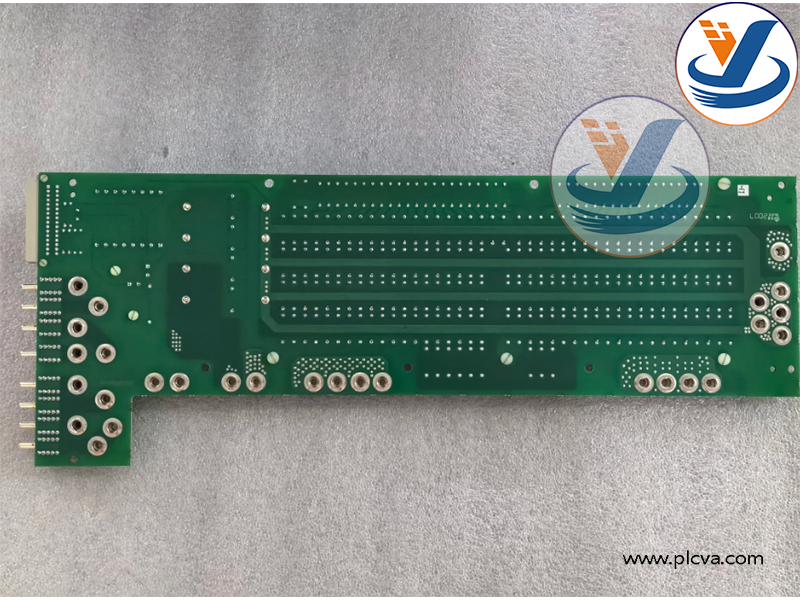

Advanced Energy 2306116-B PEII-10K CAPCOMB CPB Main Control Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

1.Functions

Centralized System Control & PWM Driving It executes main logic control for the PEII-10K 40kHz medium-frequency power supply, generates PWM pulse signals to drive the inverter power stage. It implements closed-loop regulation of output power, voltage or current with high measurement accuracy up to ±1%, maintaining stable plasma output under dynamic load fluctuation.
Arc Detection & Fast Arc Suppression Control Integrates dual arc-handling circuits (voltage arc & current arc detection). It instantly identifies plasma arcing, cuts off power output temporarily and executes automatic power recovery ramp sequence, protecting the power supply and process chamber from arc damage. Supports configurable arc trigger thresholds to adapt different thin-film recipes.
Signal Sampling, Inter-module Communication & Power Distribution Synchronously samples real-time voltage, current, temperature and reflected power signals from inverter, matching network and water cooling monitoring modules. It acts as the central signal bus, transmits commands and feedback data between logic unit, measurement circuit, load matching unit and local display panel, and distributes auxiliary power to each sub-assembly inside the power supply chassis.
Process Interface & Host PLC Communication Receives setpoint commands from the host equipment PLC via analog/industrial interface, uploads real-time operating status, alarm codes and fault diagnostic information. It supports recipe parameter storage, fault logging and local status indication.
Multi-protection Logic Management Monitors over-temperature, over-current, over-voltage, water flow failure and abnormal impedance conditions. Once fault triggers, this motherboard immediately locks power output and reports alarm signals to stop the process automatically, providing multi-layer safety safeguard for continuous industrial plasma operation.www.plcva.com

Advanced Energy 2306116-B PEII-10K CAPCOMB CPB Main Control Board

Advanced Energy 2306116-B PEII-10K CAPCOMB CPB Main Control Board

2. Applications

This motherboard is a critical spare core component exclusively for AE PEII-10K 10kW, 40kHz medium-frequency plasma power supply, serving vacuum plasma thin-film manufacturing equipment:

Reactive Sputtering & Dual-Cathode Sputtering Main control core for depositing dielectric films, metal oxide coatings, optical coatings and glass functional coatings.
PECVD Plasma Deposition For DLC hard coating, capacitor film, packaging plastic film and decorative thin-film deposition.www.plcva.com
Surface Modification & Tribological Coating Tool hard coating and material surface treatment in solar, glass and precision coating industries.
Equipment Maintenance & Replacement Spare Part Used for repair, refurbishment and part swap of existing PEII-10K power supplies in semiconductor and vacuum coating production lines. Without this working motherboard, the PEII-10K medium-frequency power supply cannot start up or run plasma recipes.
