1.Functions

1. Dual-channel DC power output: Provides two independent 24VDC power domains: Core power for PAC controller main board, IO power for all digital/analog I/O modules. www.plcva.com.
2. Over-current, over-voltage and reverse polarity protection: Fast electronic shutdown and fuse protection to prevent damage to PAC backplane and slave modules under fault conditions.
3. Power distribution management: Distribute regulated DC power to up to 5 PAC I/O modules, expandable to maximum 20 PAC I/O modules in one PAC rack system.
4. Status monitoring: Internal circuit monitors input voltage and output load status, feeds power fault signals back to PAC control system for equipment alarm and interlock.
5. Hot-slot compatible rack integration: DIN rail / rack mount form factor, pluggable module design for industrial chassis integration.plcva.com.

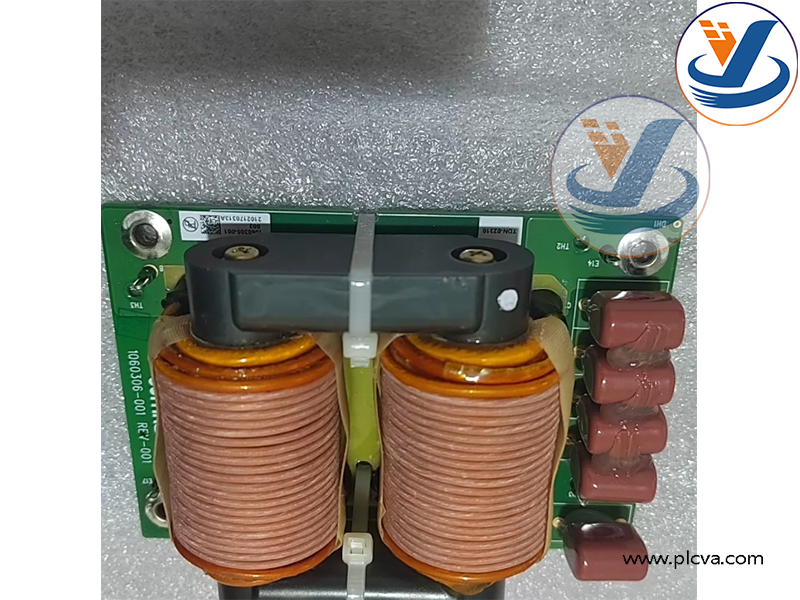

MKS 1060306-001 REV-001 Module

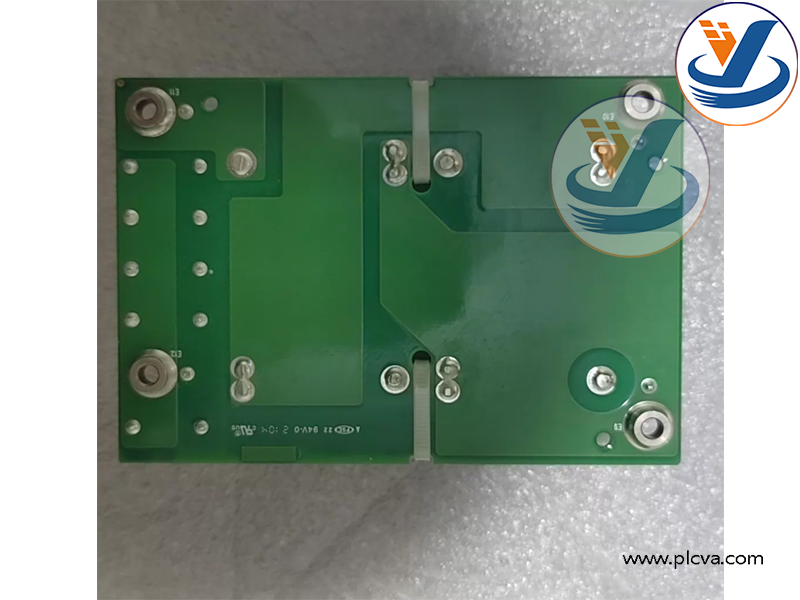

MKS 1060306-001 REV-001 Module

2. Applications

• Primary industry: Semiconductor wafer fabrication equipment (etching, deposition, thin-film process tools), vacuum process systems.
• Core usage: Power source for MKS PAC automation control platform. It supplies power for PAC CPU, digital input/output modules, analog modules and communication modules inside semiconductor process machines.plcva.com.
• Working scenario: Installed inside the equipment control cabinet. It converts raw 24VDC input into stable, protected power for the PAC control rack, ensuring consistent control signals for mass flow controllers, vacuum gauges, valves and process sensors.
• Application value: Maintain stable control power for vacuum and gas delivery subsystems; protect expensive process control electronics from power surge and short circuit; ensure process repeatability for wafer manufacturing.

MKS 1060306-001 REV-001 Module
