St. Jude Medical Mainboard 100103960

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

1.Functions

Central Signal Processing: The onboard medical processor executes embedded firmware to process high-resolution bio-signals including ECG, intracardiac electrogram and pressure waveform signals captured from patient catheters and sensors.www.plcva.com
Biomedical Data Acquisition & Sampling: Collects, filters and amplifies weak physiological signals from patient probes; performs analog-to-digital conversion with high precision and low noise to guarantee clinical measurement accuracy.
System Control & Human-Machine Interface Management: Controls peripheral modules of the medical host, including touch screen, data storage, print interface and alarm indicator. It manages user operation commands and displays real-time clinical waveforms and parameters.
Medical-grade Communication: Transmits patient waveform data, diagnostic records and system status between front-end signal acquisition hardware and upper-level clinical software; supports data export and network transmission for hospital information system.
Safety Monitoring & Fault Interlock: Continuously monitors board temperature, power supply status and signal integrity. It triggers alarm and safety protection to avoid abnormal output which may impact patient safety, complying with medical electrical safety requirements.
Data Storage & Logging: Stores patient test records, system configuration, calibration parameters and fault history in non-volatile onboard memory for clinical review, equipment maintenance and traceability.www.plcva.com

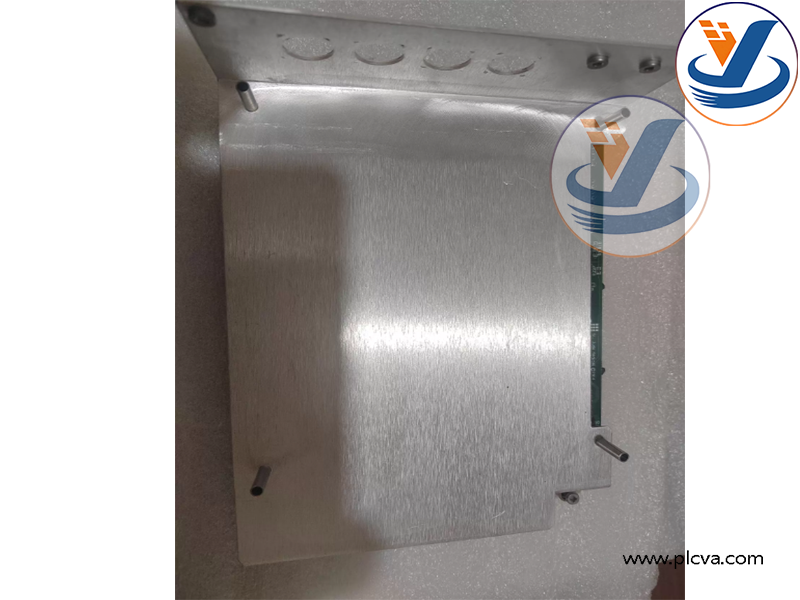

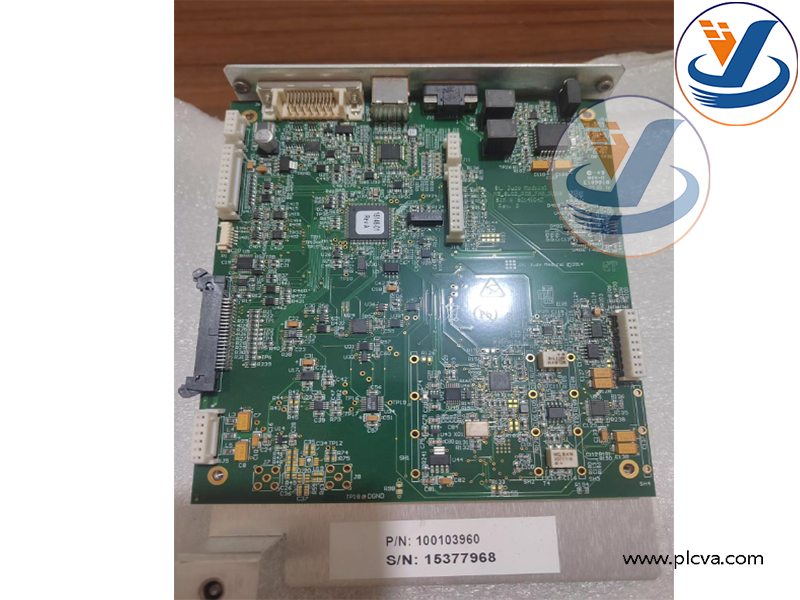

St. Jude Medical Mainboard 100103960

St. Jude Medical Mainboard 100103960

2. Applications & Usage

Primary Industry: Hospital cardiovascular clinical diagnosis, cardiac electrophysiology (EP) lab, interventional cardiology.
Core Usage: It serves as the core control motherboard of St. Jude cardiac measurement / electrophysiology workstation. It is installed inside the main unit of cardiac diagnostic equipment to acquire and analyze heart electrical signals and hemodynamic pressure data during interventional cardiac procedures.www.plcva.com
Working Scenario: Deployed in hospital cath lab / EP lab. It works with intracardiac catheters, pressure sensors and signal acquisition accessories to support real-time cardiac mapping, FFR measurement and arrhythmia diagnosis during minimally invasive cardiac surgery.
Application Value: Provides high-fidelity physiological signal acquisition for cardiologists to evaluate cardiac rhythm and blood flow parameters; ensures measurement stability and safety during interventional procedures; supports clinical record archiving and equipment troubleshooting. It is a critical spare component for maintenance and repair of St. Jude cardiovascular diagnostic systems.
