1.Functions

1. Laser Process Parameter Control: Executes cutting recipes, real-time adjustment of laser power, pulse frequency, gas pressure and beam parameters according to CNC path commands to match different metal sheet materials and thicknesses.www.plcva.com
2. Motion Synchronization & Axis Coordination: Receives position feedback from X/Y/Z servo axes, synchronizes laser output with cutting head movement to guarantee contour accuracy at corners, arcs and sharp turns.
3. Signal Acquisition & Closed-loop Monitoring: Collects real-time signals from cutting head sensors, pressure transducers, temperature detectors and gas flow sensors; feeds back status data for closed-loop process regulation.
4. Safety Interlock & Fault Protection: Monitors machine safety circuit, laser status, door interlock and cooling system. It triggers laser shutdown and machine alarm once abnormal conditions are detected to prevent equipment damage and safety hazards.
5. Industrial Communication Interface: Communicates with upper TruControl host CNC system via dedicated fieldbus; transmits cutting status, fault codes and process logs, receives NC program and operator commands.
6. Onboard Parameter Storage: Stores machine calibration data, cutting technology tables and fault history for on-site maintenance, troubleshooting and recipe recall.

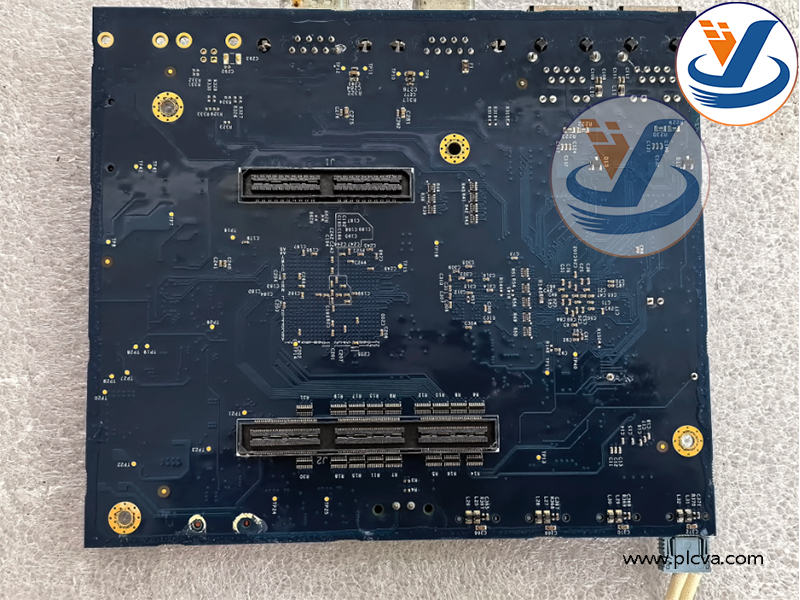

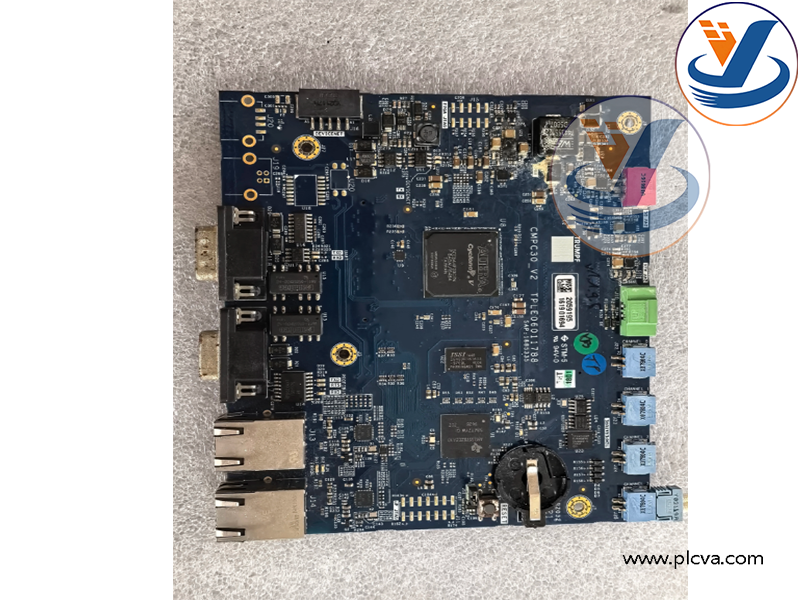

TRUMPF CMPC30_V2 Control Board TPLE06011788

TRUMPF CMPC30_V2 Control Board TPLE06011788

2. Applications

• Primary Industry: Metal fabrication, sheet metal processing, industrial laser manufacturing.
• Core Usage: Installed inside the electrical cabinet of TRUMPF TruLaser laser cutting machines. It acts as the dedicated process control core to coordinate laser source, cutting head, assist gas system and servo motion system during metal cutting.www.plcva.com
• Working Scenario: Operates in factory workshop environment for continuous sheet metal cutting of carbon steel, stainless steel, aluminum alloy and other metal materials. It runs together with the machine CNC controller to execute 2D sheet cutting programs.
• Application Value: Ensures high cutting precision, stable edge quality and consistent processing repeatability; implements laser safety interlock to protect operators and machine hardware; supports real-time process monitoring and fault diagnosis to reduce machine downtime. It is a critical spare component for TRUMPF laser cutter maintenance.www.plcva.com

TRUMPF CMPC30_V2 Control Board TPLE06011788
