1.Functions

Real-time Process & Equipment Status Display: The built-in LCD screen visualizes real-time operational data including voltage, current, power, temperature, equipment running state, alarm codes and fault messages from the host control system.
Local Operator Command Input: Equipped with integrated membrane keys for operators to perform local operations: parameter modification, mode switching, start/stop commands, alarm reset and recipe selection.www.plcva.com
Bidirectional Industrial Communication: Communicates with ABB controllers, DCS or power control units via dedicated serial/fieldbus. It uploads operator commands down to the main control system and receives real-time process data back for display.
Alarm & Event Indication: Receives system fault and alarm signals, highlights warning information on screen, records event logs and fault history for troubleshooting and audit.
Local Parameter Configuration & Calibration: Supports on-site checking and adjustment of system setpoints, protection thresholds and configuration parameters without connecting an external PC.
Industrial Anti-interference Design: Hardware with EMC protection, stable operation in high electrical noise industrial environment; front panel meets dustproof requirement for cabinet mounting.

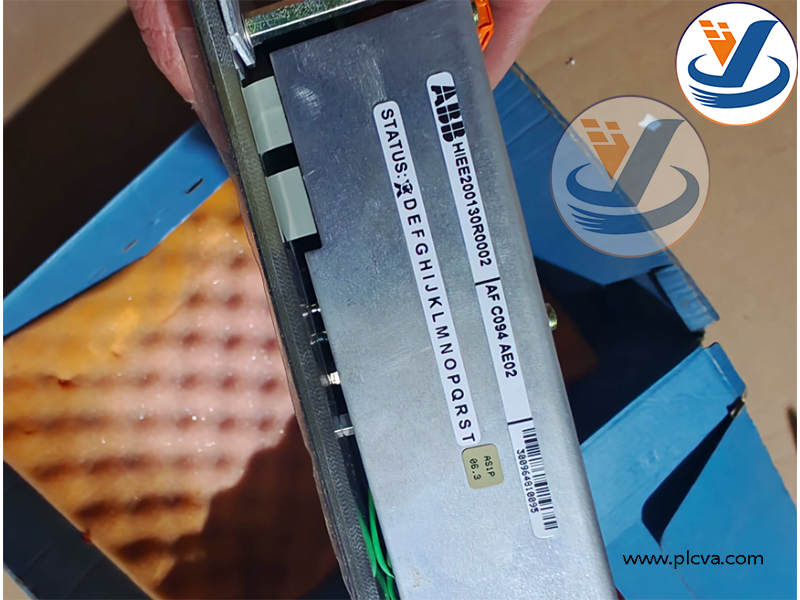

ABB HIEE200130R0002 LCD HMI Panel

Primary Industry: Power generation, power plant, substation, heavy industry process automation, distributed control system (DCS).
Core Usage: Mounted on the cabinet door of ABB power control and DCS systems. It serves as local human-machine interface for field operators to monitor and operate power equipment and process control systems on site.
Working Scenario: Installed in control cabinets of thermal power plants, hydroelectric stations, substations and heavy industrial workshops. It works with ABB controllers to realize on-site local operation when remote control is unavailable or during on-site commissioning and maintenance.
Application Value: Provides on-site local monitoring and manual operation function; clearly displays equipment running parameters and fault alarms, simplifies on-site commissioning and fault diagnosis; reduces reliance on remote workstation. It is a critical original spare part for replacement and maintenance of ABB power & DCS control cabinets.www.plcva.com
