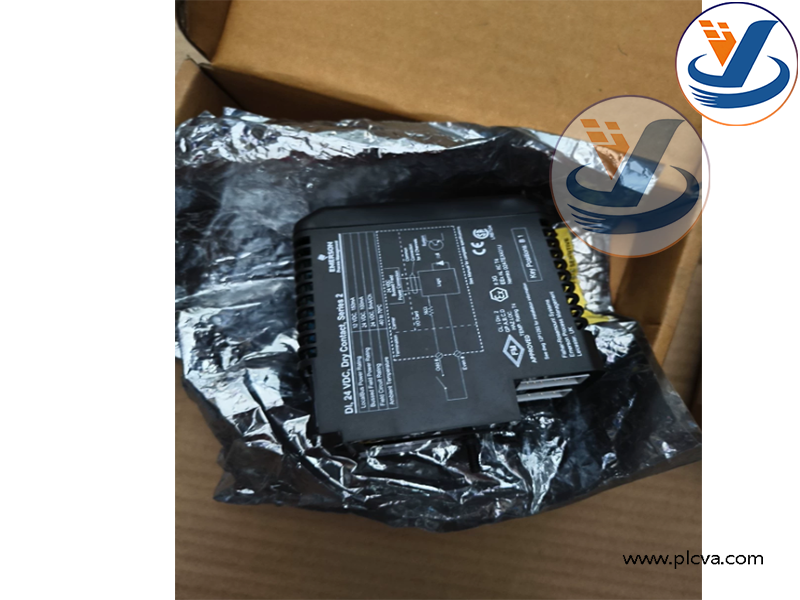

Emerson KJ3203X1-BA1 DeltaV Digital Input Module with Terminal Block
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Functions
- Dry contact digital signal acquisition 32 independent DI channels, receives dry contact on/off signals from field limit switches, valve position feedback, push buttons, relay contacts and level switches. Each channel supports 24VDC field loop power, single channel current 5mA, fast response less than 2ms.www.plcva.com
- Optical isolation for anti-interference Built-in optocoupler galvanic isolation between field side and DeltaV LocalBus backplane. Eliminates ground loop noise, protects DCS rack from surge and transient interference in industrial field cables.
- LocalBus communication with DeltaV controller Converts discrete field status into digital data and transmits to DeltaV controller via backplane LocalBus. Receives module configuration parameters from the control workstation.www.plcva.com

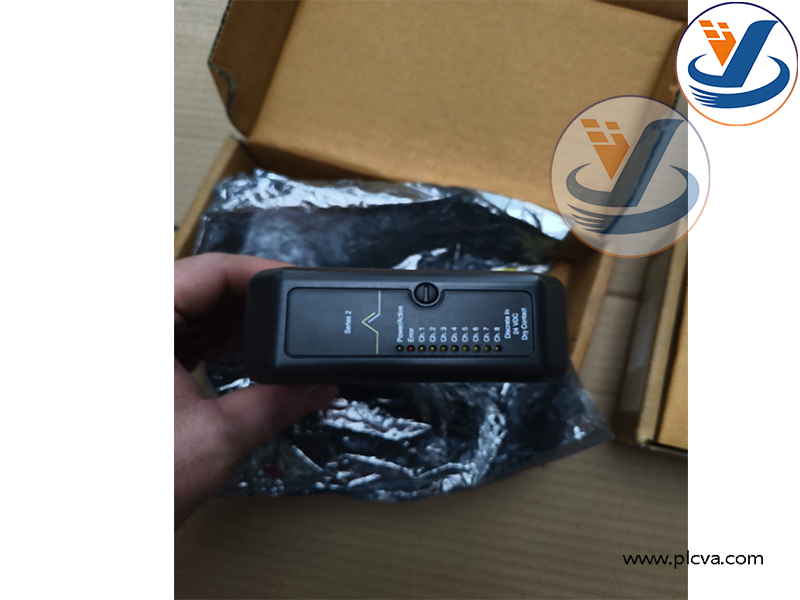

- Channel diagnostics & fault detection Detects circuit open-circuit and abnormal channel status; reports fault information to DeltaV operator station. LED indicators on module show channel status and module health for on-site inspection.
- Hazardous area compliance Certified Ex nA IIC T4 Gc, suitable for installation in Zone 2 / Class I Div 2 hazardous locations. Wide operating temperature range: -40℃ ~ +70℃, resistant to G3 industrial corrosive atmosphere.

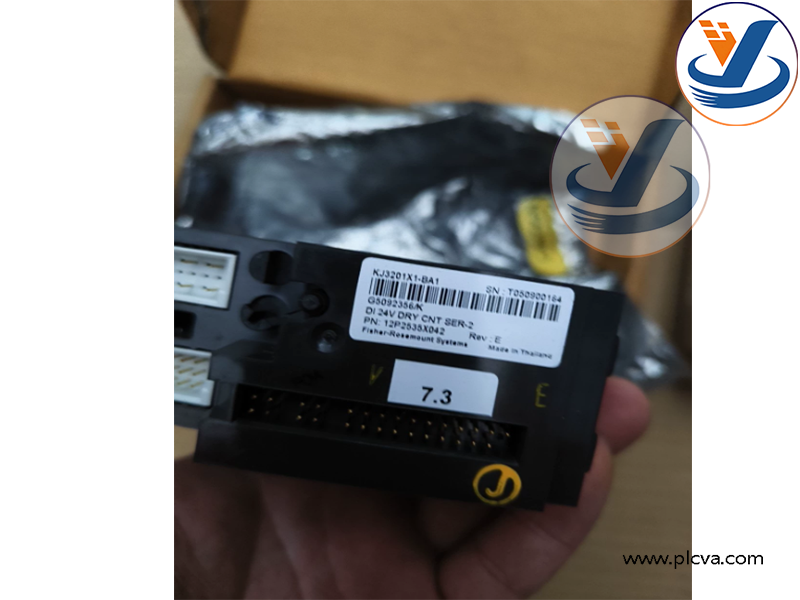

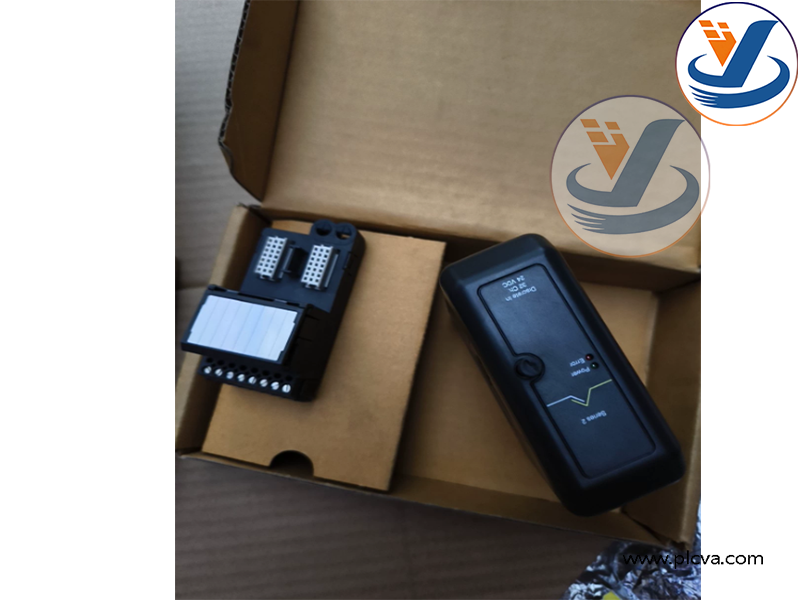

- Terminal block wiring interface The matched terminal block provides screw terminals for convenient field cable termination, supports hot module replacement without reworking field wiring.
Emerson KJ3203X1-BA1
Emerson KJ3203X1-BA1
Emerson KJ3203X1-BA1
2. Applications
This is standard high-density DI I/O card for Emerson DeltaV DCS control system, supplied complete with terminal block.www.plcva.com
Typical Application Scenarios:
- Oil & gas, petrochemical, chemical plants
- Power plants, boiler and turbine auxiliary monitoring
- Pharmaceutical production, water & wastewater treatment
- Refinery, LNG station and other process industry plants
Monitored Field Signals: Valve position feedback, pump running/fault status, limit switches, emergency stop contacts, fire & gas alarm dry contacts, tank level switch signals.
Emerson KJ3203X1-BA1
Emerson KJ3203X1-BA1
