Emerson DeltaV KL1720X1-BB1 1-Port Single-Mode Fiber Media Converter Module

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

1.Functions

Electrical-to-optical signal conversion Converts copper-based Ethernet electrical signal into single-mode optical signal, and vice versa. Realizes long-distance fiber communication for DeltaV CHARM CIOC (CHARM I/O Card) subsystem.www.plcva.com
Long-distance data transmission Single-mode fiber supports long haul transmission over several kilometers. Effectively eliminates electromagnetic interference and ground loop disturbance in heavy industrial environments.
Hazardous area rated communication Certified Ex ec IIC Gc, IECEx / ATEX / FM approval, compliant with Class I Div.2 and Zone 2 hazardous locations. Safe installation in explosive gas areas of process plants.
Module health monitoring & diagnostic Detects link loss, fiber break, communication failure and module power abnormality. Uploads fault alarm to DeltaV operator station, with LED status indicators for on-site visual inspection.plcva.com
Wide environmental adaptability Operating temperature: -40℃ ~ +70℃, conforms to ISA G3 corrosion resistance standard, withstands vibration and shock in field cabinets.
Hot-swap capable Supports module replacement (under non-hazardous condition) without shutting down the whole DCS controller system, convenient for on-site maintenance.

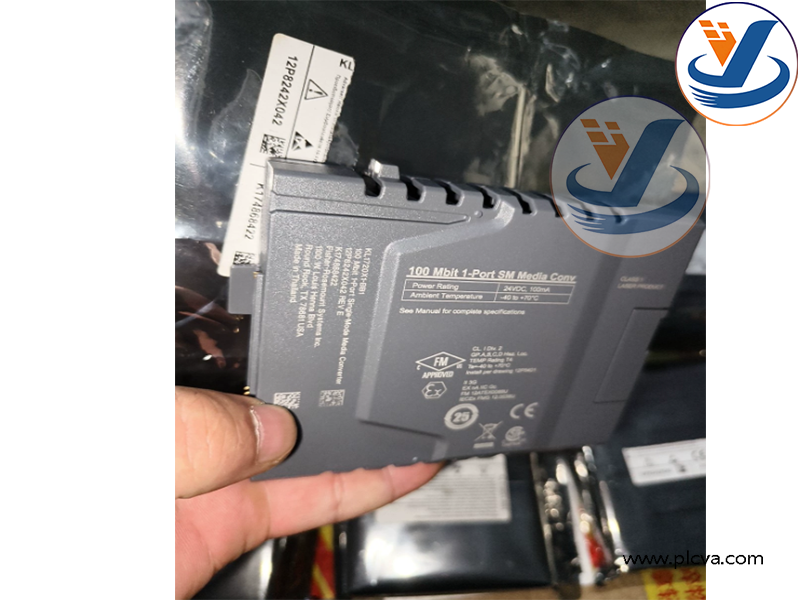

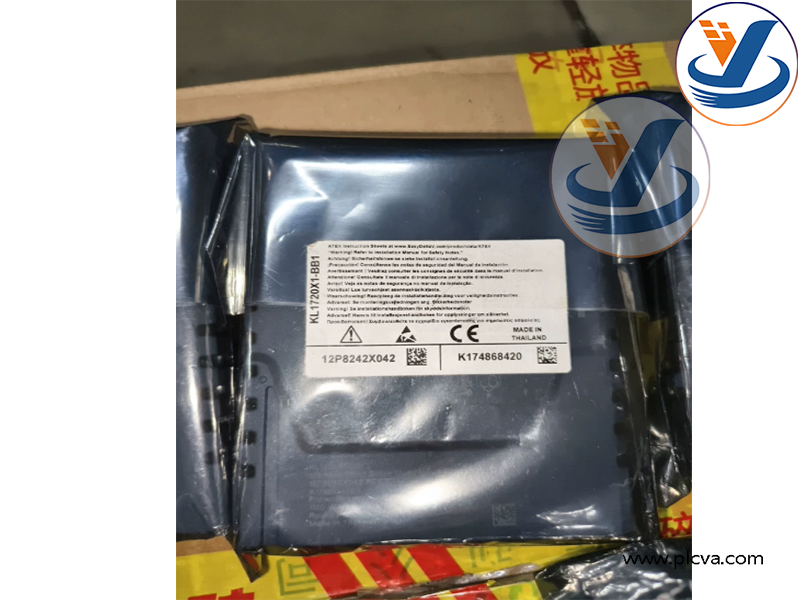

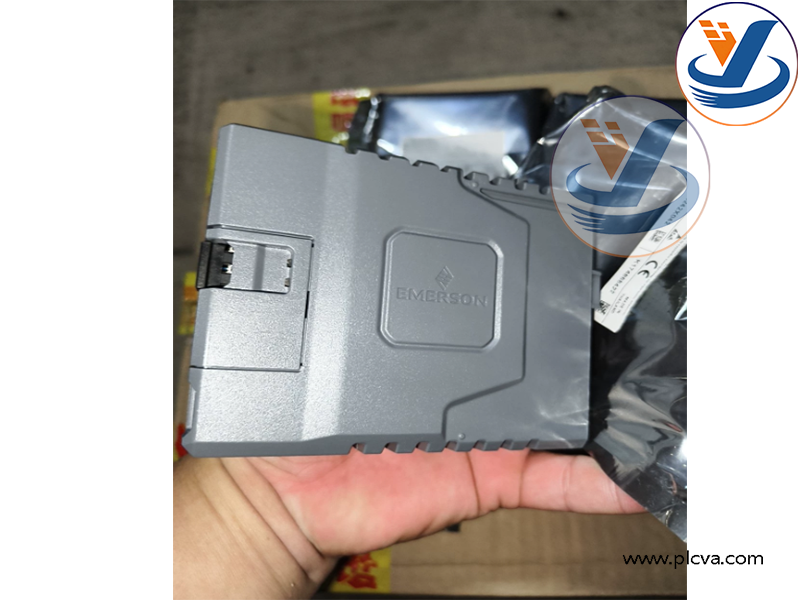

Emerson DeltaV KL1720X1-BB1

Emerson DeltaV KL1720X1-BB1

2. Applications

KL1720X1-BB1 is a dedicated fiber media converter for Emerson DeltaV CHARM Electronic Marshalling I/O system.www.plcva.com

Typical Application Scenarios: Oil & gas, petrochemical refineries, chemical plants, power plants, LNG facilities, wastewater treatment and other process industry sites.

Core Usage: Used for remote I/O cabinet / field junction box connection. When the CIOC CHARM I/O subrack is far away from the main control room, this module converts electrical signal to fiber signal to extend DeltaV network transmission distance. It isolates strong electromagnetic interference from high-power equipment, guarantees stable and reliable communication between remote CHARM I/O nodes and DeltaV main control network. Widely used in new DCS construction projects and spare replacement for failed DeltaV fiber communication modules.
