BECKHOFF CP2215-0000 Panel PC / HMI Touchscreen
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Functions
- Integrated Industrial Computing & TwinCAT Runtime Equipped with Intel Celeron / Pentium / Core i series processor, runs Windows 10 IoT Enterprise. Supports TwinCAT PLC, motion control, logic programming directly on the panel. It can act as both HMI visualization and EtherCAT master controller.www.plcva.com
- 15″ Multi-touch Human Machine Interface 15-inch TFT LCD, projected capacitive multi-touch. Front panel IP65 dustproof and waterproof, resistant to industrial splashing and dust. Supports landscape or portrait installation. Operators can view real-time process data, set parameters, trigger manual control and acknowledge alarms on screen.
- Rich Communication Interfaces Dual independent Ethernet ports, built-in EtherCAT, USB, serial interfaces. Two PCIe expansion slots for optional fieldbus cards such as PROFIBUS, PROFINET. Real-time data exchange with remote I/O, servo drives and sensors.
- Industrial Data Storage & Data Protection Supports SSD / CFast / 2.5-inch hard disk; onboard RAID controller for mirror storage. Optional NOVRAM for non-volatile fail-safe data retention to prevent data loss during sudden power cut. Powered by 24VDC industrial power supply.
- System Diagnosis & Status Monitoring Monitors CPU load, memory, disk health, temperature and communication link status. Uploads system and equipment fault alarms, event logs to HMI screen or upper management system.
- Cabinet Embedded Installation Designed to embed into the front door of control cabinet. Rear side IP20 protection, compact integrated structure, convenient for cabinet assembly and on-site maintenance.

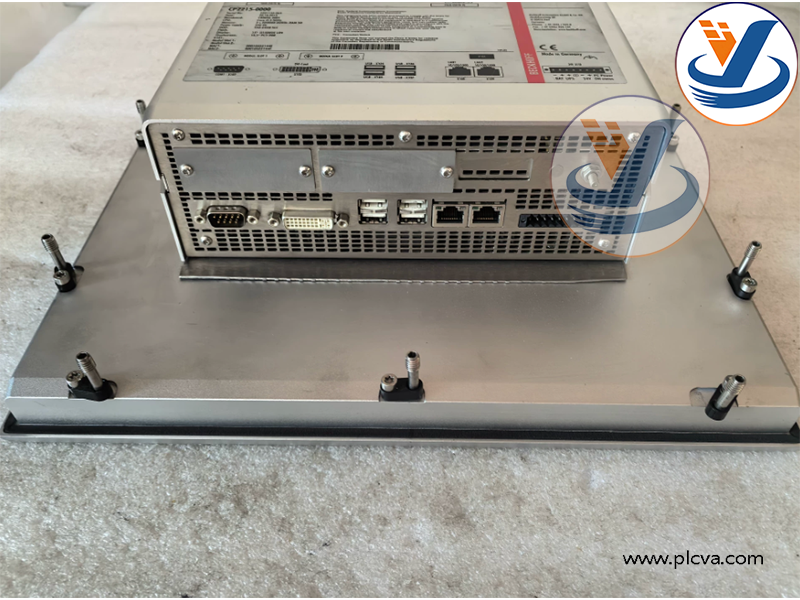

BECKHOFF CP2215-0000 Panel

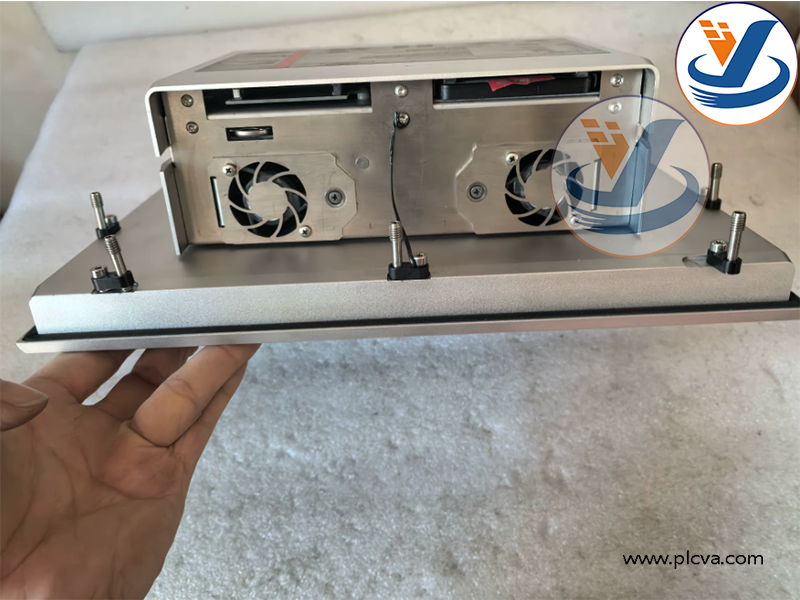

BECKHOFF CP2215-0000 Panel
2. Applications
CP2215-0000 is a 15-inch all-in-one Beckhoff panel PC for machine and factory automation.
Typical Application Industries & Equipment: Packaging machinery, plastic injection machines, CNC machine tools, material handling, logistics automation, food & beverage production lines, photovoltaic manufacturing, general machinery and factory process automation.www.plcva.com
Core Purpose: It integrates industrial PC controller and multi-touch HMI in one unit. It executes PLC logic, motion control via TwinCAT, displays real-time production status, receives operator touch input and communicates with EtherCAT field devices. It serves as the local operation and control center for automated machines. Widely used for new machine development and spare replacement when old Beckhoff panel PCs fail.
BECKHOFF CP2215-0000 Panel
