Firstack 2FSC0435 IGBT Gate Driver Core

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment

+086 18205988494

Introduction

1.Function

This is a highly integrated digital isolated dual-channel IGBT gate driver core with built-in DC/DC power supply and digital ASIC control chip.www.plcva.com

Receive low-voltage PWM logic signals from MCU/controller, perform galvanic isolation and level conversion, output ±35A peak gate driving current to turn on and turn off high-power IGBT modules.
Built-in multiple protection functions: short-circuit protection with soft turn-off, under-voltage lockout (UVLO), active clamping, intelligent fault management and fault feedback signal output.
Support multi-level topologies such as NPC three-level inverter; featured sequential shutdown function to reduce failure risk for multi-level power converters.
Adopt digital control architecture, low signal jitter, strong anti-interference capability, suitable for harsh high-EMI industrial environments.
Embedded parallel driving capability, can drive multiple IGBT modules in parallel for higher power inverters.
Compact potted structure, small footprint, pin-to-pin compatible with international mainstream driver cores for easy replacement.

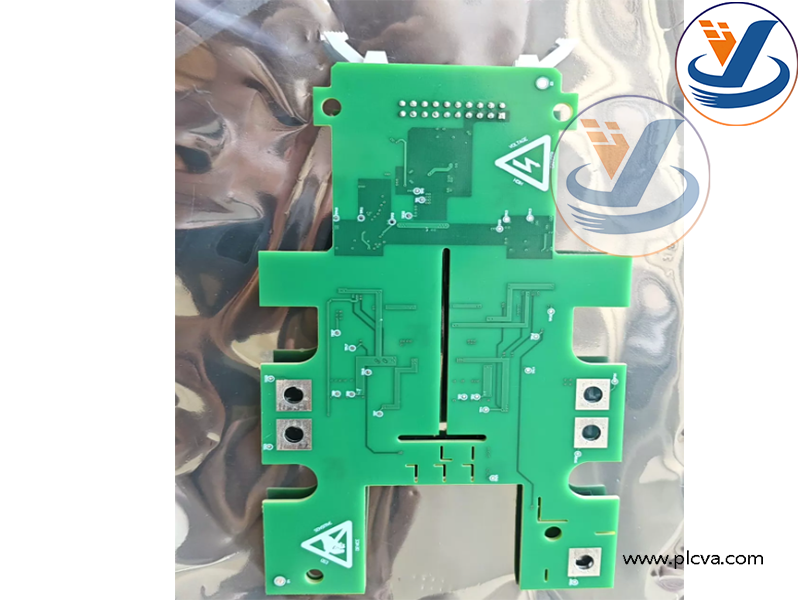

Firstack 2FSC0435 IGBT Gate Driver Core Physical photo

2. Application

Main Application

High-power power electronic converter systems:

Wind power converters, photovoltaic inverters, energy storage converters
Medium & high voltage variable frequency drives for large motors
SVG/STATCOM power quality equipment, railway auxiliary power supply, industrial high-power power supplies

Purpose

Power switch driving: Amplify and isolate control PWM signals to reliably control the switching action of high-power IGBT power modules.www.plcva.com
Device protection: Detect IGBT short-circuit and under-voltage faults in real time; trigger soft turn-off to suppress overvoltage and avoid IGBT burnout.
Fault diagnosis: Feed back fault status to main control unit for alarm, record fault events and assist equipment maintenance.
Converter development: Simplify power stage design of high-power inverters, reduce peripheral components and shorten product development cycle.
Equipment safety: Improve reliability of power conversion equipment, prevent catastrophic failure caused by IGBT damage and reduce unplanned shutdowns.
