ABB

1.Main Function

1. Signal Conversion Core: Convert standard analog electrical input signal 4…20 mA DC into proportional pneumatic output pressure 0.2–1 bar (3–15 psi), based on patented force-balance principle.www.plcva.com
2. PS (Power Stage) feature: Built-in pneumatic booster stage, delivers higher air flow capacity than standard TEIP11 (non-PS model), suitable for actuators needing larger air volume
3. Signal isolation & interface bridge: Link electronic DCS/PLC control system and pneumatic valve actuators
4. High anti-interference: Shock & vibration influence less than 1% under 10g vibration load, stable for plant field environment
5. Explosion protection compliant: This variant supports hazardous area use, certified by ATEX, FM, CSA for intrinsic safety or flameproof applications.plcva.com
6. Wide operating temperature: -40°C ~ +85°C (optional -55°C low-temp version)
7. Requires instrument compressed air supply (1.4 ~10 bar) as pneumatic power sourceeero

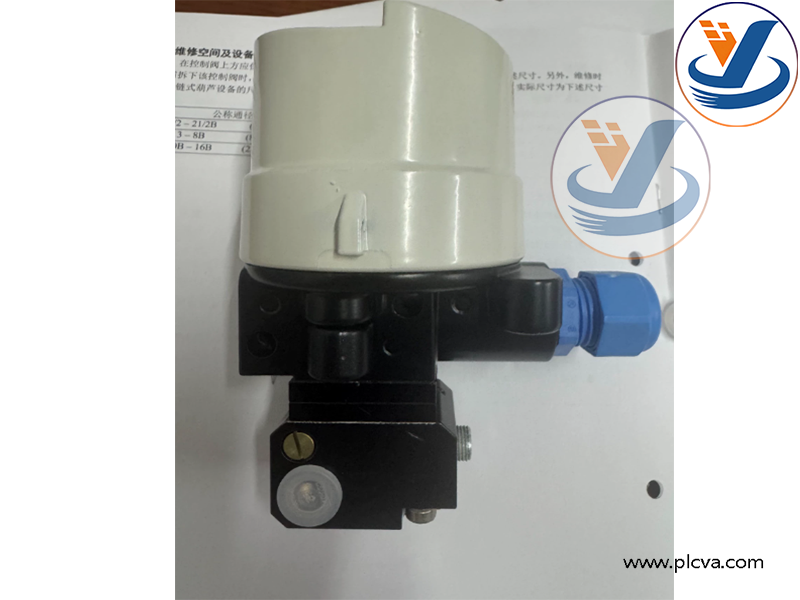

ABB V18311H‑382110100 TEIP11‑PS I/P Signal Converter Physical photo

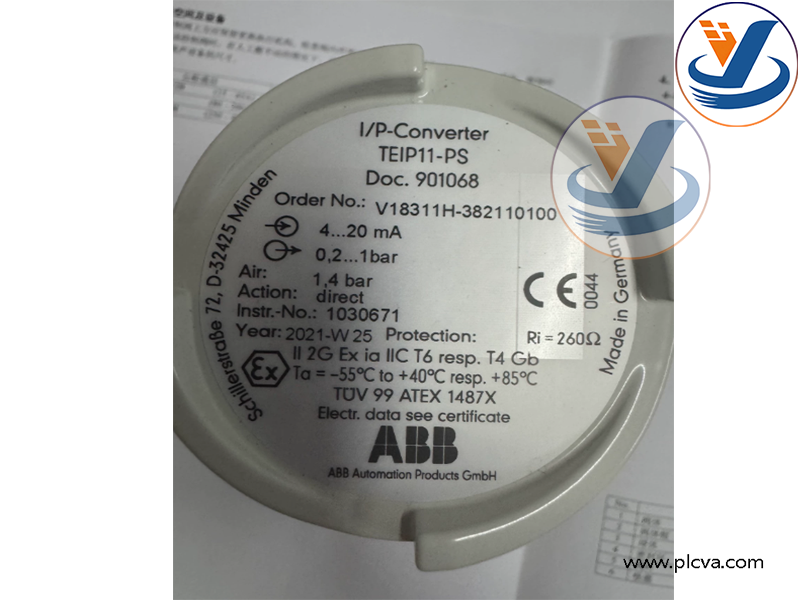

ABB V18311H‑382110100 TEIP11‑PS I/P Signal Converter Physical photo

2. Applications

• Serve as the interface between digital control room systems (DCS, PLC) and pneumatic control valve actuators in process plants www.plcva.com
• Industries: Oil & gas, chemical, petrochemical, power plant, pulp & paper, water treatment, pharmaceutical
• Use cases:
  • Modulating control of control valves, damper actuators
  • Process flow, pressure, temperature, liquid level closed-loop regulation
  • Field hazardous explosive zone automation (Ex certified version)
  • Cabinet DIN rail mounting or field wall / pipe mounting

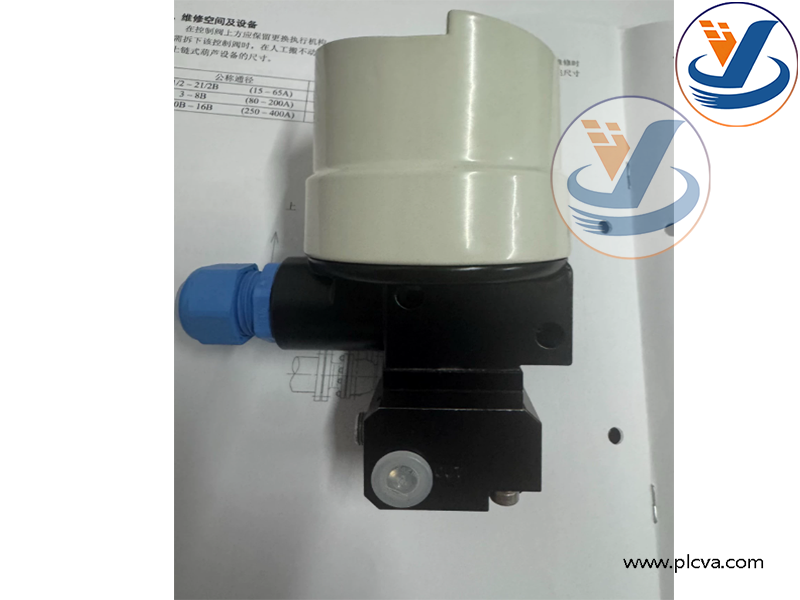

ABB V18311H‑382110100 TEIP11‑PS I/P Signal Converter Physical photo
