1.Functions

Signal conversion & galvanic isolation: Convert internal drive serial signals to RS485 differential signals; provide electrical isolation between the inverter and RS485 bus to suppress interference and protect equipment.www.plcva.com
Modbus RTU slave communication: Operates as Modbus RTU slave device, supports ABB Drives profile and Transparent profile; supports standard Modbus read/write register commands.
Remote drive control: Receive commands from PLC/DCS host to start, stop, enable run, set speed/torque reference, adjust PID setpoint.
Data acquisition & parameter modification: Read drive operating status, actual speed, current, fault codes; remotely edit drive parameters and reset faults.
Built-in bus termination resistor with fail-safe circuit, activated via jumper.
Multi-color LED diagnostic indicators for bus status, host connection and module error troubleshooting.www.plcva.com
Plug-in design: Installed into the dedicated option slot on ABB drive control board.

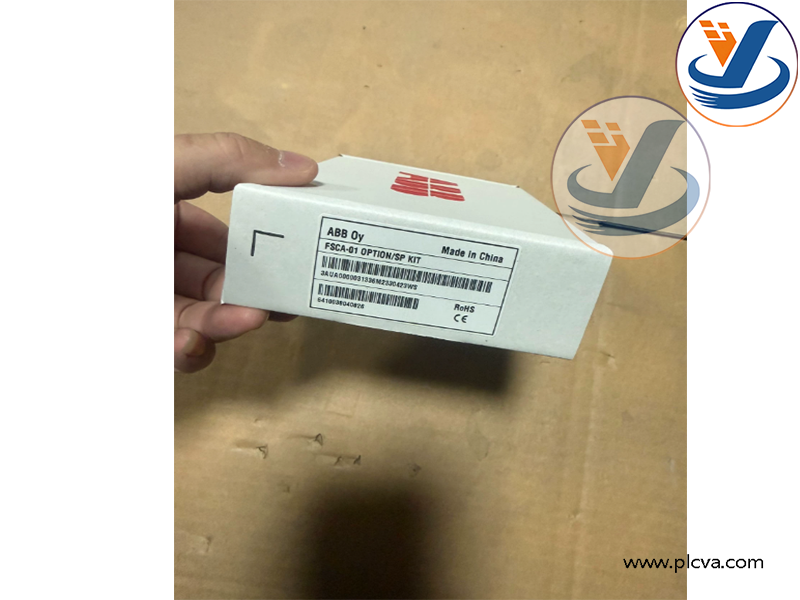

ABB FSCA-01 RS485 Modbus RTU Communication Adapter Module Physical photo

This is an optional communication accessory for ABB AC drives (ACS580, ACH580, ACQ580, ACS880, DCS880, ACSM1, ACS850 etc.).

Application industries: Water treatment, HVAC, chemical, mining, pulp & paper, marine, manufacturing production lines.
System integration: Connect ABB inverters to PLC or DCS via RS485 Modbus RTU bus for centralized automation control.
Typical control scenarios: Pump & fan speed regulation, conveyor control, compressor control, legacy RS485 system upgrade.
Purpose: Realize multi-drive networking, centralized monitoring and remote parameter management, reduce analog wiring cost.www.plcva.com
