1.Functions

1. X2X Link to CAN I/O protocol conversion: Acts as a slave node on CAN I/O bus, connects X20 local I/O modules via X2X Link to the CAN I/O master controller.www.plcva.com
2. I/O station expansion: Supports up to 43 digital I/O modules and maximum 16 analog modules on one X2X Link station.
3. CAN bus communication: 5-pin CAN interface, communication speed up to 1 Mbit/s, maximum cable length 1000 m; integrated CAN bus termination resistor.
4. Automatic firmware upgrade: Supports firmware update remotely via CAN I/O fieldbus.
5. Built-in diagnostic LEDs: Indicate module status, fieldbus status and data transmission status for on-site fault troubleshooting.
6. System auto-configuration: I/O modules can be automatically recognized and configured within B&R Automation Studio software.
7. Electrical isolation: Isolation between CAN I/O side and X2X I/O side to suppress electromagnetic interference.
8. Rugged industrial hardware: IP20 protection rating, operating temperature range -25℃ ~ +60℃; ATEX Zone 2 hazardous area certification available.www.plcva.com

Note: This module needs to be matched with X20BB80 bus base and X20PS9400 power supply module for complete operation.

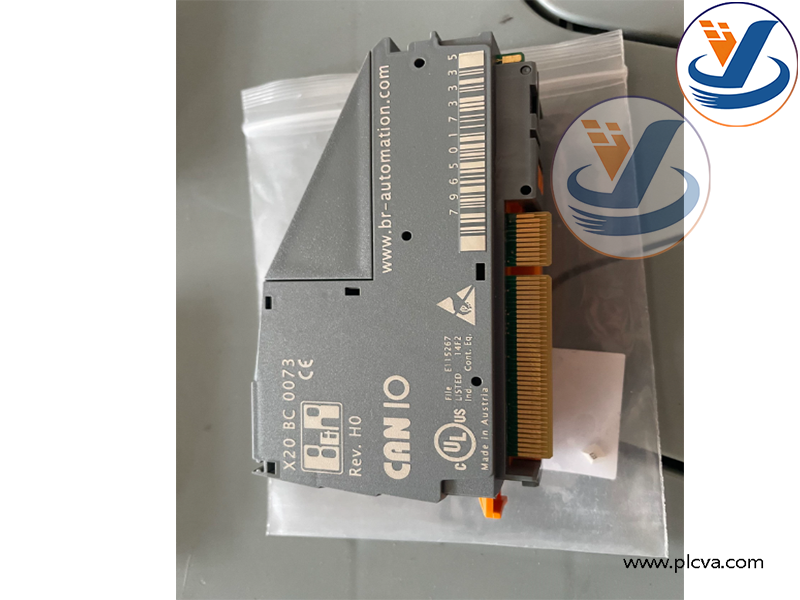

B&R X20BC0073 CAN I/O Slave Bus Controller Module Physical photo

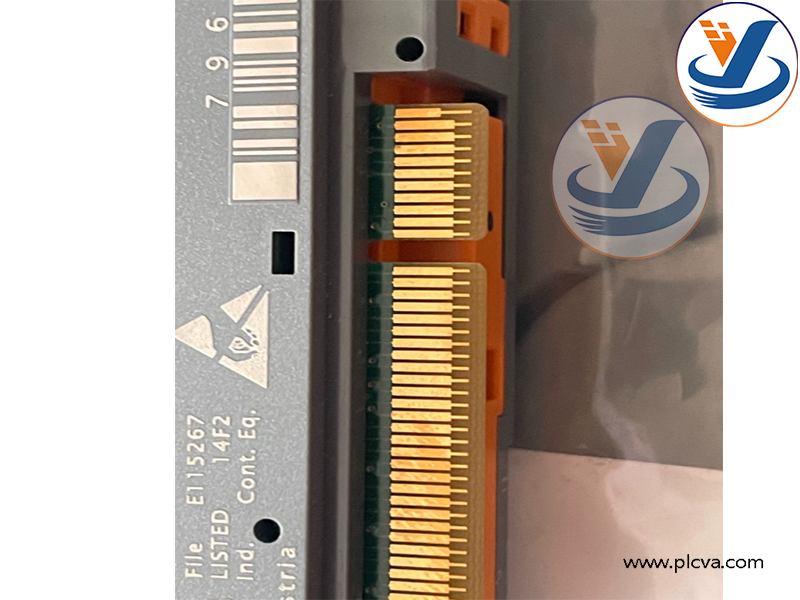

B&R X20BC0073 CAN I/O Slave Bus Controller Module Physical photo

2. Applications

This bus controller is a remote I/O interface unit for B&R X20 automation system, used for distributed I/O networking over CAN I/O bus.www.plcva.com

• Industries: Packaging machinery, textile machinery, plastic injection machines, metallurgy, marine automation, material handling, energy equipment.
• Typical scenarios:
  • Distributed machine I/O deployment, separating local sensors/actuators from main controller.
  • Machinery retrofit projects using CAN I/O communication architecture.
  • Cabinet layout optimization: place I/O stations close to field sensors to shorten sensor wiring length.
• Core purpose: Expand the I/O capacity of B&R control system, realize real-time exchange of digital/analog signals between CAN I/O master CPU and distributed X20 I/O modules. Reduce field wiring cost and improve system flexibility.
• Usage: New machine construction and spare replacement for existing B&R X20 CAN I/O automation systems.

B&R X20BC0073 CAN I/O Slave Bus Controller Module Physical photo
