1.Functions

Multi-sensor input support: Accepts RTD (Pt100 etc.), thermocouple (K, J, T, S, B etc.), millivolt and ohm signals. Converts raw sensor signals into standard 4–20mA analog signal superimposed with HART digital communication.www.plcva.com
High precision temperature conversion: Advanced linearization algorithm compensates sensor non-linearity for stable and accurate temperature measurement.
HART communication: Remote configuration, parameter modification, range setup, device diagnosis and calibration via HART handheld communicator or DCS system.
Sensor fault detection: Detect sensor open circuit, short circuit and wiring failure, trigger configurable alarm current according to NAMur NE43 standard.
NE107 compliant device diagnostics: Continuously monitor transmitter hardware and sensor health status for predictive maintenance.www.plcva.com
Explosion-proof / intrinsically safe certification options; IP66 / IP67 robust aluminum housing, suitable for field mounting inside temperature sensor connection head.
Sensor drift monitoring and temperature averaging function available as optional features.
Reverse polarity protection, overvoltage protection, strong EMC anti-interference performance.

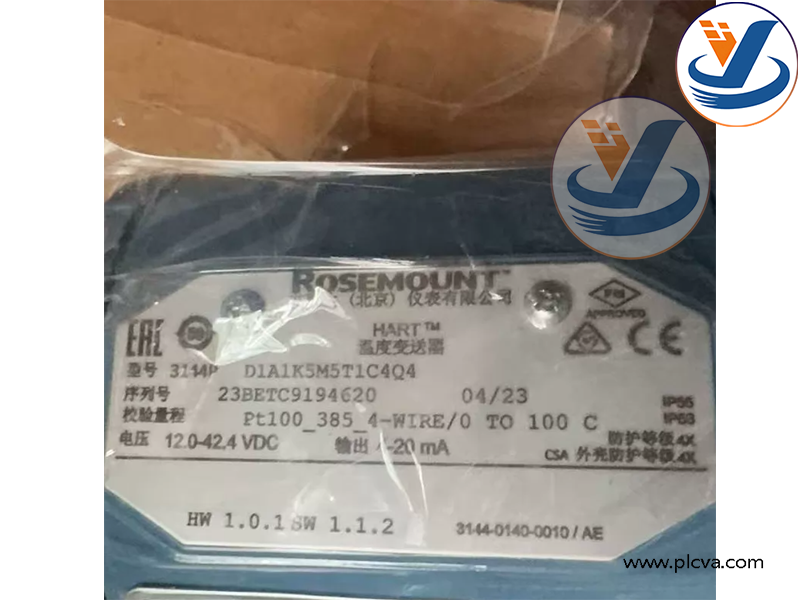

Emerson Rosemount 3144P D1A1K5M5T1C4Q4HART Temperature Transmitter Physical photo

This head-mounted temperature transmitter is widely used for process temperature measurement in industrial sites.www.plcva.com

Industries: Oil & gas, petrochemical, chemical, power generation, water treatment, pharmaceutical, marine, pulp & paper.
Typical measurement points: Pipeline medium temperature, reactor temperature, boiler temperature, bearing temperature, storage tank temperature.
Matching sensors: RTD platinum resistance sensors and thermocouples.
Core purpose: Collect raw temperature signals from field sensors, convert to standard 4–20mA+HART signal and transmit to PLC/DCS control system for real-time temperature monitoring, closed-loop control and high/low temperature alarm.
Installation: Mounted inside the sensor terminal head; used for new project construction and spare replacement.
