Overview

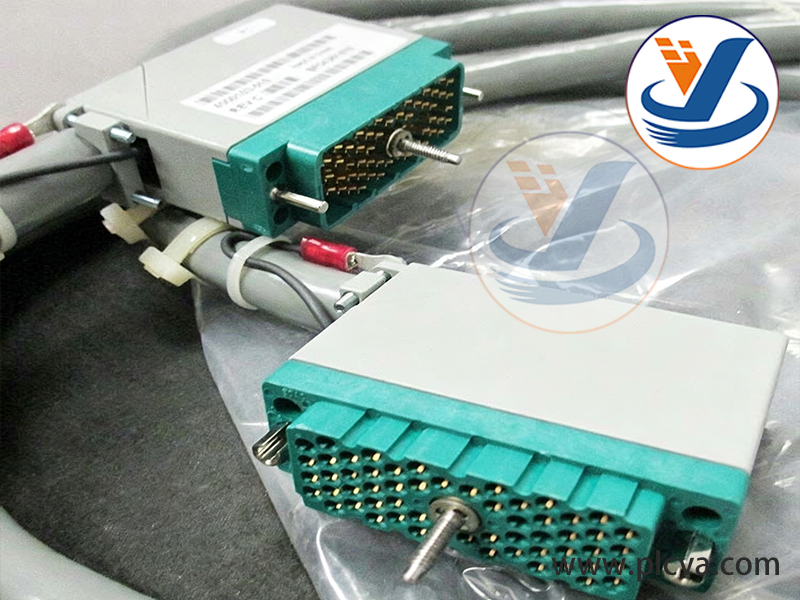

The 4000103-510N is a factory pre-terminated digital I/O cable assembly for Schneider Triconex TMR triple modular redundant SIS safety instrumented systems, with a standard length of 10 feet. It is pre-fitted with original Tricon green high-density D-type connectors on both ends. One end plugs into rack digital input/output modules (3503, 3603T, 3604E, 3611E, etc.), while the other connects to 9566 series terminal block modules (3000540-380). It is dedicated to transmitting 24VDC / 115VAC digital discrete signals and loop diagnostic feedback signals.

1. Establish standardized signal transmission path between digital I/O modules and terminal blocks As a dedicated connecting cable between rack I/O cards and field termination panels inside control cabinets, it transmits discrete signals bidirectionally: it sends ESD/BMS interlock output drive signals from the CPU to field equipment, collects input contact signals including valve feedback, E-stop buttons and limit switches from field side, and feeds back loop fault sampling signals from terminal blocks, realizing signal transfer between internal system and field devices.
2. Support parallel transmission of three independent TMR redundant signal channels Internal multi-core wires are physically separated and bundled, corresponding to three TMR redundant channels of I/O modules for synchronous independent signal transmission. Damage to one wire core or short/open circuit on one branch only isolates that single channel without interfering with the other two signal paths. Combined with 2-out-of-3 hardware voting logic, it prevents spurious or fail-to-operate safety interlock actions and complies with IEC61508 SIL3 safety integrity level standards.
3. Full-shielded twisted pair design to suppress industrial electromagnetic interference Adopting double-layer overall braided shielding with full shield grounding, it effectively filters EMI/RFI interference generated by variable frequency drives and large motors, eliminates ground loops and common-mode noise, prevents digital signal jitter and false triggering, and ensures long-term stable signal quality of SIS safety loops.
4. Factory pre-crimped locking connectors to reduce on-site wiring faults Both ends are pre-assembled integrated connectors with mechanical anti-loosening latches, requiring no on-site wire stripping, soldering or crimping for plug-and-play installation. It avoids hidden troubles such as loose contacts, reversed wiring sequences and short circuits caused by manual termination, shortens cabinet assembly cycle and reduces loop faults and SOE alarms during operation.
5. Industrial flame-retardant weatherproof cable for harsh hazardous environments Equipped with gray flame-retardant flexible outer jacket, it features excellent resistance to oil, moisture, vibration and chemical corrosion, operating stably from -40℃ to +85℃, complying with UL and CE industrial certifications. It is suitable for explosion-proof control cabinets in chemical, oil & gas and power plants without aging or cracking under long-term service.
6. Synchronous transmission of loop diagnostic feedback signals for system fault monitoring Besides main control signals, it transmits fault sampling signals collected by terminal blocks (open circuits, short circuits, abnormal loads) back to I/O modules. The system identifies circuit defects in real time, generates fault alarms and millisecond-level Sequence of Events (SOE) logs uploaded to HMIs and engineering workstations for rapid fault localization.
7. Compatible with online hot-swap maintenance without system shutdown Connectors are equipped with anti-loosening latches. The cable can be unplugged and replaced while the system is fully loaded without disrupting signal transmission of other channels. The whole ESD/BMS safety interlock system operates continuously without full plant shutdown for maintenance.
8. Uniform impedance matching & standardized spare parts management The cable impedance is calibrated uniformly by the factory to guarantee consistent impedance across all channels and avoid signal deviation from long-distance wiring. Unified specifications facilitate standardized project wiring and centralized spare parts stocking, cutting operation and maintenance management costs.
