Main Functions

1. Strip position & width signal acquisition and processing Receive analog signals from edge sensors (photoelectric, ultrasonic sensors). Calculate real‑time strip edge offset, centre deviation and actual strip width with high‑speed internal DSP processing. Provide configurable hardware filtering (1 ms‑2000 ms) to suppress industrial noise interference.
2. Closed‑loop EPC / WPC control (Edge Position Control / Width Position Control) Built‑in PID control algorithm. Output analog control signals to drive servo actuators for web guiding systems. Real‑time dynamic correction for strip wandering, keeps strip centred on the production line, prevents strip deviation, wrinkling and edge damage.

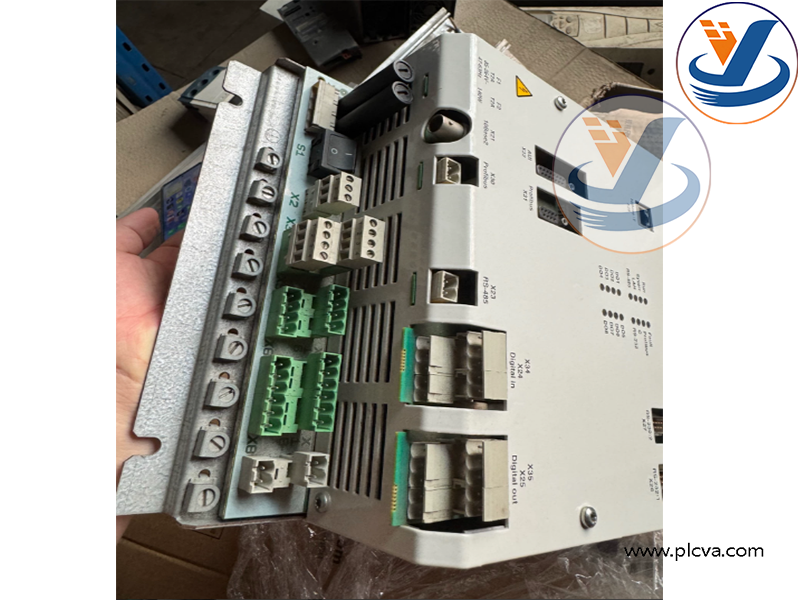

3. Rich I/O interface processing

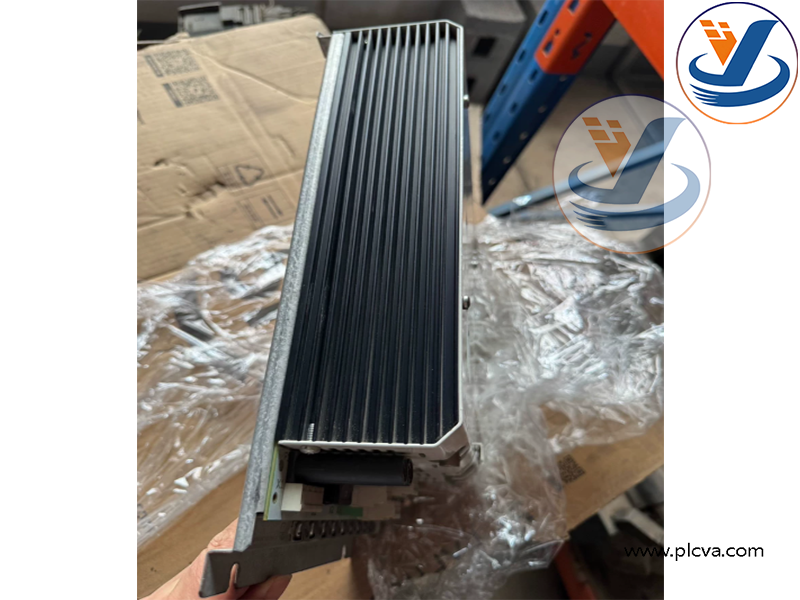

ABB Millmate Controller 400R (PFXA401S, 3BSE024388R2)

• 4 channels differential analog inputs for sensor signals
• 4 channels configurable analog outputs (0‑±10 V, 0‑20 mA / 4‑20 mA) for measured value transmission to PLC / DCS
• 8 optically‑isolated digital inputs, 8 optically‑isolated digital outputs for interlock logic, status feedback and external device triggering
• Internal 24 VDC auxiliary power output (max 0.5 A) for powering external sensors.

4. System commissioning, simulation and self‑diagnosis Step‑by‑step guided parameter setup menu. Built‑in simulation mode for offline system verification without real strip running. Comprehensive self‑diagnosis covers hardware channel faults and sensor failure detection, supporting fast on‑site troubleshooting. Multiple engineering units (mm etc.) are selectable for measured values.
5. Multi‑mode communication for system integration Support VIP Ethernet protocol, RS‑232 serial communication. Connect to Millmate operator unit, ABB AC800M PLC and third‑party automation systems for bidirectional data exchange of set‑points, actual values and alarm information.

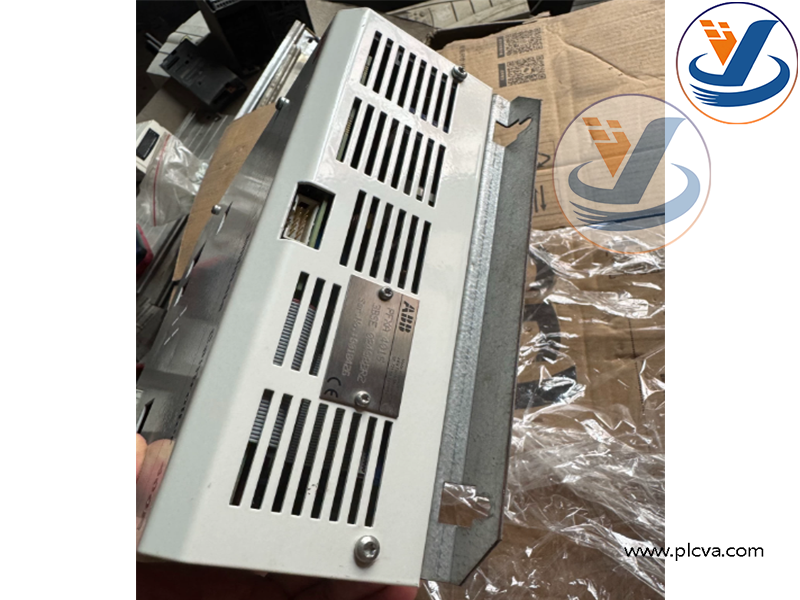

ABB Millmate Controller 400R (PFXA401S, 3BSE024388R2)

3. Applications & Purpose

This unit belongs to ABB Millmate 400 specialized measurement‑control platform, designed for continuous strip‑processing industrial lines under harsh workshop environments (0‑70 °C, heavy dust and electromagnetic interference).More products: www.plcva.com

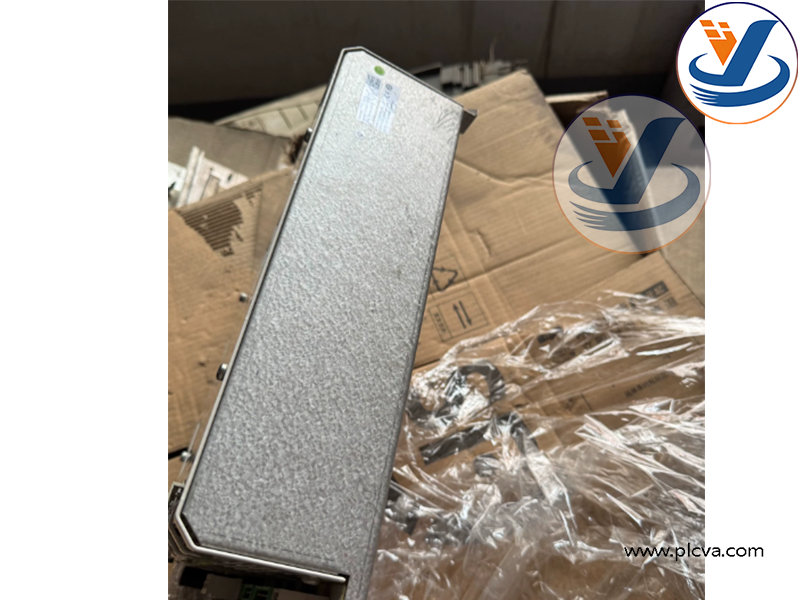

ABB Millmate Controller 400R (PFXA401S, 3BSE024388R2)

Primary application industries:

• Metallurgy: Cold‑rolling mills, hot‑rolling mills, foil mills, pickling lines, annealing lines, continuous galvanizing lines for metal strip (steel, aluminium, copper)
• Paper‑making: Paper web production and finishing lines
• Plastic film: Film casting, coating, slitting and calendaring production lines

ABB Millmate Controller 400R (PFXA401S, 3BSE024388R2)

Typical equipment where it is deployed: Rolling mills, slitter machines, coaters, laminators, continuous processing lines with web‑guiding requirements.

Core production purposes:

• Eliminate strip wandering during high‑speed continuous running
• Reduce edge‑trimming waste, lower scrap rate
• Improve finished‑product dimensional consistency and surface quality
• Avoid strip breakage and equipment collision accidents caused by severe deviation
• Realize automatic web‑guiding closed‑loop control, reduce manual intervention on production lines.

ABB Millmate Controller 400R (PFXA401S, 3BSE024388R2)
