Main Functions

1. EtherCAT slave‑station bus coupler: Works as EtherCAT slave coupler for AM600 PLC CPU; realizes high‑speed real‑time distributed‑I/O expansion over EtherCAT fieldbus, communication rate 100 Mbit/s (100BASE‑TX).More products: www.plcva.com
2. Distributed I/O expansion capacity: Each module supports maximum 16 digital‑input/output modules or 8 analog‑input/output modules; supports linear topology, node‑to‑node distance up to 100 meters with Cat5e Ethernet cable.

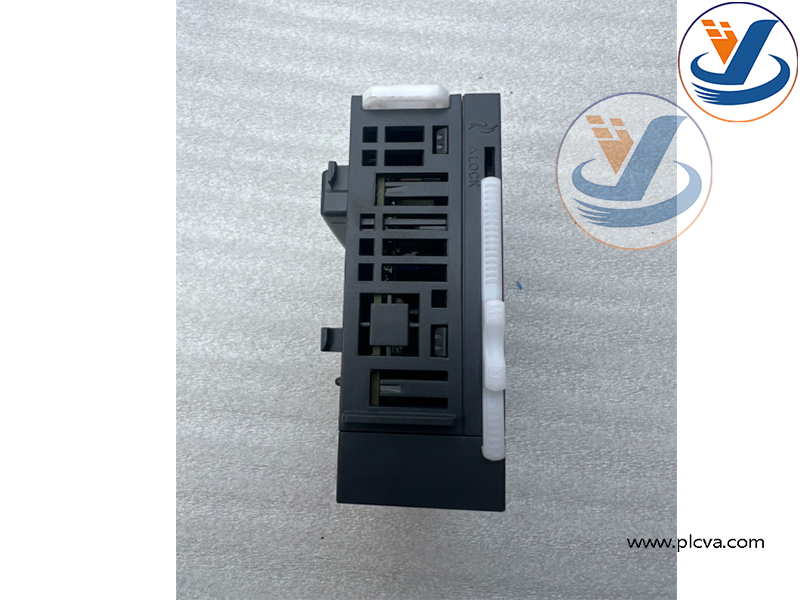

Inovance AM600‑RTU‑ECT EtherCAT Remote Bus Coupler Communication Module

1. Real‑time industrial bus service: Supports CoE protocol (PDO/SDO); distributed clock synchronization for I/O data; minimum synchronization cycle 1250 μs, ensures deterministic data exchange between main CPU and remote field‑side I/O modules.
2. Signal‑data forwarding: Transmits field‑side DI/DO, AI/AO signals from remote expansion racks back to AM600 main controller; forwards control instructions issued by PLC CPU to remote I/O units.
3. Status diagnosis & indication: Equipped with RUN, BF, SF LED indicators; displays module running state, bus‑communication fault and expansion‑module abnormality for quick on‑site troubleshooting.
4. Industrial‑grade hardware: Powered by 24 VDC; DIN‑rail mounting; strong anti‑interference performance, adapts to harsh industrial cabinet environment.plcva.com

Note: This is remote‑expansion coupler module, not PLC CPU main unit; must cooperate with AM600‑series PLC main controller to operate normally.plcva.com

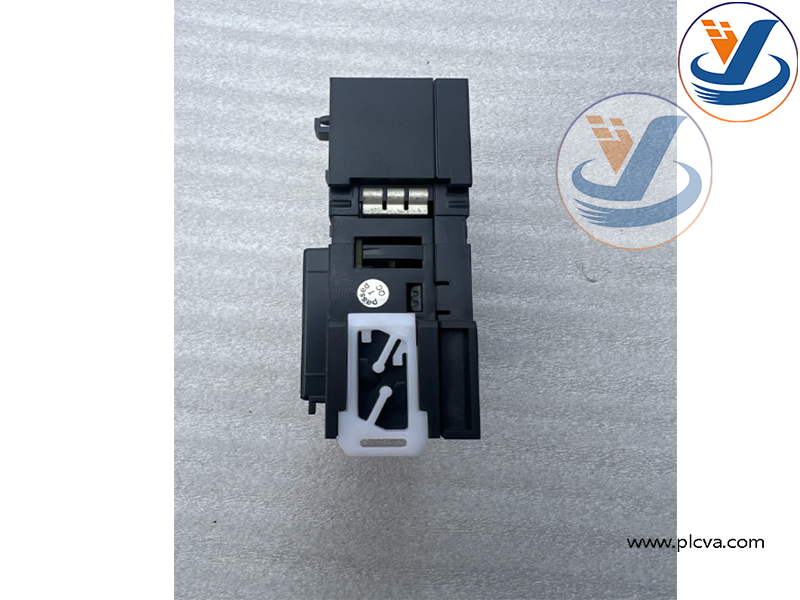

Inovance AM600‑RTU‑ECT EtherCAT Remote Bus Coupler Communication Module

Applications & Usage

1. Decentralized‑layout automation equipment: Used for production lines, assembly machines, packaging machinery; realizes distributed‑I/O layout when field‑sensors and actuators are physically far from main electrical cabinet.

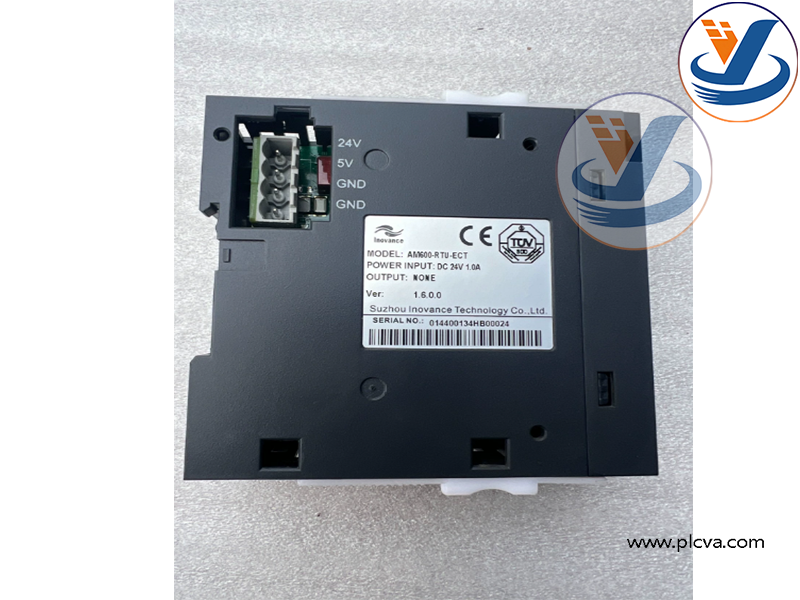

Inovance AM600‑RTU‑ECT EtherCAT Remote Bus Coupler Communication Module

1. Large‑scale‑I/O system expansion: Expands I/O quantity for AM600 medium‑size PLC; applicable for multi‑station automation machines with scattered signal points.
2. EtherCAT‑bus‑based motion‑control system: Matches with Inovance servo drives and EtherCAT‑slave field devices for whole‑machine control of processing equipment.
3. Machine‑tool & special‑purpose machinery: Applied for CNC auxiliary‑axes, automated test‑equipment, logistics‑handling machinery; reduces field‑wiring workload via distributed‑I/O architecture.plcva.com
4. Spare‑part replacement: Spare communication coupler for existing production‑facility AM600‑series PLC systems for equipment maintenance and retrofit.

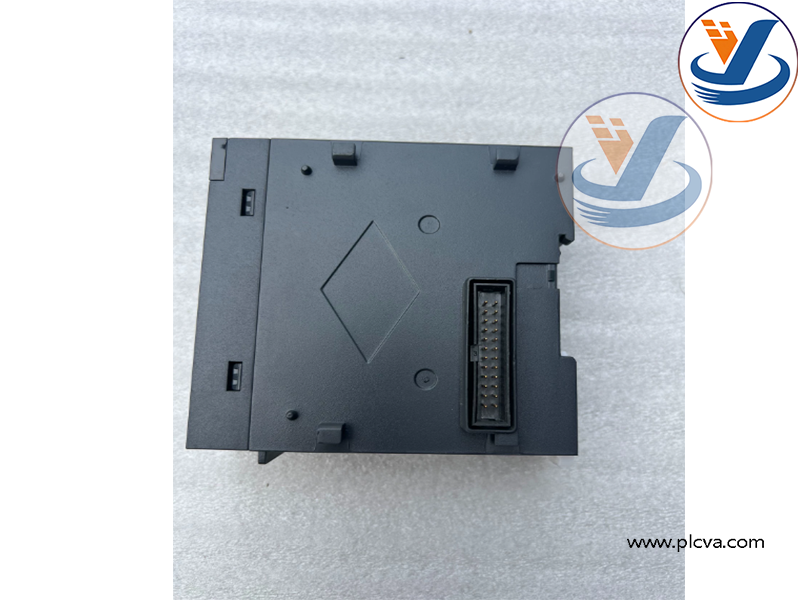

Inovance AM600‑RTU‑ECT EtherCAT Remote Bus Coupler Communication Module

Inovance AM600‑RTU‑ECT EtherCAT Remote Bus Coupler Communication Module
